7.10 Manual Mode
While in Manual Mode, the injection rod, main cylinder and drive
spindle motor may be controlled independently.
NOTE: While in manual mode any errors will not halt the
operation of the motors. Refer to Fig. 13.0.
1. Press and hold the Mode button for 3 seconds to select
Manual mode
2. Press the Power (-) button to activate the injection rod (the
injection rod will move up).
3. Press the Mode button (+) to activate the motor (the drive
spindle will rotate).
4. Press the Setup button (↵) to activate the main cylinder (the
cartridge holder will move up and down).
ACTIVATE
INJECTION
22
3.
Remove the retaining collar plunger assembly (Fig. 2.0,
16) by turning it clockwise.
4.
Place the retaining collar plunger assembly on the side
bracket (Fig. 2.0, 1).
5.
Turn the cartridge kit clockwise to remove it from the
drive spindle.
6.
Pull the cartridge kit out of the cartridge holder.

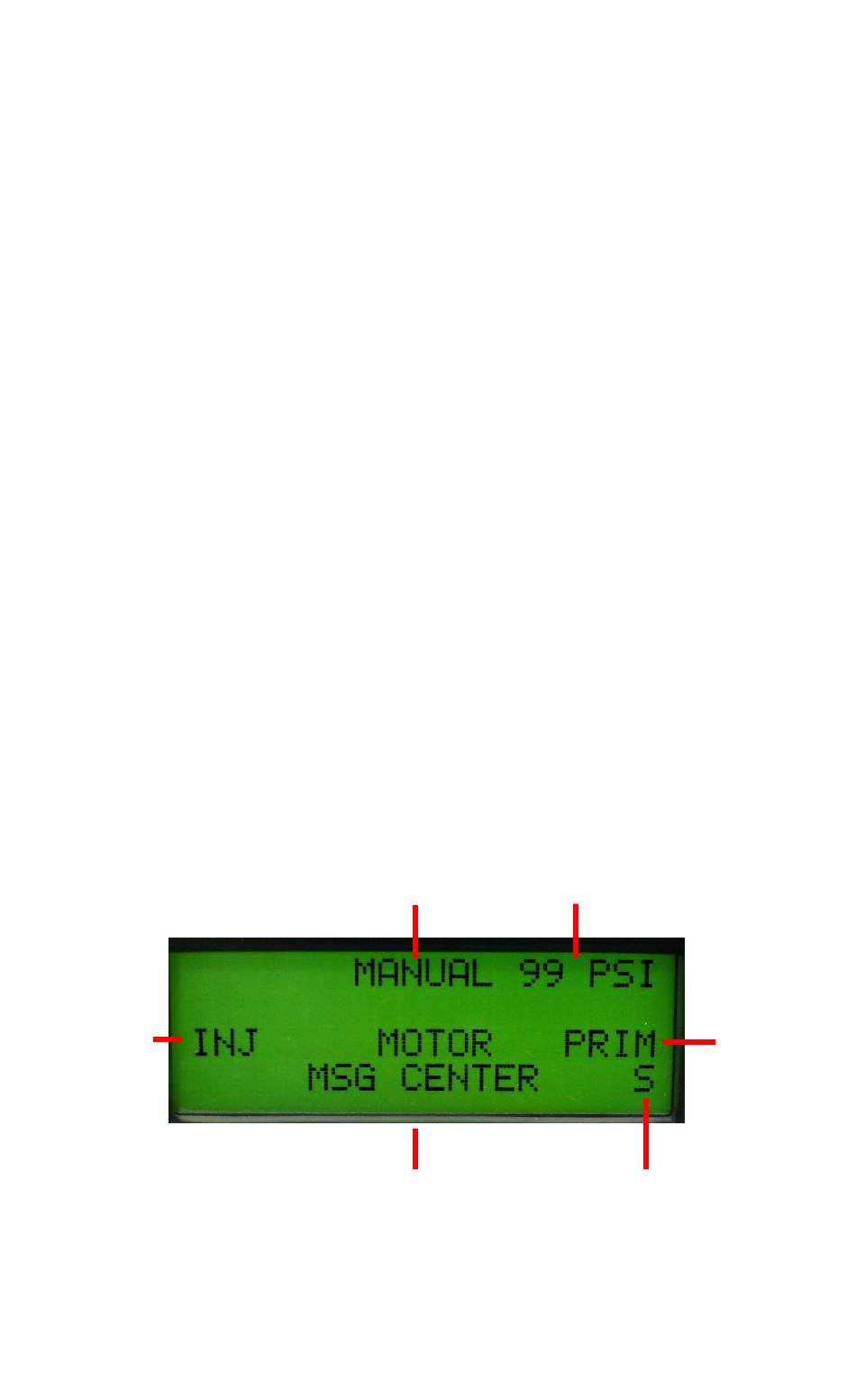

Figure 13.0: Manual Mode Screen
MODE
ACTIVATE
MOTOR
PRESSURE
SAFE TO
RUN
ACTIVATE
MIX CYCLE
