FUSE
VOLTAGE
HOLDER
SELECTOR
SWITCH
7.2
Plastic Tray Installation
The unit is shipped with a plastic tray to prevent any spilled
material migrating into the main control panel. Make sure to
install the plastic tray onto the base plate by aligning the four tabs
into the base plate holes.
7.3
Spindle and Spindle Extension Installation
The unit is shipped with the spindle uninstalled. To install the
spindle, align it on the motor drive shaft then turn in the
clockwise direction.
NOTE: The spindle is designed to mix cartridge kits with an 8
(203 mm) mix rod. To mix cartridge kits with 6
14
FUSE
HOLDER
SCREW
DRIVER

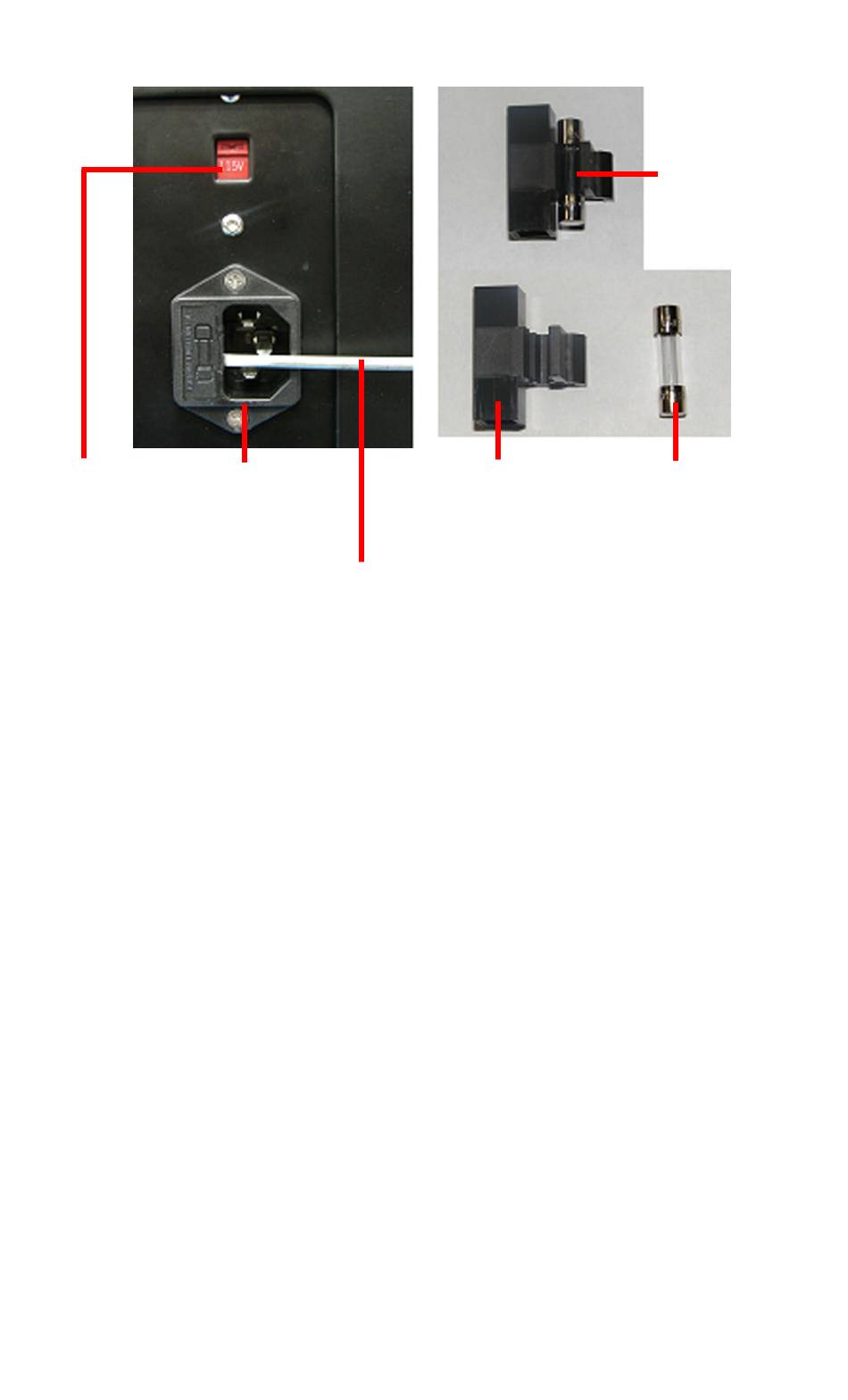

Figure 6.0 Fuse
FUSE
HOLDER
WITH FUSE
INSTALLED
FUSE
''
(152 mm) mix
''
