12.
CARTRIDGE HOLDER INSTALLATION
Refer to Fig. 15.0 and 16.0
The TS6500CIM-6 is setup to mix the 6.0 oz. (160 ml) kits. To mix the
2.5 oz (60 ml) or 8.0 oz. (220 ml) kits the cartridge holder needs to be
re-installed at the correct mounting locations as shown in Fig. 15.
MOUNTING
LOCATION
2.5 OZ (60 ml) KIT
MOUNTING
LOCATION
6.0oz (160ml) KIT
MOUNTING
LOCATION
8.0oz (220 ml) KIT

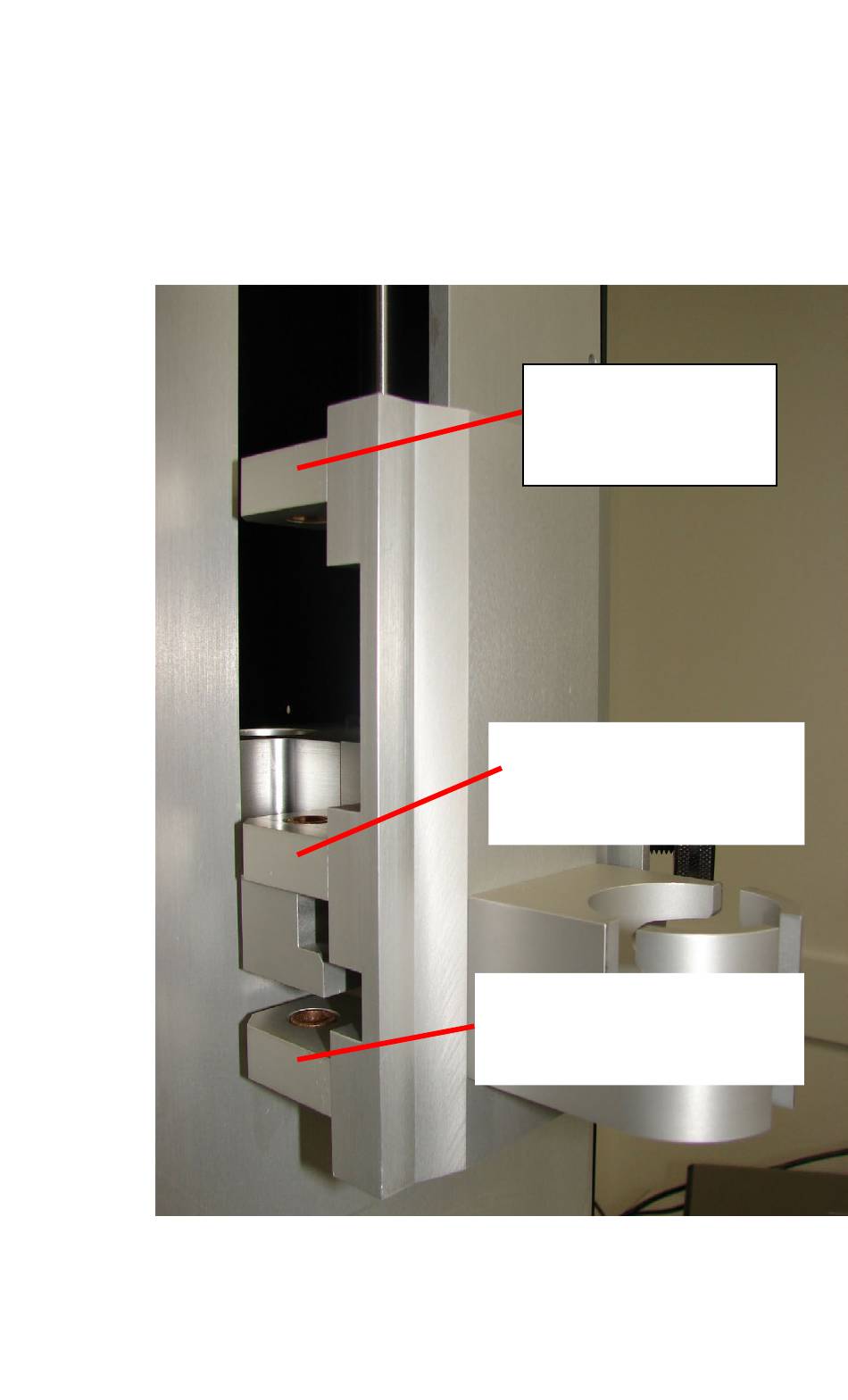

Figure 15.0 Mounting Locations
26
