The cartridge holder can be installed in a few simple steps:
1. Pull the release knob and push the fluid level sensor assembly to
the left.
2. Loosen the locking screw by turning it counterclockwise.
3. Rotate the cartridge holder outward and pull it up to remove it
from the machine.
4. Install a new cartridge holder in the reverse order.
5. Pull the release knob to rotate the fluid level sensor assembly back
into position.
RELEASE
KNOB
FLUID LEVEL
SENSOR
27
CARTRIDGE HOLDER

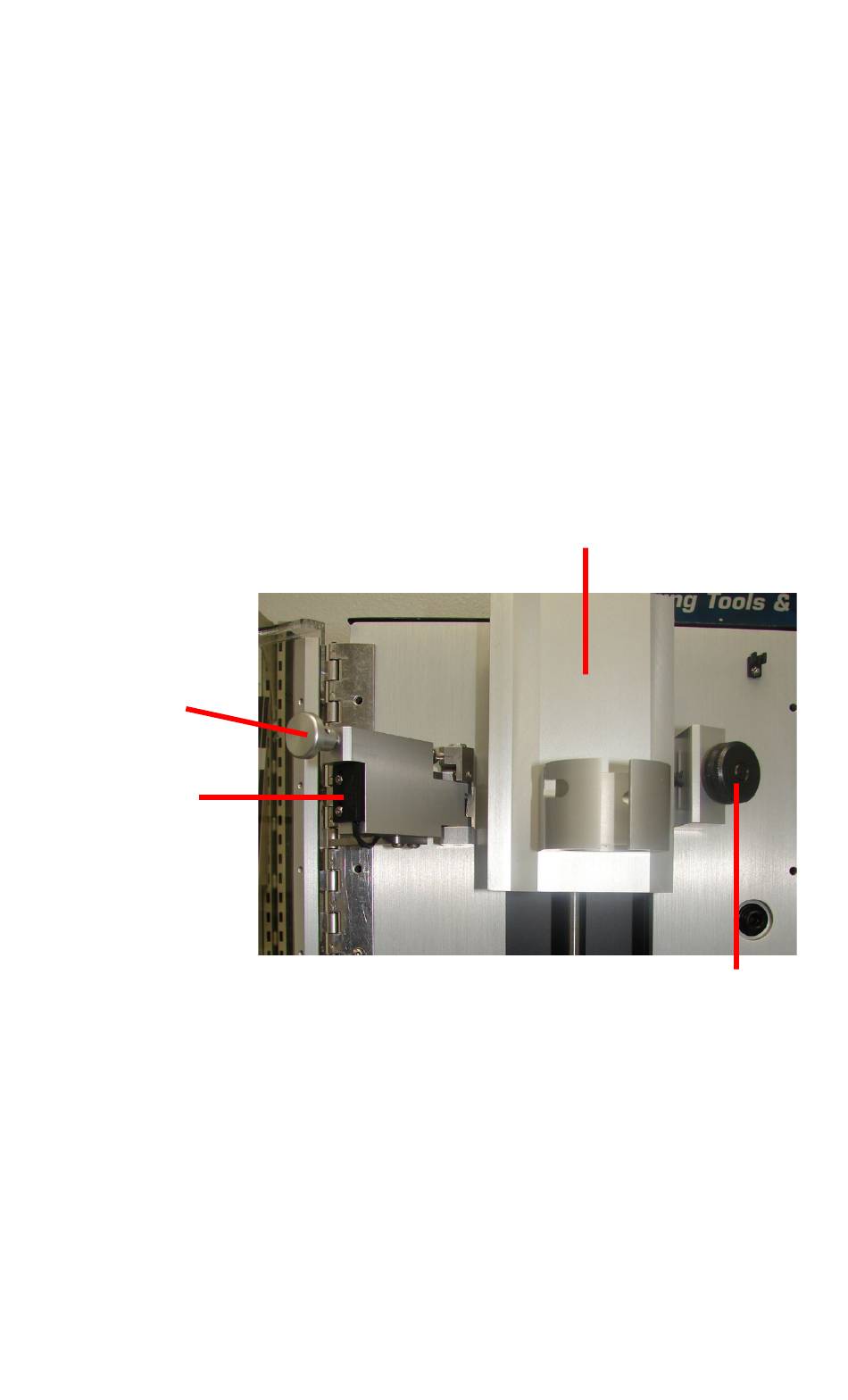

Figure 16.0: Cartridge Holder
LOCKING SCREW
