rods, the spindle extension needs to be installed. Follow the
instructions below to install the spindle extension:
SCREWDRIVER
SPINDLE ASSEMBLY
WRENCH
SPINDLE
ASSEMBLY
SPINDLE
EXTENSION
1.
Place the wrench on the motor shaft (beneath the spindle).
2.
Place a screwdriver between the two locking pins of
the spindle.
3.
Hold the wrench and turn the screwdriver counterclockwise
to unscrew the spindle assembly.
15

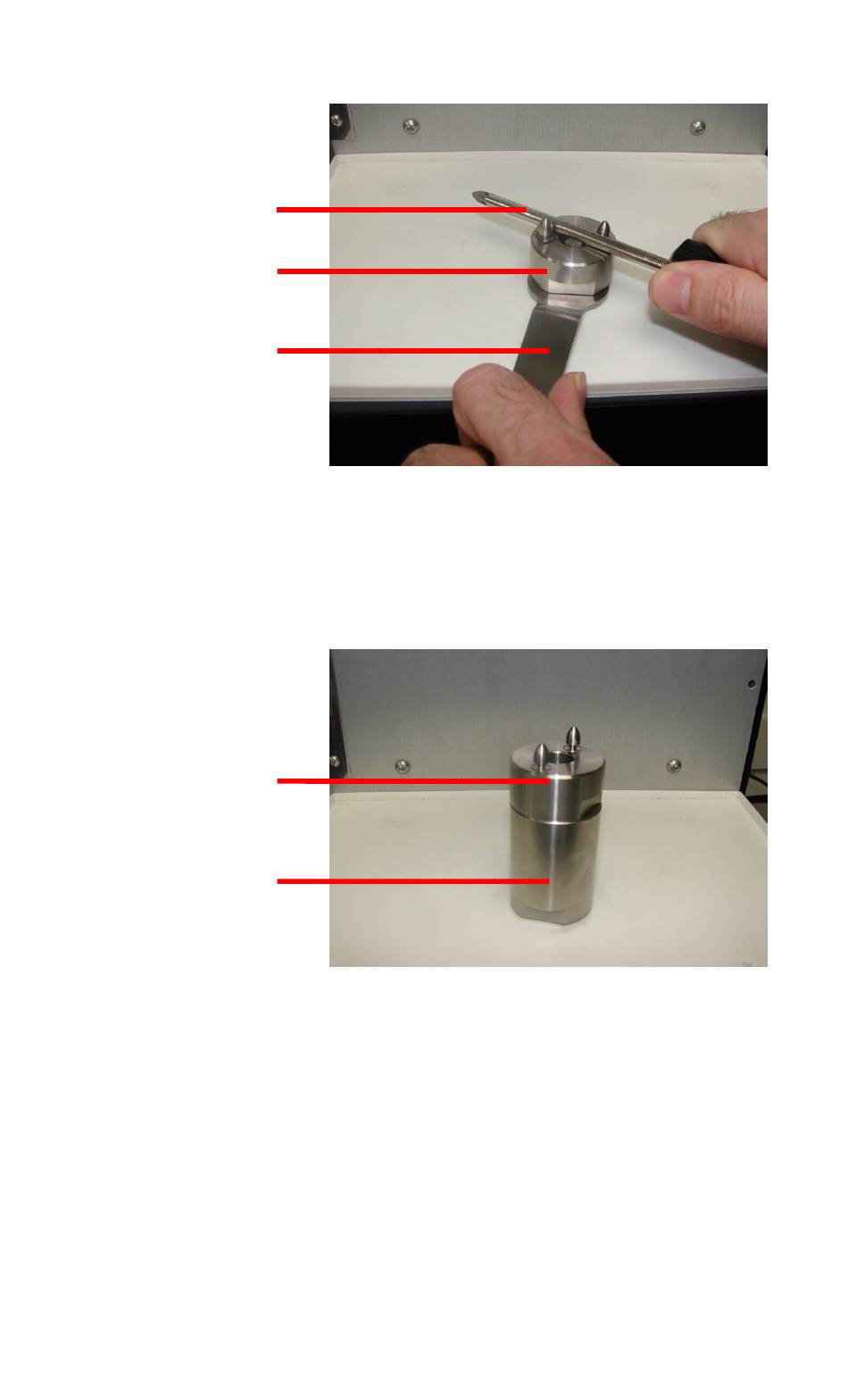

Figure 7.0. Remove Spindle Assembly
Figure 8.0. Spindle Assembly with Extension
