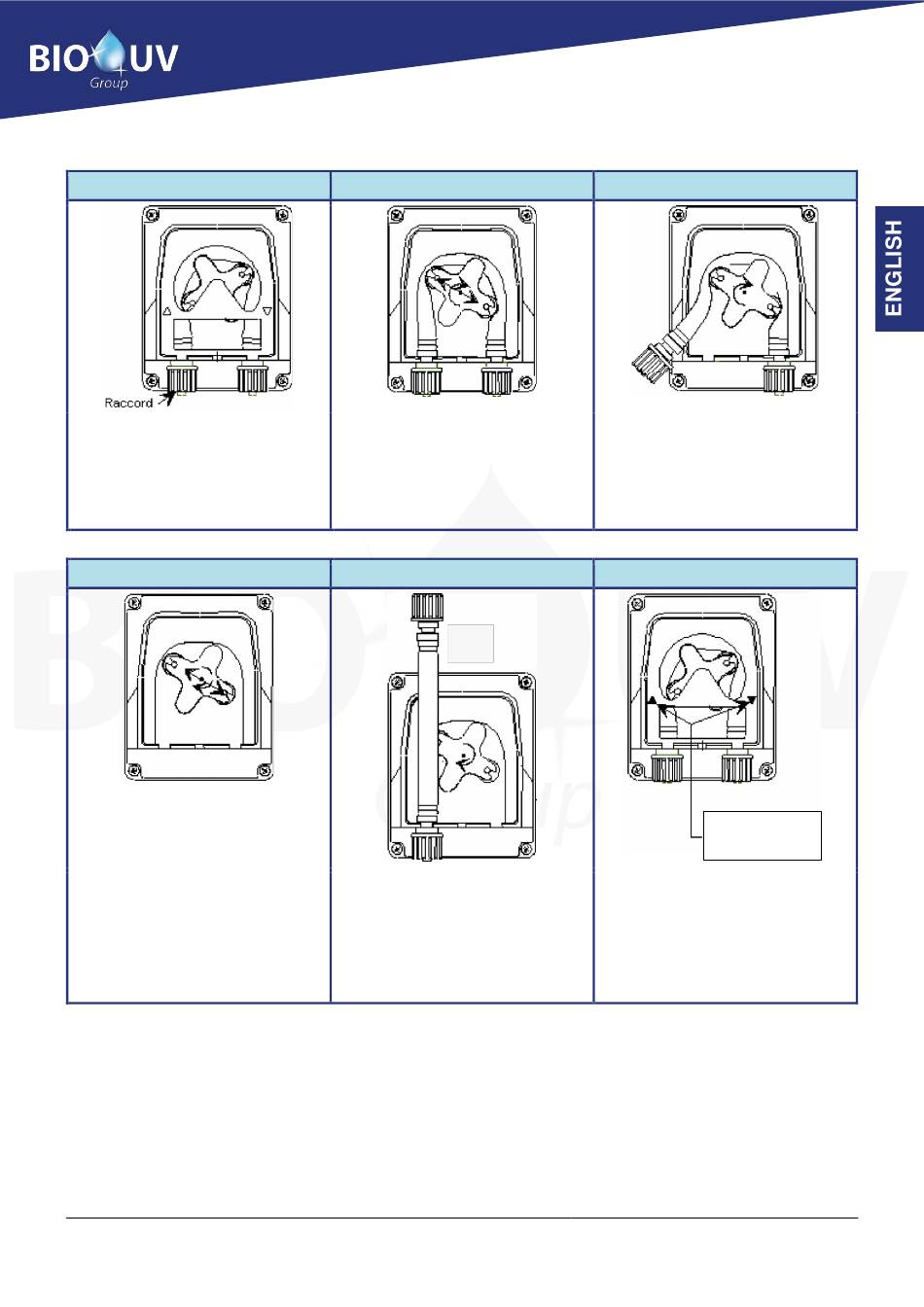

M. CHANGING THE SANTOPRENE TUBE
1
Unclip the cover by pulling up the left
connection
5
Position the roller holder diagonally
from left to right by rotating it in the
direction of the circular arrow
Combipool-pHRedox_(Multi) - DOC015452 - Ind. A03 - 23/12/2020
Marque, Modèles et Brevets déposés - Produits exclusifs
2
Position the roller holder diagonally
from left to right by rotating it in the
direction of the circular arrow
6
Insert the left connector in its casing
and pass the tube under the roller
holder. Rotate the roller holder in the
direction of the circular arrow and at
the same time, insert the tube into
the pump head until it reaches the
right connection
3
Completely remove the left
connection by pulling it outwards
and then rotate the roller holder in
the direction of the circular arrow to
release the tube until it reaches the
right connection
7
Arrows indicating
liquid direction
Place the cover on the pump using
the arrows () as guides and then
press firmly on its surface until it
clicks
