2. Electrical wirings:
1. Connect the dosing pump to the filtration box as indicated here below (coil of the pump contactor in 220V):
Filtration
box
Earth= Green/yellow, L = Phase = Brown (220-240Vac), N = Neutral = Blue
2. Connect the "INPUT FLOW" control cable on A1 / A2 terminals of the coil contactor
3. Connect the "Power supply" power cord to a 220V wall socket.
Combipool-pHRedox_(Multi) - DOC015452 - Ind. A03 - 23/12/2020
Marque, Modèles et Brevets déposés - Produits exclusifs
IMPORTANT:
•
The wirings must be performed by a qualified technician.
•
A suitable 30mA differential circuit breaker must be installed in head of
the filtration box
•
Check that the power supply of the Combipool pH/Redox case is 220 V.
•
The power of the dosing pump must be controlled by the filtration => The
"INPIUT FLOW" control cable must be connected to the coil of the pump
contactor (see wiring diagram below).
Before making connections, cut power supplies.

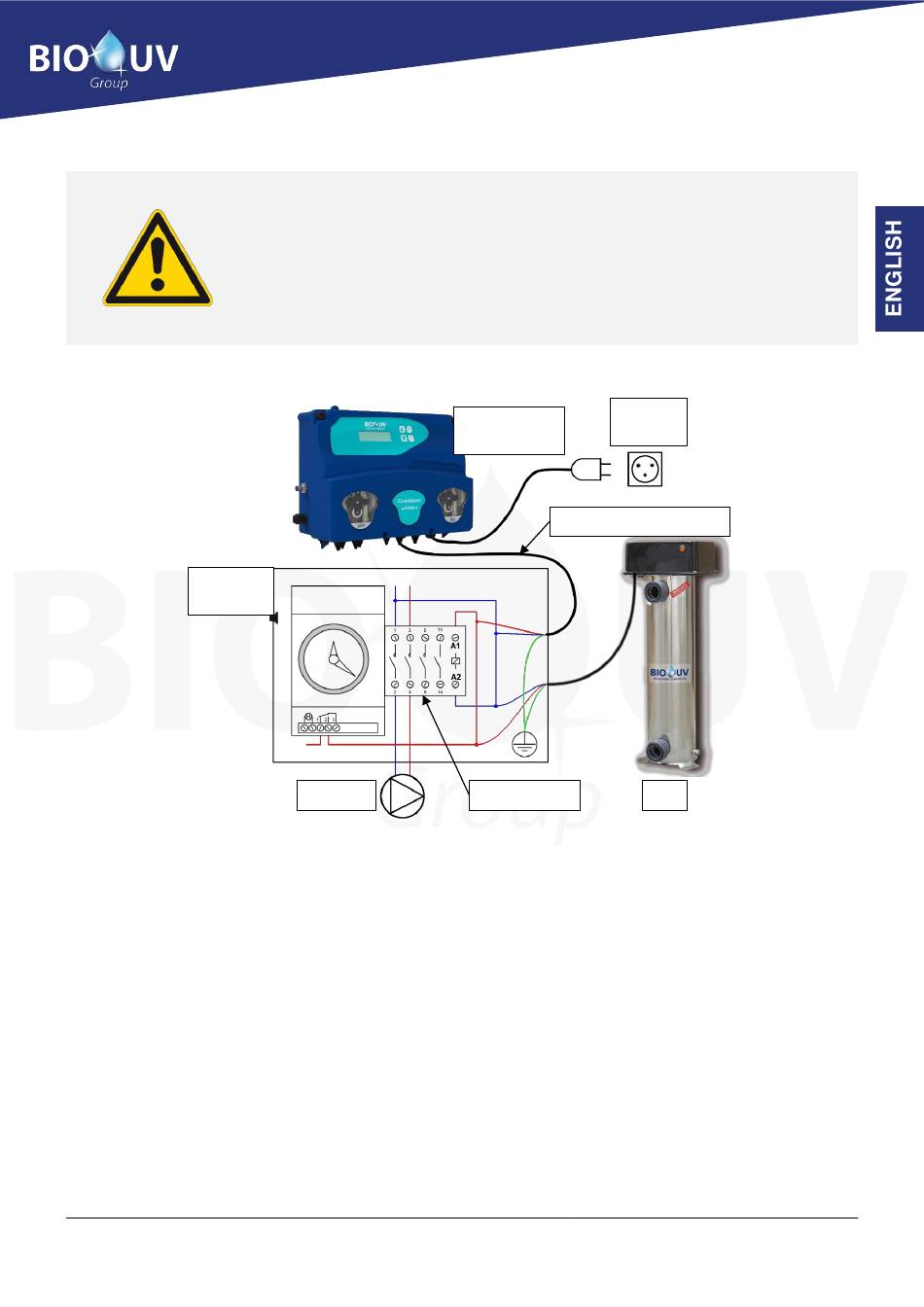

Timer
Pump
220V
Combipool
socket
pH/Redox
Control cable
Contactor
UV
Copyright BIO-UV
