Assembly
Educt supply & residue draining
➜ Required tube: PTFE, transparent (included, sold by the meter).
➜ Position the educt container and the residue container in the place of use and cut
the two pieces of tube to the required lengths between the container and valve
matrix.

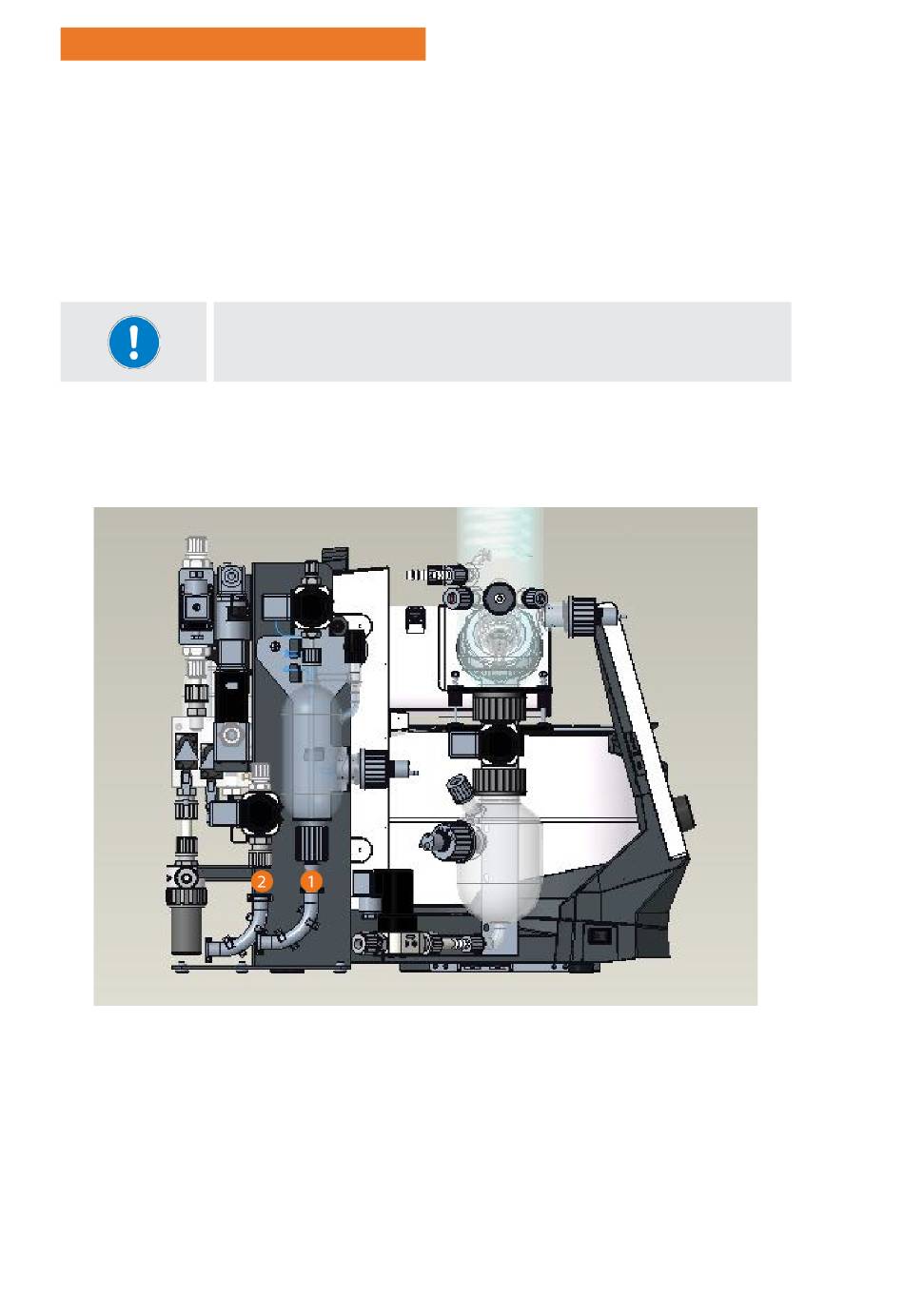

➜ Fit the tube ends, which are plugged into the valve matrix, in the angle clips
supplied for this purpose (see figure, Item [1] and [2]).
Make sure that the free end of the tube protrudes from the
angle clip far enough to ensure a secure connection to the tube
connector!
➜ Educt supply: Tube connection [1] is used to supply the system with educt. Route
the tube [1] from the educt sensor vessel into the educt container.
➜ Residue draining: Tube connection [2] is used to drain the residue from the system.
Route the tube [2] from the residue valve into the residue container.
