Assembly

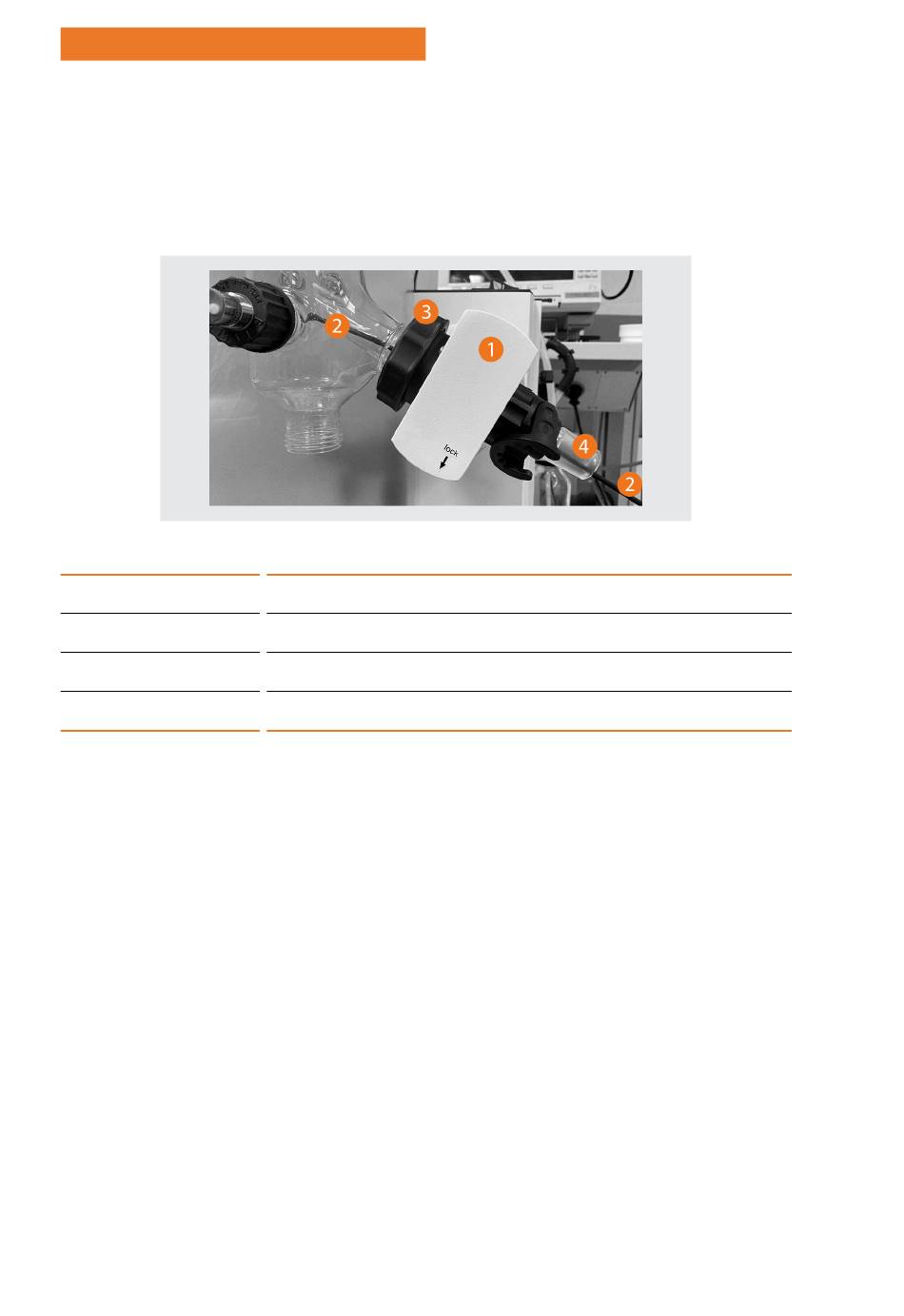

Condenser assembly
➜
Feed the lance of the level sensor [2] through the vapor tube [4] of the rotary
evaporator.
➜
Position the condenser on the drive unit [1] of the rotary evaporator and fix the
condenser with the union nut [3].
1
2
3
4
Component / Function
Rotary evaporator drive unit
Level sensor S4, inserted in the vapor tube
Union nut
Vapor tube
79
