Assembly

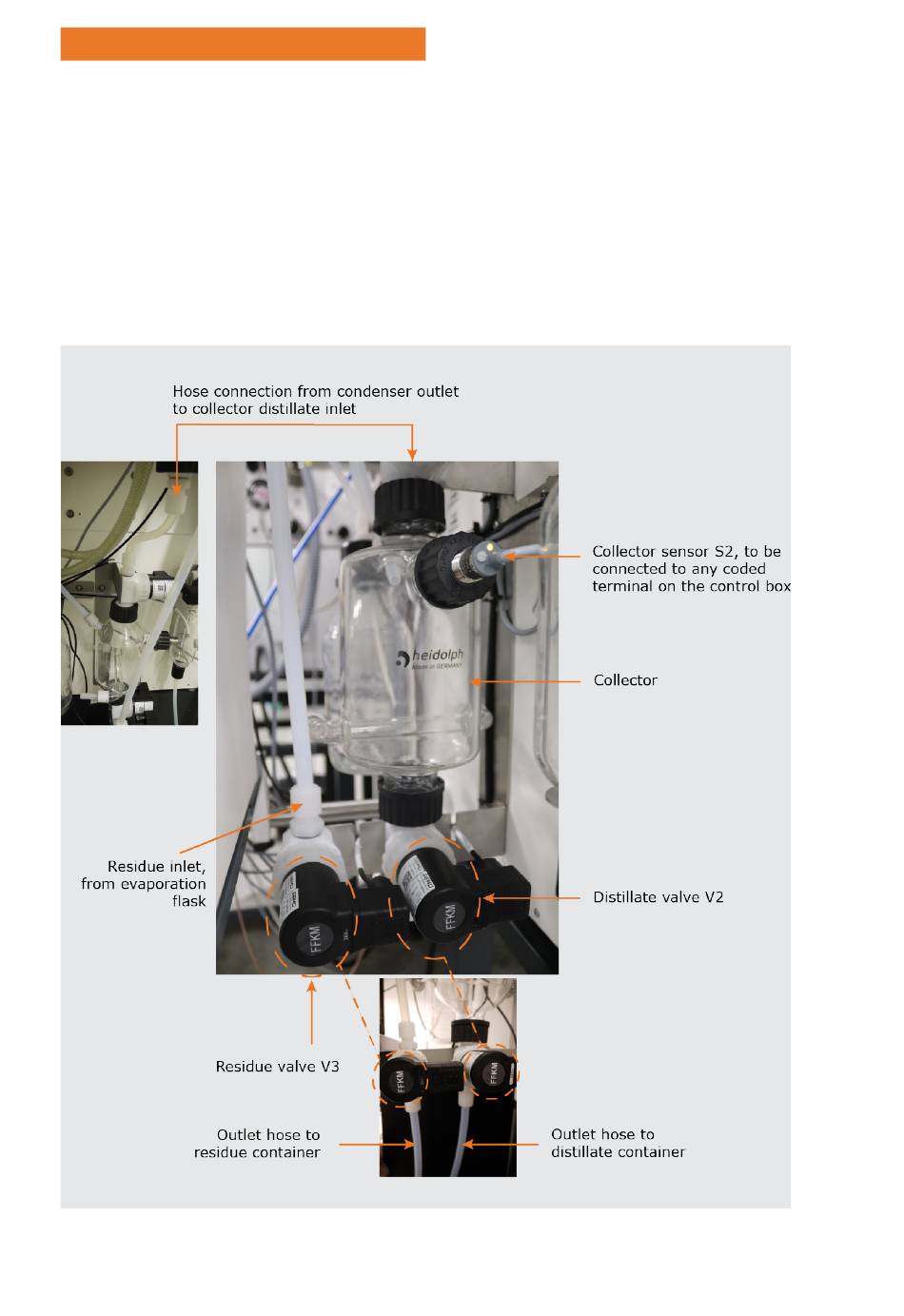

Tube connection evaporation flask – condenser – collector
unit – residue container – distillate container
➜ Connect the residue drain tube, coming from the evaporation flask to the inlet of
valve V3.
➜ Attach the tube to the residue tank to the outlet of valve V3.
➜ Establish the tube connection between the condenser and the distillate inlet of the
collector.
➜ Attach the tube to the distillate container to the outlet of valve V2.
