Assembly
Residue draining, valve V3 – condenser
Only variant with residue draining. Variant without residue draining
does not have valve V3.
➜ Required tube: PTFE, transparent (included, sold by the meter).
➜

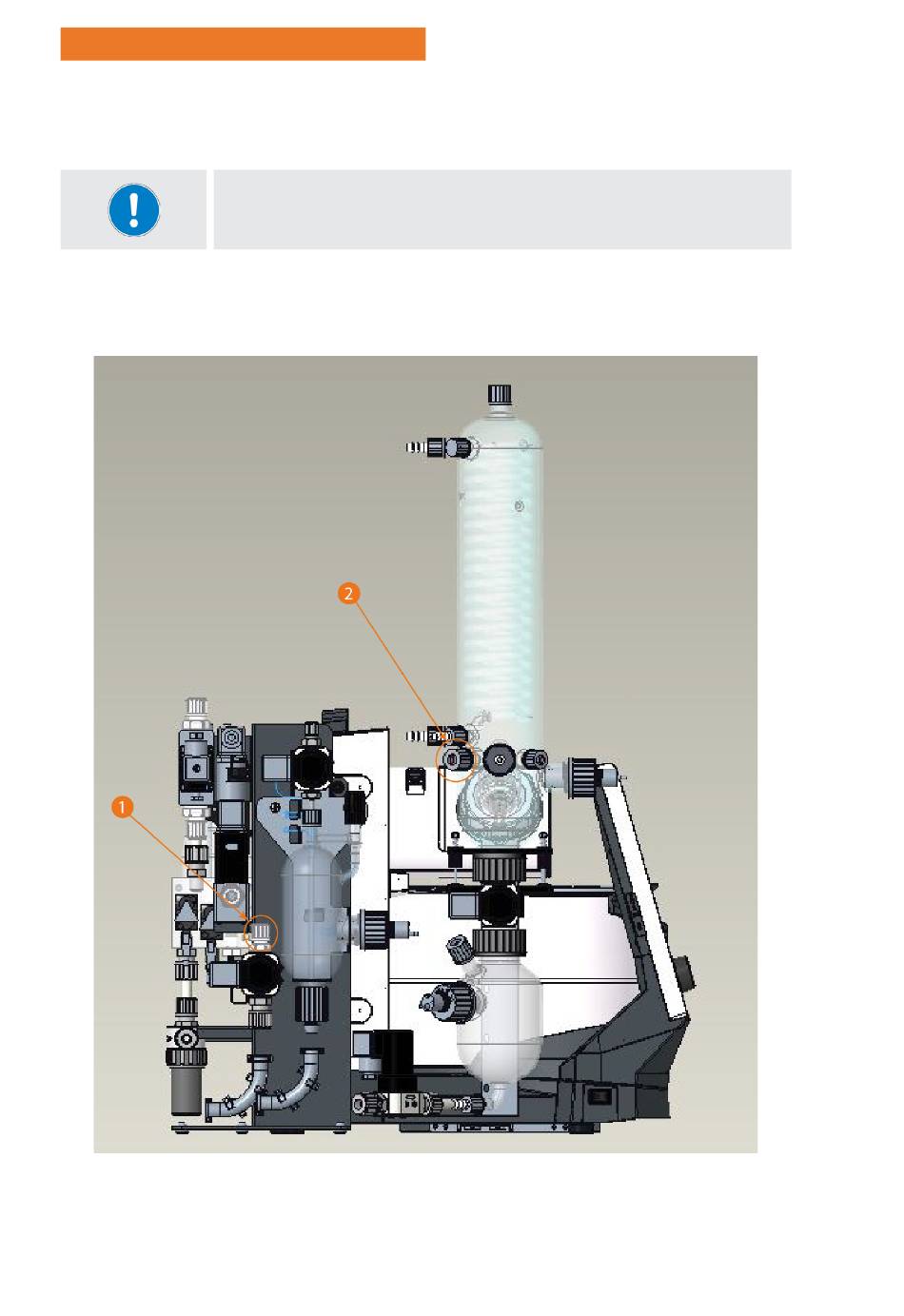

Connect the distributor unit of the residue valve V3 [1] to the bottom left-hand tube
connection of the condenser [2].
