IST-1424.CE02.02
Pressing
on the relevant item or simply press key
ENTER
what to do before you start the upgrade procedure.
First, move the jumper JP3 in position "CLOSED" and then insert
the SD card into its slot
Then press
to start the update, or press
ENTER
SD-CARD
slot
The update can also be done without going into the menu, simply restarting the unit, after
performing the above operations
Only if the above procedure is correct the unit will restart. Otherwise the
system is not continuing.
The control unit checks that the SD card this card is a valid file for the update. If there was
more than one, the file is loaded with the latest version.
When the Unit restarts, it starts the automatic update of firmware, the
duration of which is about 3 to 4 minutes. This phase is indicated by a
flashing yellow LED and a display message. -----------------------------------
If there is no any file in the SD Card, or there was a previous version of
the firmware or equal to the one already installed, the control panel will
report it and then reboot without upgrades. ------------------------------------
If the SD Card is unreadable, the panel will report it and then reboot
normally. ---------------------------------------------------------------------------------
If the SD Card, it had not been inserted or cannot be detected, the
control panel will report it and then reboot normally.
Check that you have correctly inserted the card, and if necessary check
its operation using the test.
(see menu Service
Electric Test
After the upgrade, a message will confirm that the transaction is
completed, in addition will be switched on for 3 seconds, the green LED
and buzzer. Then the panel will restart in normal operation. ----------------
Replace the jumper JP3 in position "OPEN", if not, every time
you restart, and the panel will check if there is an update file on
the SD card.
If the update was not successful, the display informs you that the
operation has failed, and for 3 seconds to turn on, the red LED and
buzzer. Then it will automatically restart in normal operation, but with
the previous firmware version. ----------------------------------------------------
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P / User Manual
(see below figure
6).
to go back. -------------
ESC

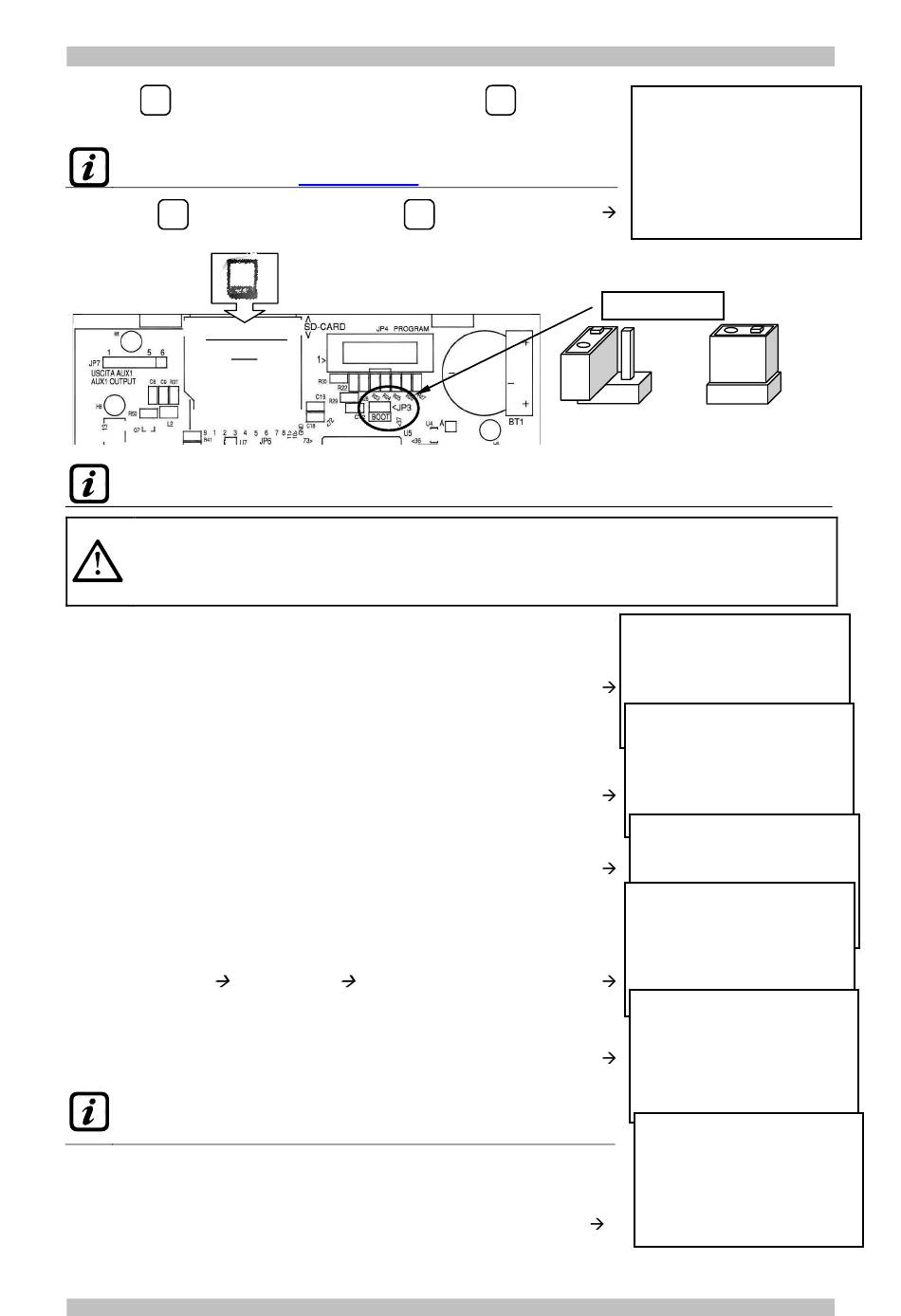

Fig.6- Board into housing cover
SDCard). -----------------------------
1
, you will see
UPDATE FIRMWARE
JUMPER JP3
JP3 OPEN
IN PROGRESS
JUST PRESENT
NOT READABLE
Pag. 38/50
INSERT IN THE
CONTROL UNIT
THE JUMPER JP3
THE SD CARD
AND PRESS ENTER
JP3 CLOSED
WAITING
UPDATE
FIRMWARE
MISSING
OR
SD CARD
SD CARD
MISSING
UPDATE
SUCCEEDED
UPDATE
FAILED
