IST-1424.CE02.02
• Each ZONE can be set according to operating LOGIC:
The logic used are the typical logic functions (AND, OR), management of adjacent sensors
(CORR.CON, CIRC.CON). Note that PARK-ITA is a function only for Italy (Italian Ministerial Decree 01/02/1986).
• Each INPUT (Sensor) is self-protected and has a FAULT signal:
All sensors inputs are protected against short-circuit or wire breakings. If a short-circuit occurs,
the power supply to that input, is automatically stopped (all others continue to work properly). At
the same time, the FAULT signal is activated.
• Each Sensor can be configured in two ways:
Preconfigured Setup: Here you can choose one of the models of our production,
on page
41), which is then automatically set in the configuration recommended by the respective
thresholds and relay outputs. Is enough set the output number (relay) to complete the
configuration. The manual changes are, however, permitted.
General Configuration: Here you can configure any type of sensor (compatible or a new model
not yet listed), manually entering all parameters.

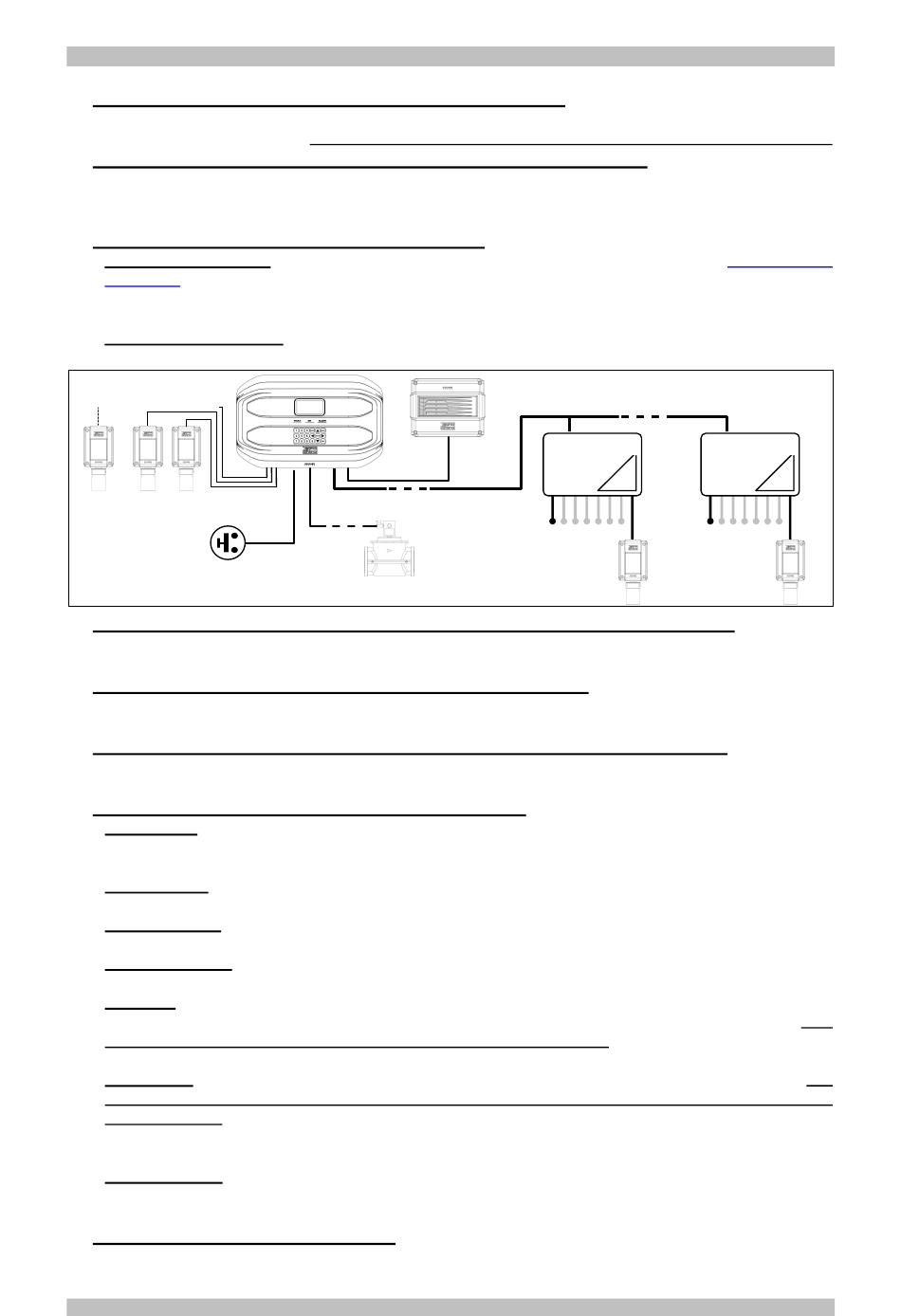

GAS DETECTORS
S8
S2
S1
AUX INPUT
PUSH-BUTTON
• The AUX input is configurable and can be associated with a relay output:
-
Can be configured to activate one of the available relays and can be used by devices with NO or
NC contact outputs (gas sensors with a relay contact, smoke sensors, buttons, etc.).
• The CE424 can manage up to 5, 9, 17 or 25 Alarm relays:
Each sensor has three alarm levels (Threshold 1, Threshold 2 and Threshold 3) and a FAULT,
freely addressable to any relay output.
• The alarm thresholds can be configured with special mode of operation:
For use in car parking "PARKING EN" (EN 50545-1) or to the workplace, such as exposure limit
value TLV.
• Each output (relay) can be configured as follows:
Silenceable: the output is disabled for the Silence time, when RESET is carried out and the
-
sensor is above the set threshold. This function can, for example, be used for the outputs
connected to audible warning devices.
Silence Time: is the time, adjustable from 0 to 300 seconds, so Silenceable output (e.g. relay connected
-
to a siren) is disabled when the RESET is performed and a sensor is above the set threshold
Hysteresis ON: is the delay, adjustable from 0 to 300 seconds, of the relay, associated with an alarm
-
threshold.
Hysteresis OFF: is the delay, adjustable from 0 to 300 seconds, of the relay to return to normal
-
condition, when it ends the alarm.
Time ON: is adjustable from 0 to 300 seconds. This function can only be used if you want to stop the
-
alarm output after a finite time, even if the sensor remains above the alarm threshold set (This
function cannot be used in conjunction with Hysteresis OFF delay). For example you can use it
to enable devices that cannot be powered down, or to send a pulse to a phone dialer.
Memorized: the relay remains in alarm, even if the sensor returns below the threshold (this
-
function does not work if the Time ON or into Hysteresis OFF has already been inserted a value
other than zero), to return to normal conditions must be done RESET. Serves, for example, to
prevent the accidental or unauthorized resetting of a block valve of the gas, without first checking
the cause of the alarm.
Positive Logic: the operation of the relay can be set normally activated or in positive logic,
-
therefore, if the relay fails, or is completely out of power, automatically moves into the Alarm
position, the NC contact becomes NO.
• The CE424 have a BUZZER inside:
The internal Buzzer sounds a Beep every touch of the keyboard. It can also be set to sound in
case of Fault and / or Alarm.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P / User Manual
SE301
COM1
1
RS485
S9
GAS VALVE
Pag. 6/50
(See list in Table
CE380UR
CE380UR
2
S16
S17
GAS DETECTORS
S24
