IST-1424.CE02.02
THE FOLLOWING INSTRUCTIONS DESCRIBES ALL THE CENTRAL SYSTEM
SETUP PROCEDURES AS WELL AS THE INSTALLATION PROCEDURES TO
BE EXECUTED ONLY BY AUTHORISED AND EXPERIENCED PERSONNEL.
CE424P INSTALLATION
WARNING: The CE408 is to be installed in an area protected from direct sunlight and rain. Please note
that for safety the CE408 is to be installed in safe areas where there are present or can form
flammable atmospheres and concentrations exceeding 24 % volume oxygen.
CLEANING: To
clean the exterior of the enclosure, use a soft damp cloth with water, do not use solvents
or abrasive cleaners.
The CE424P should be mounted on the wall using 4 screws and wall plugs (Ø 6 mm) or 4
POSITION:
M4 screws and nuts, if the wall is not in masonry. The housing's base must be fixed through the 3
holes, one in the center and the other in the bottom corners (Fig.2). The electrical connections should
be executed all on the housing base.

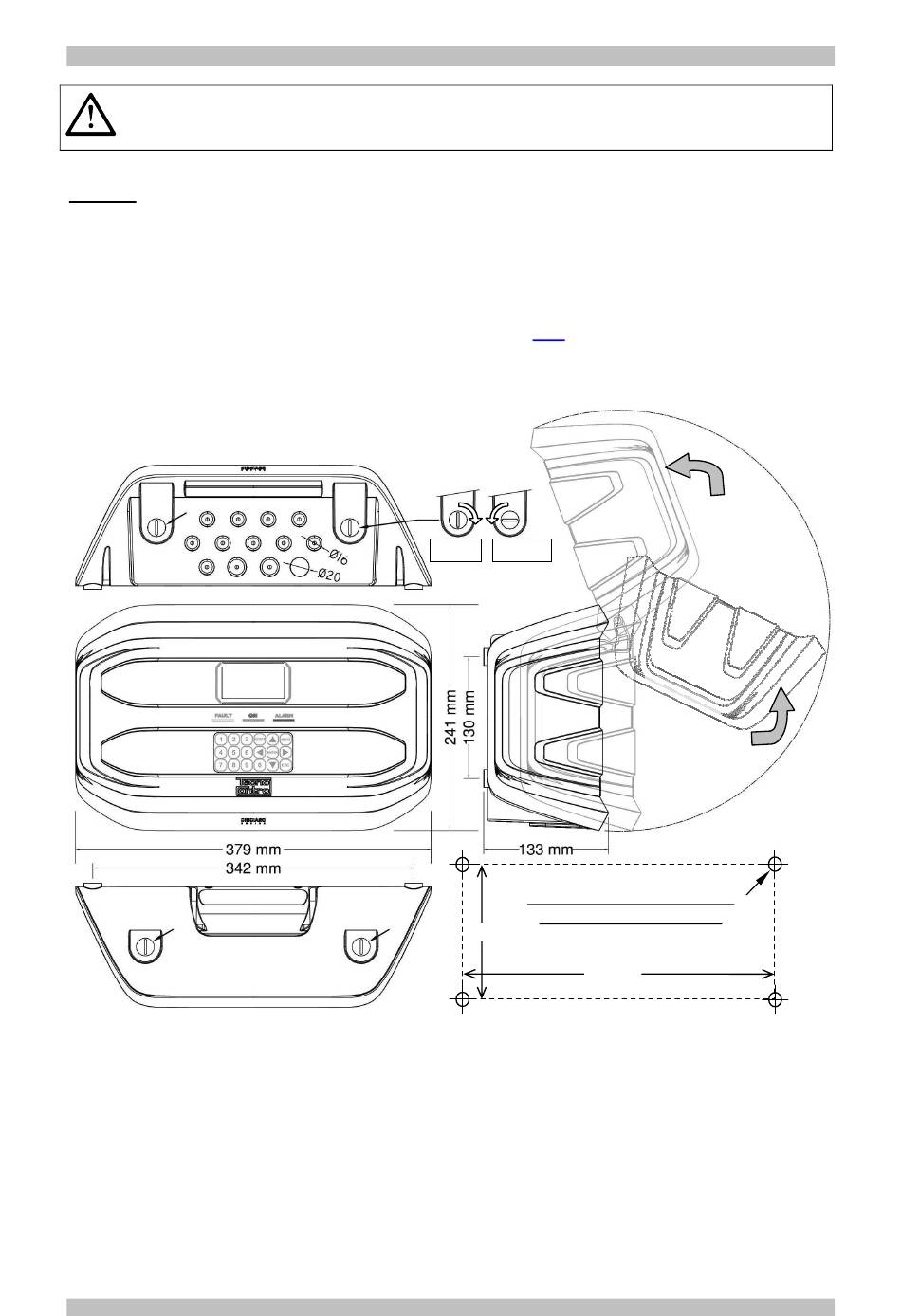

Fig 2 – CE424P Dimensions and Template for wall mounting
The cover unlocks (with a coin) by turning 90° the 4
buttons located above and below the enclosure. It is
opened by pulling and then rotating it up until it rests at the
base.
The housing has two sliding internal hinges. To open the case, you must:
1- With a coin or screwdriver (blade 10-12 mm), unlock the 4 closing buttons, turning them 90 °
clockwise.
2- Gently, pull the cover outwards of about 4 cm and then rotate it up and place it on the upper edge
of the base housing, in this way remain in the open position.
3- To close the housing act in reverse order. Pay attention that the cover and the locking mechanism
enter into place. Finally block 4 buttons, turning 90 ° counterclockwise. To facilitate the closure,
press on the lid, the buttons, which are eccentric, will bring the lid to adhere to the gasket.
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734
CE424P / User Manual
OPENS
130 mm
OPENING-CLOSING THE HOUSING
CLOSES
TEMPLATE FOR WALL MOUNTING
4 holes for wall plugs Ø 6mmn.
342 mm
Pag. 8/50
