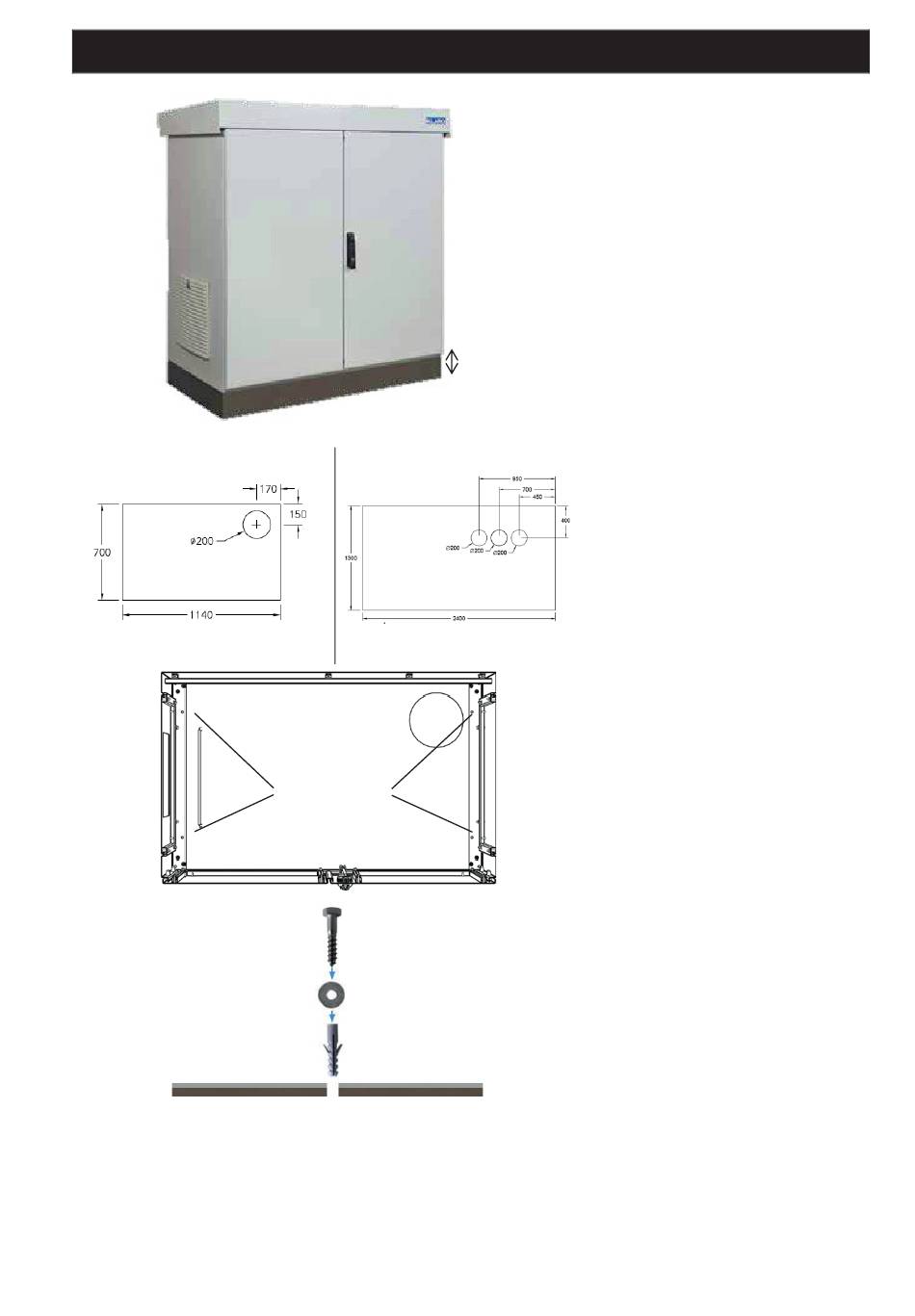

6 Assembling the exterior switch cabinet
Before installation a strip or solid foun-
dation must be prepared.
See page 35 for foundation plans.
250 mm
When the foundation is being cast, the
drawn dimensions must be adhered to,
particularly the position of the hole(s)
which the hoses will be led through
later.
Exterior cabinet XL
Exterior cabinet XXL
There are four M10 holes in the cabinet
base. These holes must be continued in
M10 holes
the concrete foundation below.
Inserting the M10 dowels into the holes.
Securing the switch cabinet with the aid
of the four M8 bolts (together with
washers).
