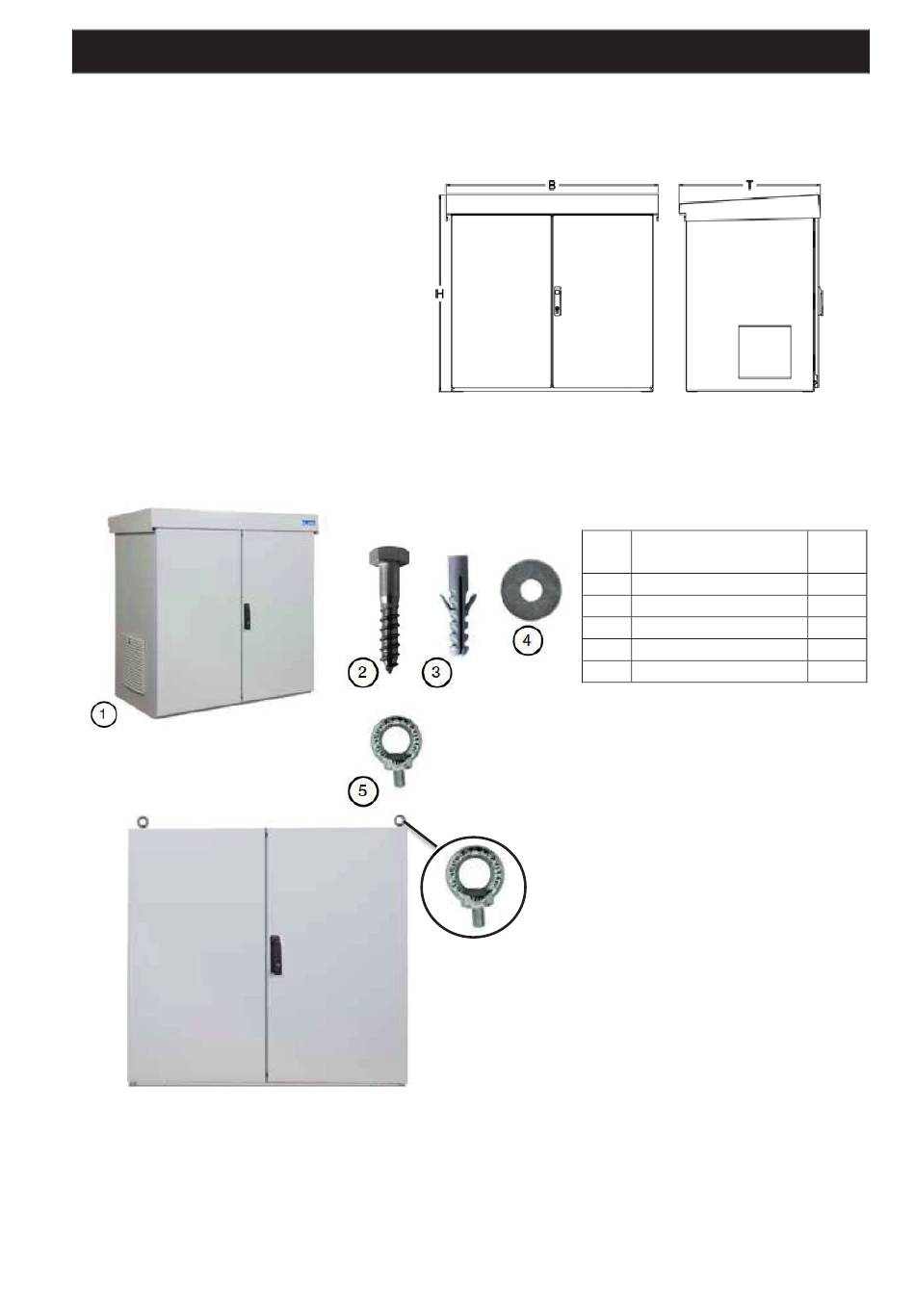

6.2.1 Installing the exterior switch cabinet XL/XXL
Technical data
Version: IP44
Material: Sheet steel 1.5
mm, powder
coated
Colour: RAL 7032
Dimensions (W x H x D [mm])
XL: 1200 x 1110 x 800
XXL: 2000 x 1100 x 900
Foundation: Full foundation,
provided by cus-
tomer
Foundation and relocation
6 Assembling the exterior switch cabinet
31 / 112
No. Part
1 Metal cabinet
2 M8 bolt
3 M10 dowel
4 Washer
5 M16 eye bolt
Four M16 eye bolts are provided for
relocating the cabinet. Before fitting
the eye bolts to the cabinet, the fit-
ted canopy and the poly plugs must
be removed from the eye bolt hold-
ers. After relocating, the poly plugs
must be reinserted and the canopy
screwed on. The switch cabinet
should be secured to the foundation
with four M8 bolts (in scope of sup-
ply).
Qua
ntity
1
4
4
4
4
