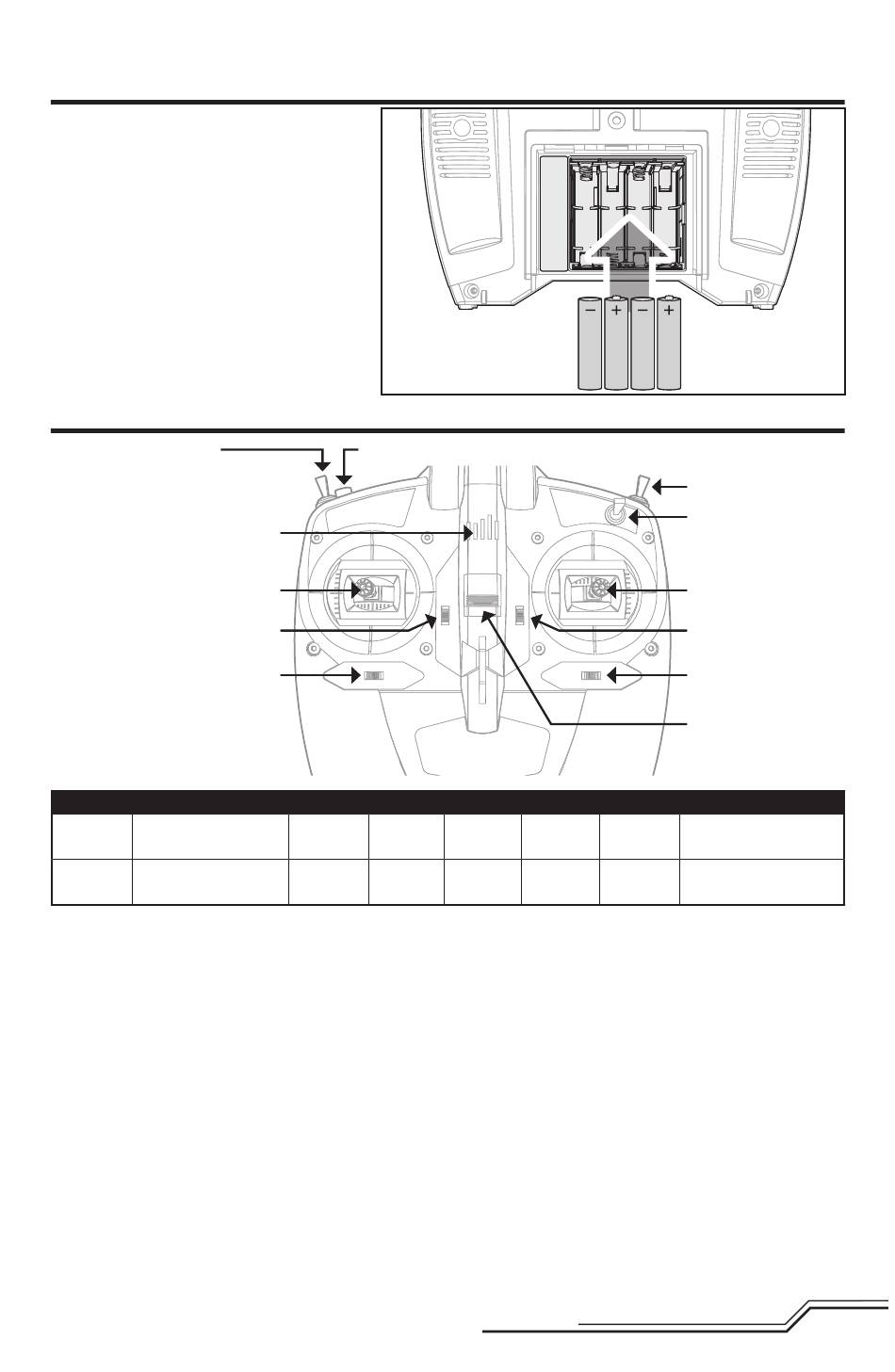

Installing the DXe Transmitter Batteries (RTF)

The LED indicator fl ashes and the transmitter
beeps progressively faster as the battery voltage
drops.
Replace the transmitter batteries when the
transmitter begins to beep.

DXe Transmitter Control (RTF)

Fli ght Mode Switch
0 = Stability Mode (NORM)
1 = Intermediate Mode (FM1)
2 = Agility Mode (FM2)
LED Indicator
A
Aileron (Left/Right)
Mode 1
Throttle (Up/Down)
Aileron (Left/Right)
Mode 2
Elevator (Up/Down)
Bind/Panic Switch
G
F
E
B C
Throttle Aileron
Trim Trim
Elevator Aileron
Trim Trim
D E
ON/OFF Rudder Elevator
Switch Trim Trim
ON/OFF Rudder Throttle
Switch Trim Trim
5
Throttle Hold
Du al Rate Switch
A
B
C
D
F G
Rudder (Left/Right)
Elevator (Up/Down)
Rudder (Left/Right)
Throttle (Up/Down)
