5

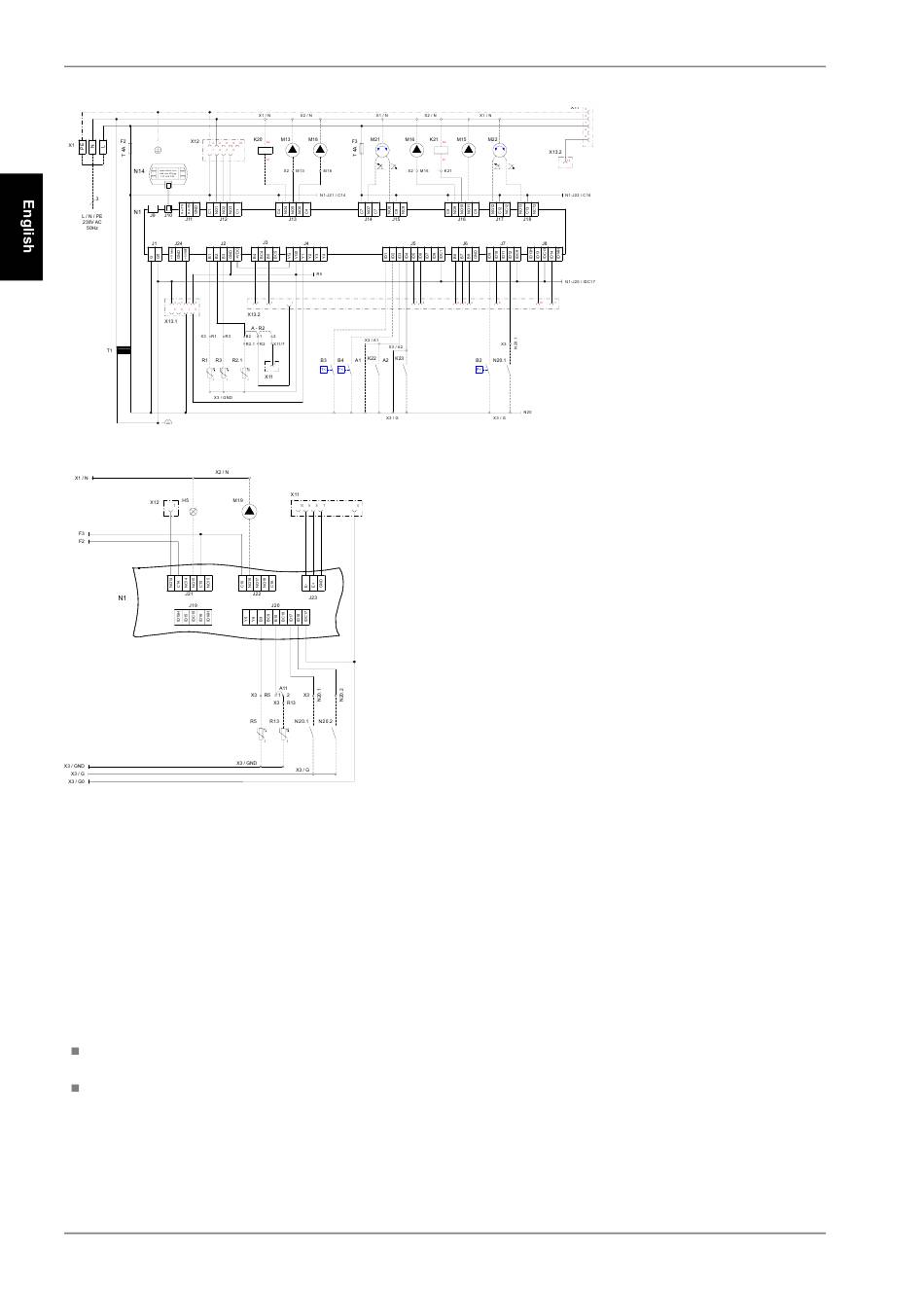

Fig. 4.2: Circuit diagram of the wall-mounted heat pump manager
Fig. 4.3: Circuit diagram for additional function of the wall-mounted heat pump manager

5 Preconfiguration of the Heat Pump Heating System

The preconfiguration tells the controller which components are
connected to the heat pump heating system. Preconfiguration
must be carried out before the system-specific settings, in order
to show or hide menu items (dynamic menus).
The following table shows not only the menu structure and
explanations in the right-hand

5.1 Menu

The preconfiguration menu can be accessed by:
Simultaneously pressing (for approx. 5 seconds) the button
combination (ESC) and (MENU).
The preconfiguration is exited via the (ESC) button.
EN-8
column, but also the
corresponding setting ranges. Values shown in bold print
indicate the factory settings.
The factory settings in the "Preconfiguration" menu correspond
to the integration diagram for a mono energy heat pump
(normally an air-to-water heat pump) with 1 compressor and one
heating circuit without DHW heating using the heat pump.
Abbreviations:
HP Heat pump
AW HP Air-to-water heat pump
BW HP Brine-to-water heat pump
WW HP Water-to-water heat pump
