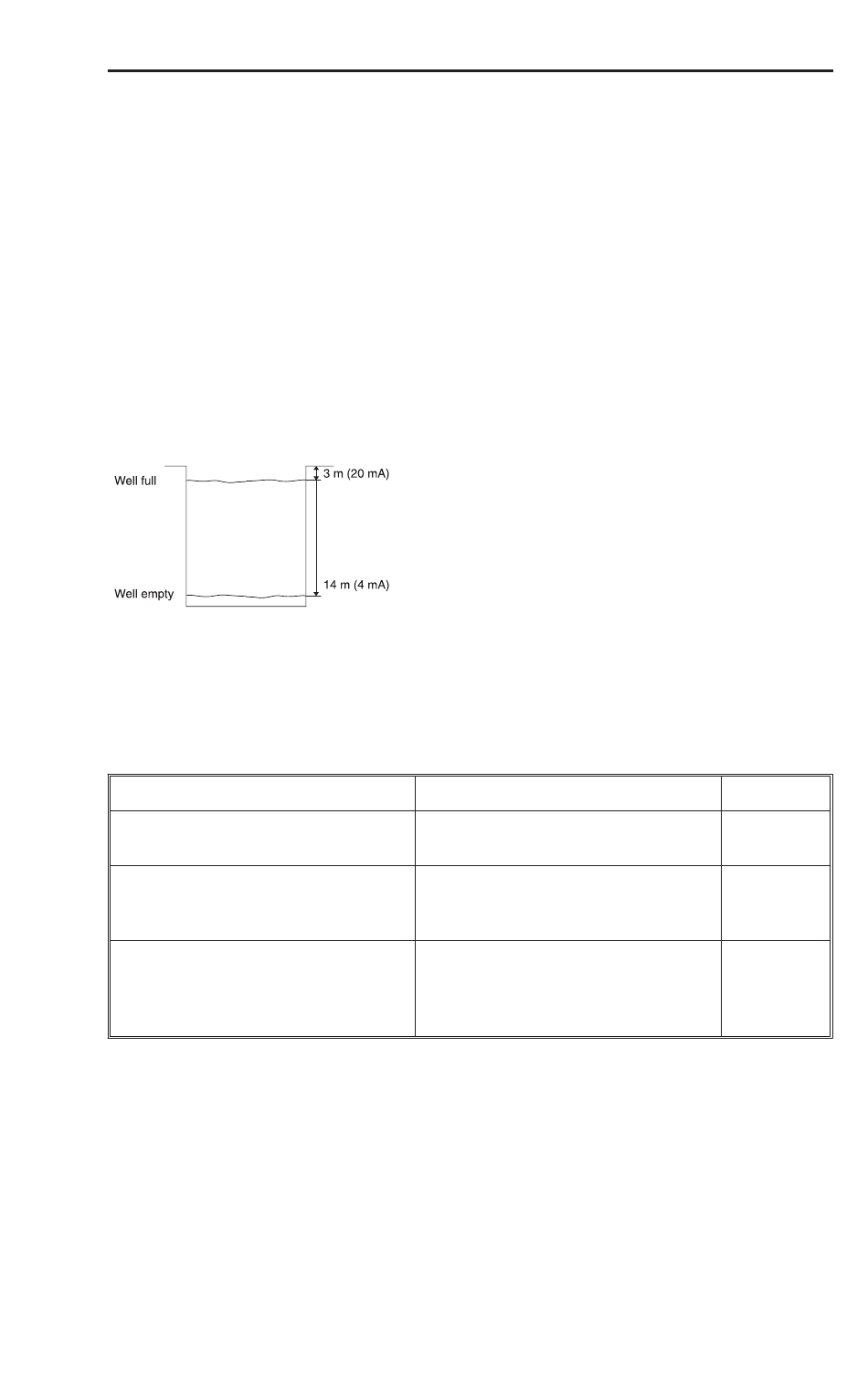

6.2 Deep well monitoring
The water depth relative to the distance of the water surface to
the well entry at ground level in a deep well is to be measured
and displayed. Additionally the filling sequence is to be
displayed on the bargraph between 0% and 100% and
retransmitted to a data recorder as a 0 - 10 V signal. f the
system becomes faulty then the analogue output is to transmit
the 0% value.
Example:
Setting up:
enu group
Analogue input
INPUT
Display
DISPL
Analogue output
OUTPT
Well full:
- Sensor signal 20 mA
- Numeric display to show
3 m
- 10 V is to be set at the
analogue output
Well empty:
- Sensor signal 4 mA
- Numeric display to show
14 m
- 0 V is to be set at the
analogue output
Address
Input range
RANG
Curve
CURVE
Decimal point
DI DP
Display value/range 0%
Display value/range 100%
Output range
RANG
Scale analogue output 0%
Scale analogue output 100%
Fault operation
FAIL
Process transmitter
Value
4-20
LINAR
99999
14
DI LO
3
DI HI
0-10V
14
OUTLO
3
OUTHI
MIN
69
