Power Supply - Rib R50 Mode D'emploi

G
B

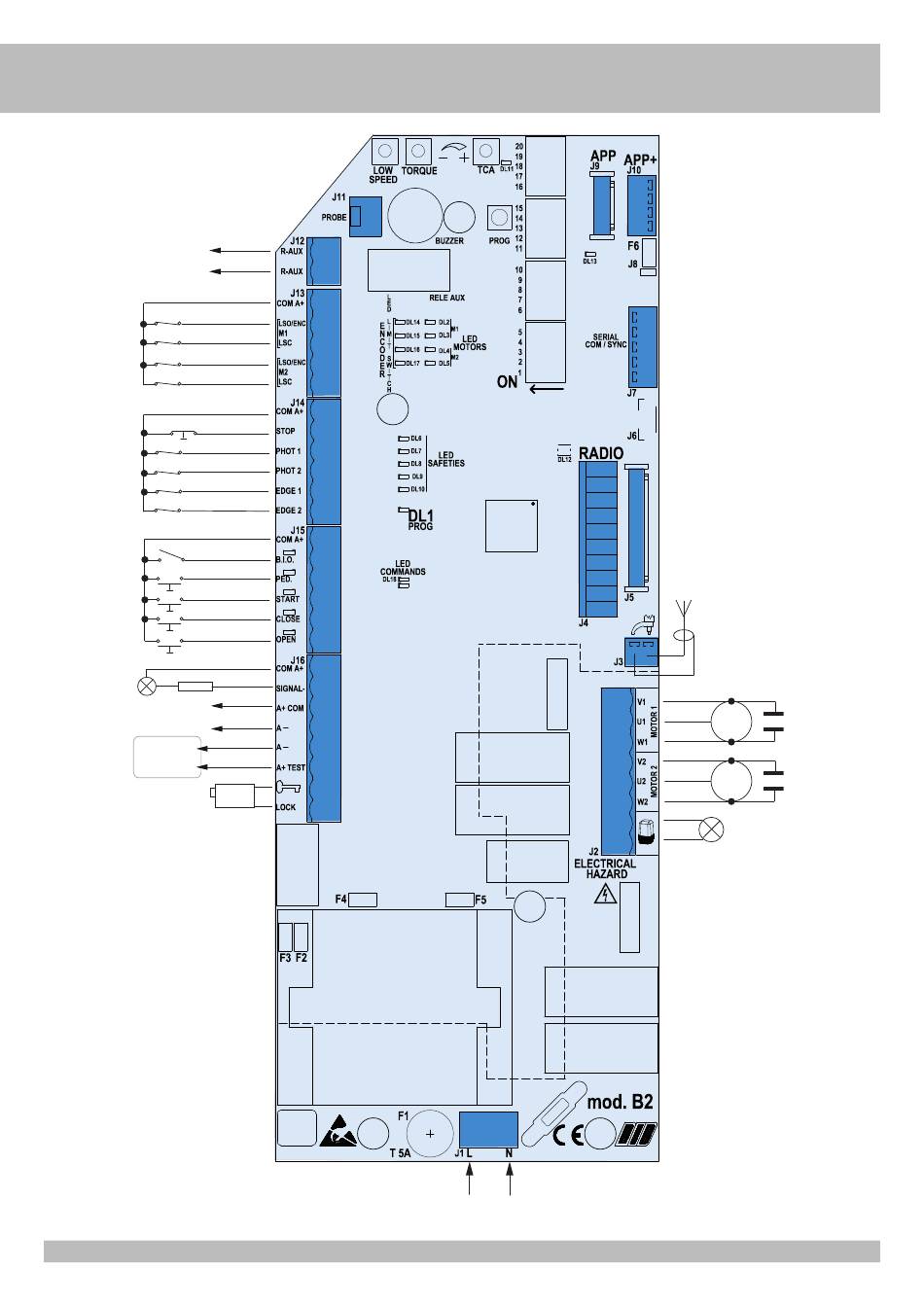

ELECTRIC CONNECTIONS
LIMIT SWITCH OPEN M1
LIMIT SWITCH CLOSE M1
LIMIT SWITCH OPEN M2
LIMIT SWITCH CLOSE M2
LED
A+TEST / A-
PHOTOCELLS
AUTO-TEST
700 W MAX
COMMON
COMMON
STOP
PHOTOCELL 1
PHOTOCELL 2
EDGE 1
EDGE 2
COMMON
TIMER
PEDESTRIAN
SINGLE COMMAND
CLOSE
OPEN
COMMON
R=2,2K 1/4W
COMMON
24Vdc 0,4A ±15%
24Vdc 0,4A ±15%
ELECTRIC LOCK

POWER SUPPLY

230Vac 50 Hz
32
B2 cod. AC08074
ANTENNA
433 MHz
ANTENNA
BRAIDING
OPEN
COMMON
M1
CLOSE
OPEN
COMMON
M2
CLOSE
BLINKER
230Vac 40W
