R50 INSTALLATION

PRE-INSTALLATION CHECKS

The leaf must be fixed firmily on the hinges to the pillars, must not be flexible during the
movement and must move without frictions. The ground on which the R50 wheels run must be
solid and compact with minimum gradient.
Gate features must be uniformed with the standards and laws in force. The door/gate can be
automated only if it is in a good condition and its conditions comply with the EN 12604 norm.
- The door/gate leaf does not have to have a pedestrian opening. In the opposite case it is
necessary to take the appropriate steps, in accordance with EN 12453 norm point 6.5.1 (for
instance; by preventing the operation of the motor when the pedestrian opening is opened,
by installing a safety microswitch connected with the control panel).
- No mechanical stop shall be on top of the gate, since mechanical stops are not safe enough.
R50 INSTALLATION
The ground should be compact and without any excessive differences in level along the tract
destined for wheel run.

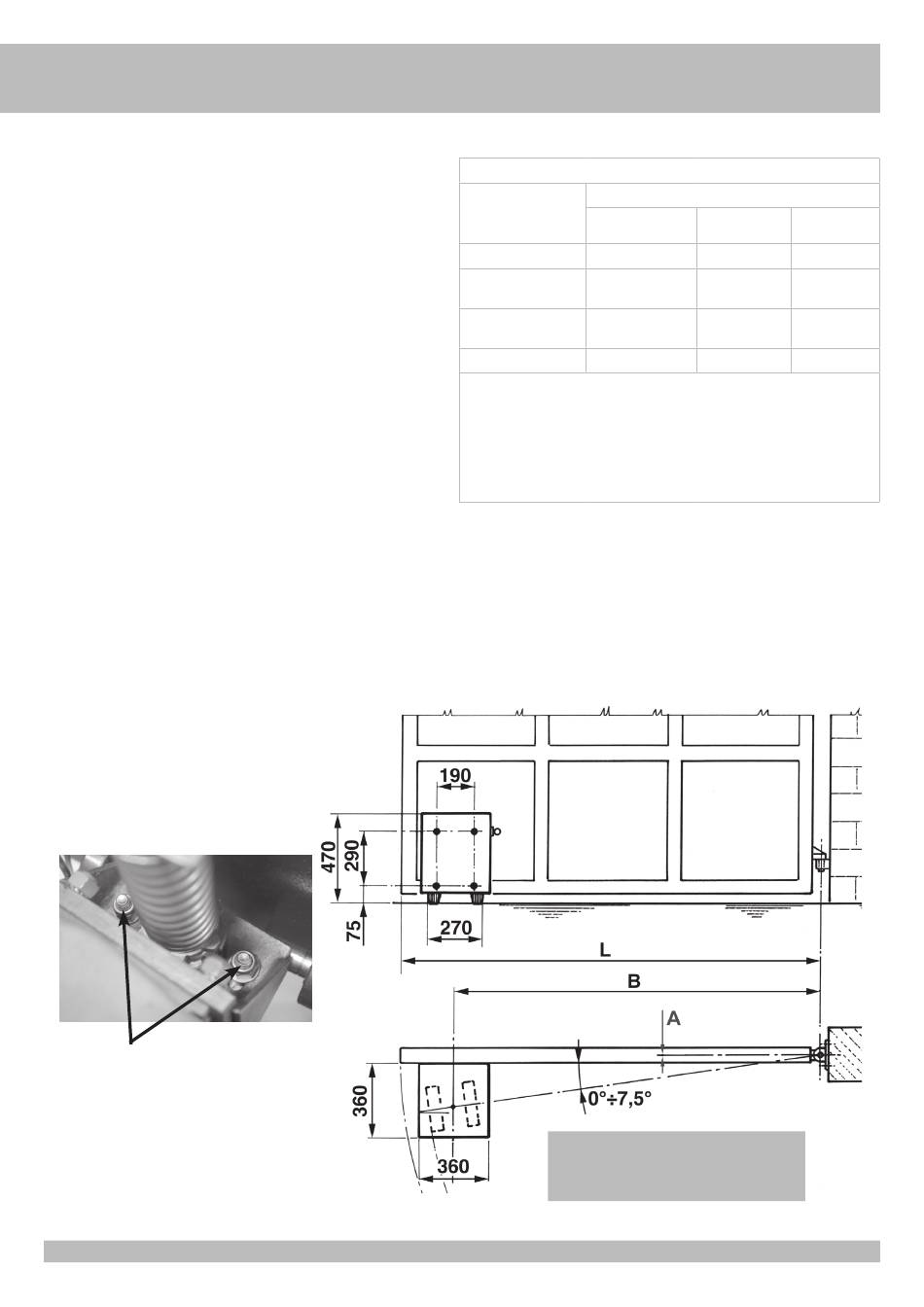

Position the gate about halfway, secure the gearmotor plate to the corner of the gate leaf and
ensure that the drive wheels rest on the ground.
Drill four Ø 6.5 mm holes in the leaf, then tap them with M8 male threading.
Insert four M8 bolts and tighten with a No. 13 wrench.
Remove the elastic pin which prevents the wheels from turning (Fig. 6).
If the drive wheels slide on the ground during operation, turn the set screw on the spring
D
Parts to install according to EN 12453 standard
COMMAND TYPE
Skilled persons
(out of public area*)
Hold-to-run operation
Impulsive - in sight
(e.g. push-button)
impulsive - out of sight
(e.g. remote)
automatic C and D, or E
* a typical example are those doors which do not have access to any public way
A: Hold-to-run operation made by push-button ex: code ACG2013
B: Hold-to-run operation made by key selector ex: code ACG1010
C: Adjustable power of the motor or photocells to respect impact forces as indicated in
Annex A
D: Safety strips and/or other additional devices to reduce the probability of contact with
the door.
E: Devices installed in such a way that a person can not be touched by the door.
clockwise to increase the pressure between the wheels and the ground.
To reduce wheel wear during operation, loosen nuts (D) with a No. 13 wrench and tilt the rubber
wheels so that the axles coincide with the center of the gate leaf pivot point.
The wheels may be tilted by 0° to 7.5°. Retighten the two nuts.
The R50 is equipped with two waterproof, armored limit stops to electrically control gate
travel.
The limit stops should be positioned in accordance with installer requirements.
B min [m] = (0,205+A) / 0,12
B [m]
Opening time [sec] = 7,85 x L
30
USE OF THE SHUTTER
Skilled persons
(public area)
A B
C or E C or E
C or E C and D, or E
C and D, or E
= 0,9 x L
Not skilled
persons
Not possible
C and D, or E
C and D, or E
C and D, or E
3
