Scotsman B 21 WS Manuel De Service page 8

d

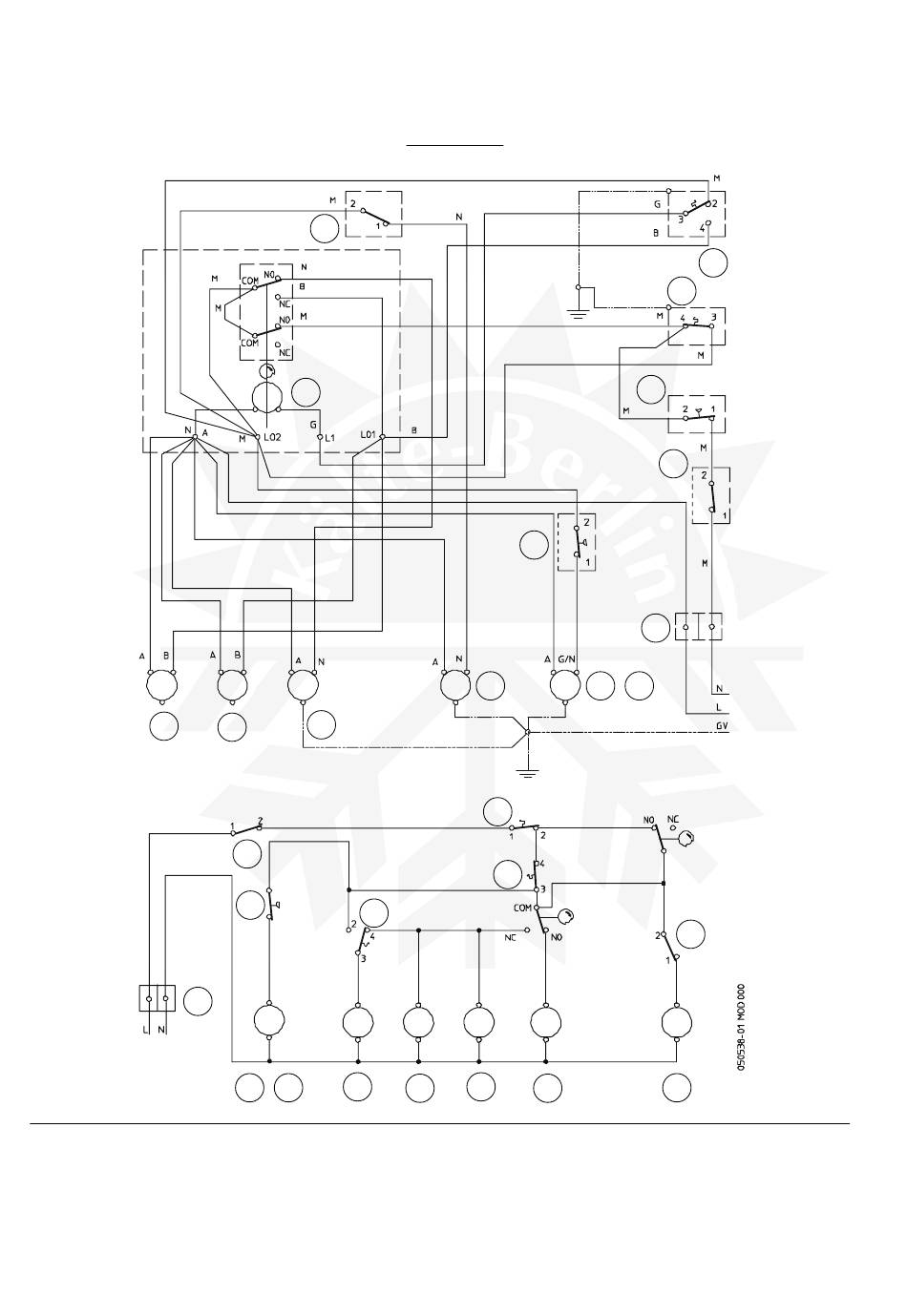

WIRING DIAGRAM - SCHEMA ELETTRICO - SCHÉMA ÉLECTRIQUE - SCHALTUNGSSCHEMA
AIR & WATER COOLED - RAFFREDDAMENTO AD ARIA ED AD ACQUA.
REFROIDISSEMENT A AIR ET A EAU - LUFT- UND WASSERGEKÜHLT
TIMER
7
1
1 TERMINAL BOARD - MORSETTIERA
BORNIER - ANSCHLUSSKASTEN
2 EVAPORATOR THERMOSTAT - TERMOSTATO EVAPORATORE
THERMOSTAT EVAPORATEUR - VERDAMPFERTHERMOSTAT
3 BIN THERMOSTAT - TERMOSTATO CONTENITORE
THERMOSTAT CABINE - SPEICHERTHERMOSTAT
4 COMPRESSOR - COMPRESSORE
COMPRESSEUR - KOMPRESSOR
5 WATER PUMP - POMPA
POMPE A EAU - WASSERPUMPE
14
13
5
8
11
9
2
13
6 - 10
6 FAN MOTOR - VENTILATORE
MOTOVENTILATEUR - LÜFTERMOTOR
7 WATER SOL. VALVE - VALV. INGR. ACQUA
VANNE ARRIVÉE EAU - WAISSEREINLASSVENTIL
8 HOT. GAS VALVE - VALVOLA GAS CALDO
VANNE GAZ CHAUDS - HEISSGASVENTIL
9 PRESSURE CTRL - PRESSOSTATO
PRESSOSTAT - DRUCKSCHALTER
10 COND. WATER SOL. VALVE - VALV. ALIM. ACQUA COND.
VANNE ARR. EAU CONDEN. - WASSEREINLASSVENTIL KOND.
50
230/50-60/1
9
4
12
13
8
7 5
2
3
12
11
1
6 - 10
14
4
11 SWITCH - INTERRUTTORE
INTERRUPTEUR - SCHALTER
12 HI THERMOSTAT - TERMOSTATO DI SICUREZZA
THERMOSTAT DE SECURITE - SICHERHEITSTHERMOSTAT
13 TIMER - TIMER
PENDULE - ZEITHUR
14 COMPRESSOR SWITCH - INTERRUTTORE COMPRESSORE
INTERRUPTEUR COMPRESSEUR - KOMPRESSORSCHALTER
g)
A - BLUE
AZZURRO
BLEU
BLAU
B - WHITE
BIANCO
BLANC
WEISS
M - BROWN
MARRONE
MARRON
BRAUN
N - BLACK
NERO
NOIR
SCHWARZ
G - GREY
GRIGIO
GRIS
GRAU
