1 - INTRODUCTION
IMPORTANT! All local regulations, including those
that refer to national or European regulations,
must be applied when installing this device.
The way the ARCE Stove-Oven is installed will
decisively affect safety issues and its correct
operation.
It is important to install the fireplace correctly. For
the correct installation of the AREC Stove-Oven
and chimney, we recommend the installation be
performed by a professional.
The ARCE Stove-Oven provides heat by radiation;
directly heating walls, ceilings...

2 - PRESENTATION

This device features the following main functions:
• Barbecue and Heater in the lower fireplace.
• Grill in top oven.
The main features of this log Stove / Grill are:
Fireplace (Lower section)
• Cast Iron Grill and refractory brick base.
• Steel door with glass ceramic pane.
• Adjustable combustion through primary air

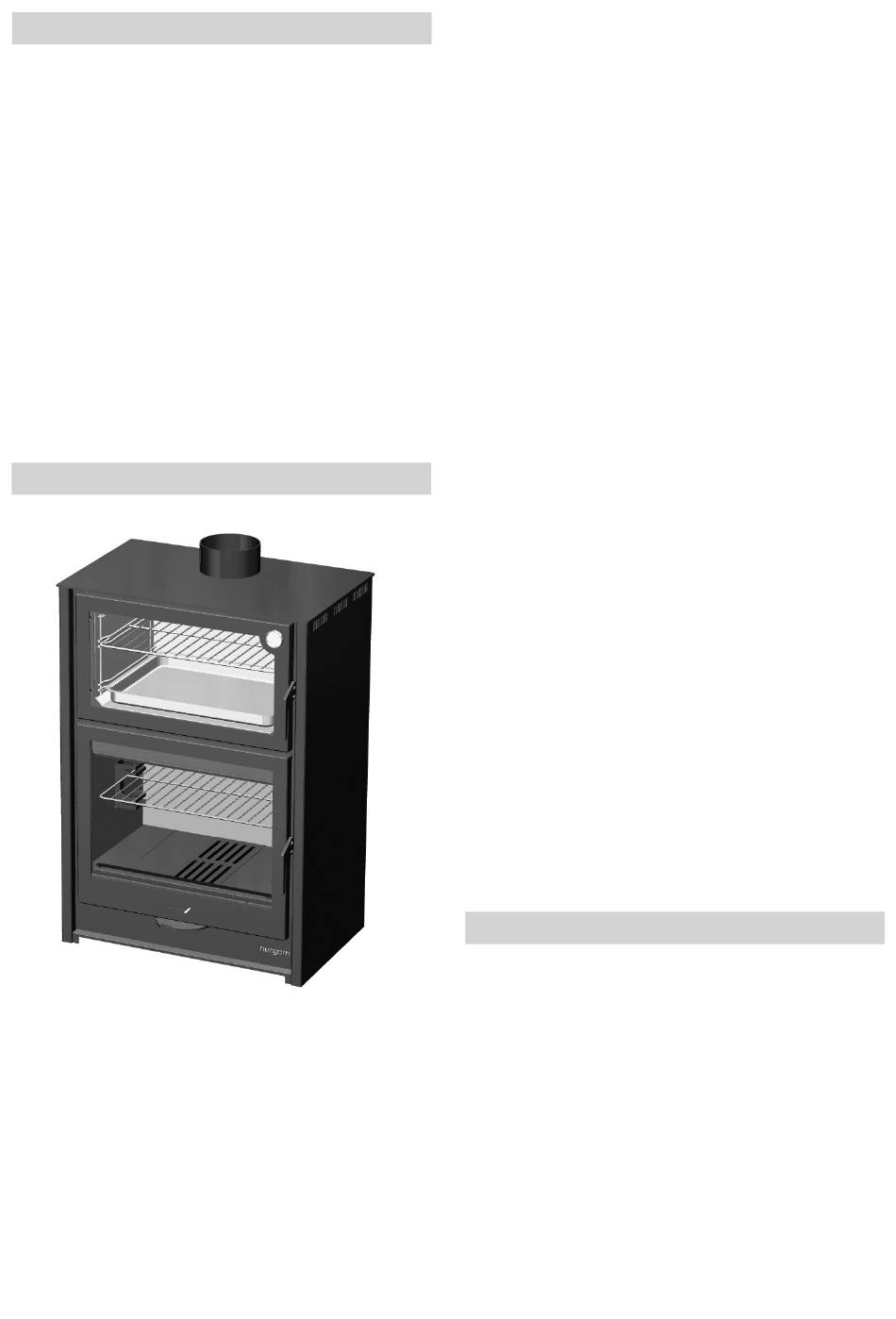

FIG. 1
valves and glass cleaning by air
• Vermiculite walls with removable supports for
the placement of the grills.
• Removable grill.
Oven (upper section)
• Steel door with glass ceramic pane and
thermometer.
• Capacity, 52 litres.
• Stainless steel walls, top and rear.
• Stainless steel oven that can be disassembled
to clean the chimney.
• Removable grill fixtures to make it easier to
clean the oven.
• 2 chromed steel spits. (For use in the oven or
the fireplace).
• Stainless steel tray.
Furthermore ...
• Steel controls.
• Flue for Ø150 mm pipes.
• The whole is protected with black heatproof
paint (RAL 9004).
In order to take advantage of the heat generated
by the Oven, a number of air intakes have been
installed at the bottom of the unit that, by means
of convection, force hot air to flow from the top
outlets. This provides a double function: the first
is to cool the walls of the unit and the second is
to generate heat that is transferred to the exterior.
3 - INSTALLATION
Adjusting the levelling legs
The two levelling legs, which will have to be adjusted
if the device is placed on an uneven surface, can be
found at the front of the device. It is important to
level the unit correctly.
For information on the correct installation of the
device, please see the Manual for the Professional
Installer.
