sigfox RC1 ANALOG - Guide utilisateur / User guide version V2.0.1

5.6. Closing the casing

Once previous stages have been carried out, you can close the casing of the sigfox RC1 ANALOG

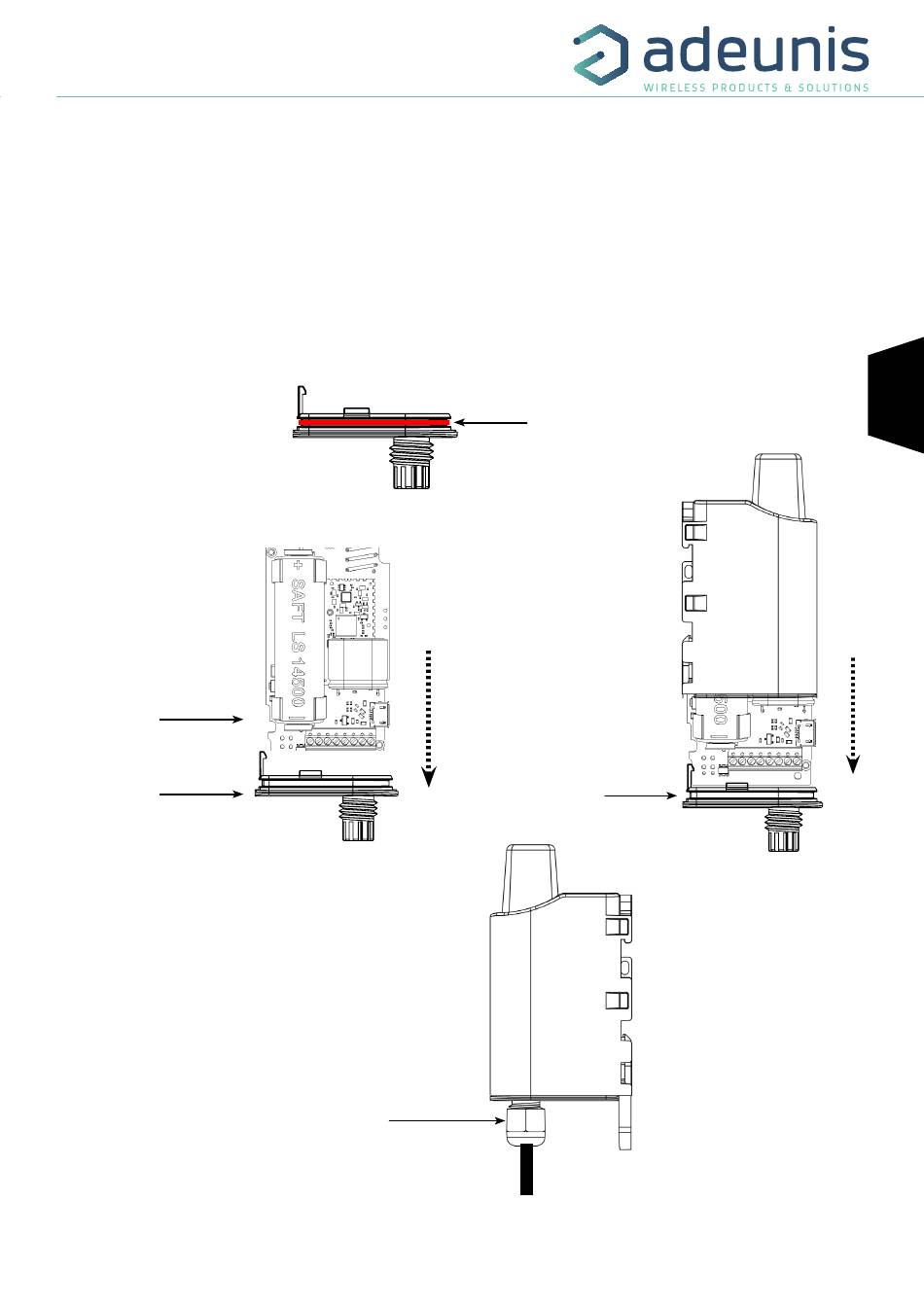

Procedure:
1. Make sure that the seal is properly positioned on the base
2. Clip the electronic board onto the casing's base. Make sure that the fastening clip is properly locked into the
board's fitting.
3. Insert the upper part of the casing. Inside this part there are guide rails for the board. Make sure that the
board is properly positioned within these guides.
4. Once the board is in position, lower the upper cover and lock it onto the casing's base. Strong pressure will
enable both parts to be clipped together and will enable protection level IP67 to be ensured.
5. Finish the assembly by locking the packing gland's nut in position
2
Fitting
Fastening clip
1
5
Packing gland nut
Seal
3/4
Locking clips for
the upper casing
FR
EN
