WMBUS MODBUS MASTER - Guide utilisateur / User guide version V1.0.0

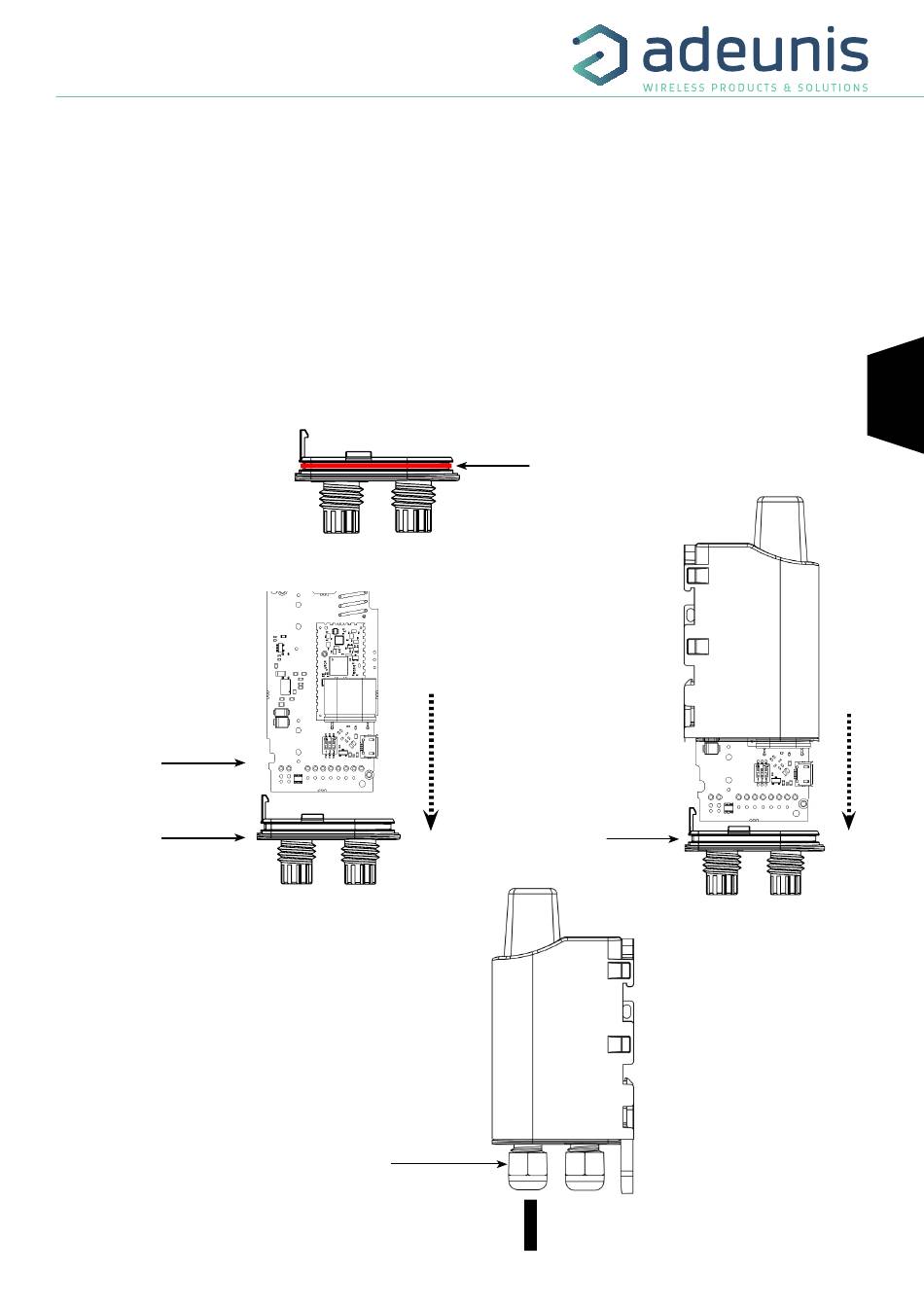

5.6. Closing the case
For configuration purposes, you may need to open and then re-close the MODBUS MASTER box.
Procedure:
1.
Make sure that the seal is properly positioned on the base
2.
Clip the electronic board onto the casing's base. Make sure that the fastening clip is properly locked into the board's fitting.
3.
Insert the upper part of the casing. Inside this part there are guide rails for the board. Make sure that the board is properly positioned
within these guides.
4.
Once the board is in position, lower the upper cover and lock it onto the casing's base. Strong pressure will enable both parts to be clipped
together and will enable protection level IP67 to be ensured.
5.
Finish the assembly by locking the packing gland's nut in position
2
t
Fitting
Fastening clip
1
5
Packing gland nut
Seal
3/4
Locking clips for the
upper casing
FR
EN
Page
69
of 77
