Product Presentation; General Description - ADEUNIS WMBUS MODBUS MASTER Guide Utilisateur

WMBUS MODBUS MASTER - Guide utilisateur / User guide version V1.0.0

1. PRODUCT PRESENTATION

IMPORTANT NOTE: The WMBUS MODBUS MASTER can only be started with a magnet.
Description:
• The adeunis® WMBUS MODBUS MASTER is a ready-to-use radio transmitter with a MODBUS interface
• This product meets the needs of users to communicate with one or several MODBUS slaves and transmit thier information via a WMBUS
network.
• The product could handle upto 10 slaves with 15 registers by slave.
• The product transmits the data from the slaves either periodically or in an event-related way based on high or low thresholds.
• The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the WMBUS network, allowing in particu-
lar a choice of modes of transmission, periodicity or triggering thresholds.
• The WMBUS MODBUS MASTER is powered by an external power supply (not included).
• The product is able to provide and control the power supply for a slave.
Composition of the package
The product is supplied in a cardboard box containing the following items:
top casing, electronic card, casing base plate,
Cable gland, 3 gland seals, 2 CBLZ 2.2 x 19mm screws, 2 Fischer SX4 plugs

1.1. GENERAL DESCRIPTION

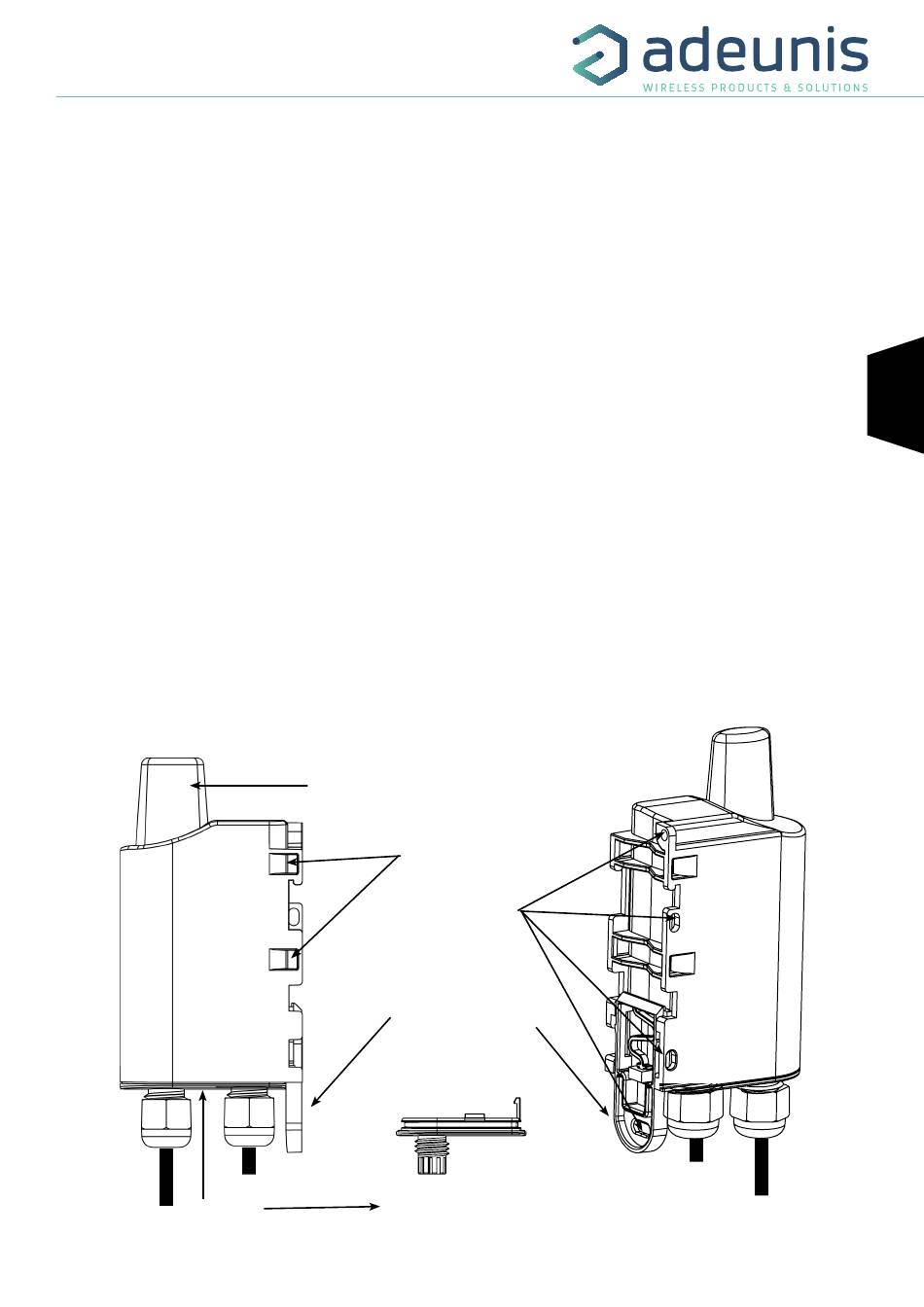

Casing base
Antenna
2 holes for passing
collars through
4 fastening holes
Rail-DIN unlocking
lever
Casing base detail
Cables outlet
packing gland
Page
FR
EN
45 of 77
