Installation and start-up of KEOR HPE UPS 60÷160 kVA
Installation et démarrage de l'ASI KEOR HPE 60÷160 kVA
Installazione e avviamento KEOR HPE UPS 60÷160 kVA
2) Install the batteries received in a separate packages and install it in accordance with the picture
12 and picture 13.

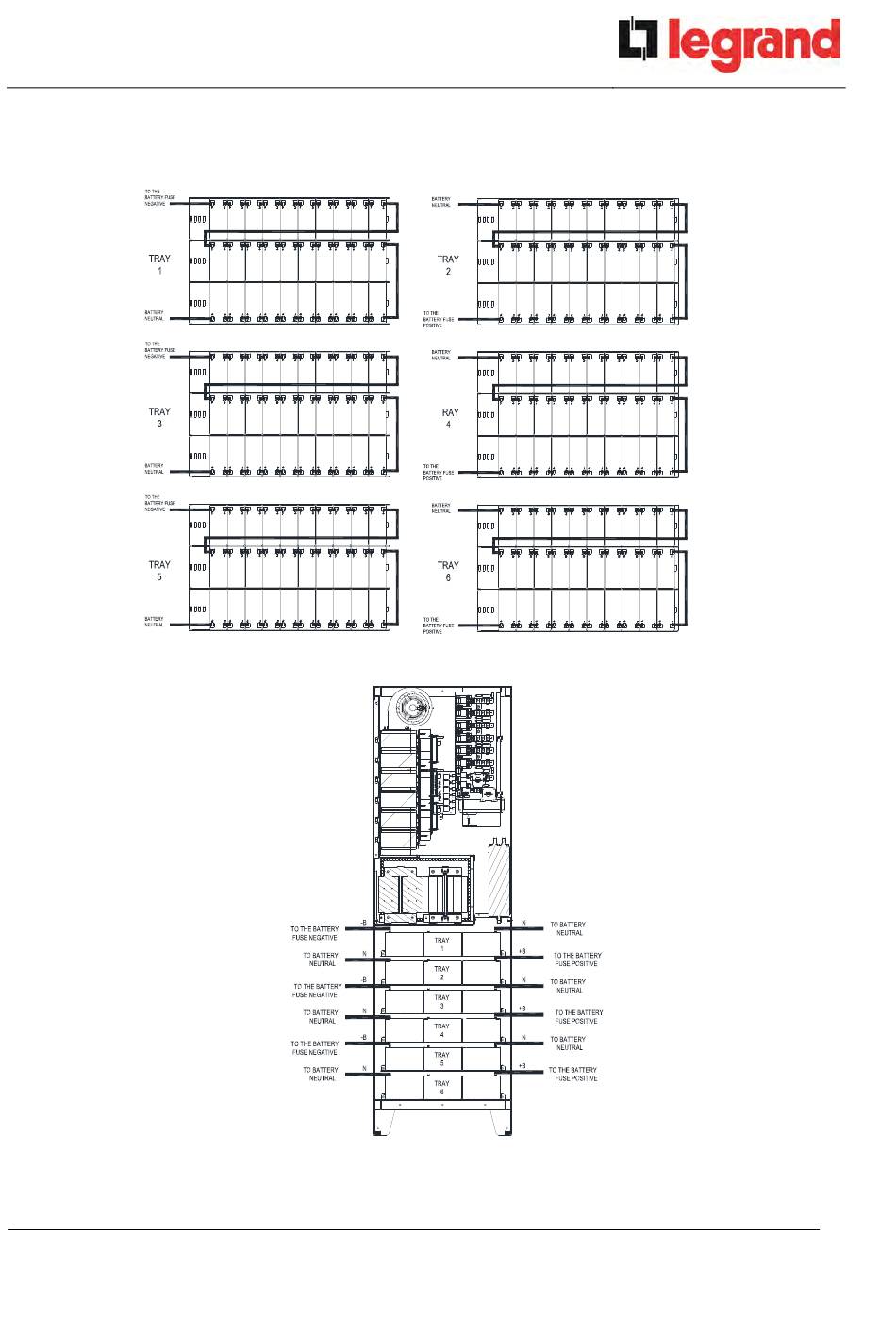

Picture 12- 7/9/11Ah 12V battery connection tray top view
Picture 13- 7/9/11Ah 12V battery connection tray front view
3) After the connection re-insert the battery trays on the internal of UPS.
4) Put back and fix the left/right cover with the four screws.
OML46086 REV. I 39
