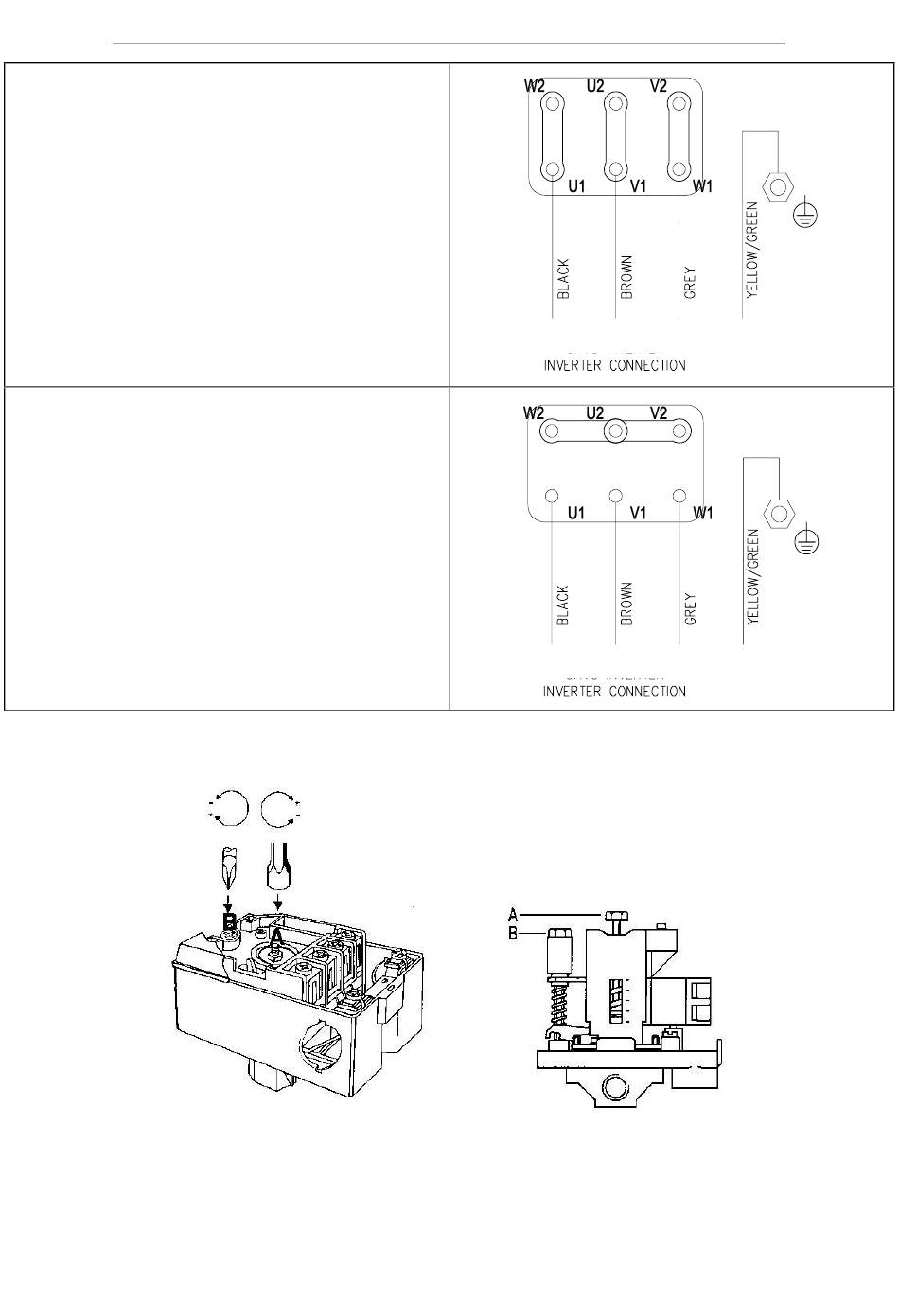

THREE-PHASE MOTOR CONNECTION WITH ON-BOARD PUMP INVERTER (E-DRIVE/E-SPD)
TRIANGLE CONNECTION
With single-phase power supply
 E-DRIVE (from 1.5 to 3 kW*)
 E-SPD (≤ 2.2 kW*)
With three-phase power supply
 E-DRIVE (from 5.5 to 45 kW*)
STAR CONNECTION
With three-phase power supply
 E-DRIVE (≤ 4 kW*)
 E-SPD (≤ 4 kW*)
*Motor power indicated, check the type of control device (E-DRIVE, E-SPD, etc.) in the device manual.
H – PUMP STARTING PRESSURE SWITCH
