4

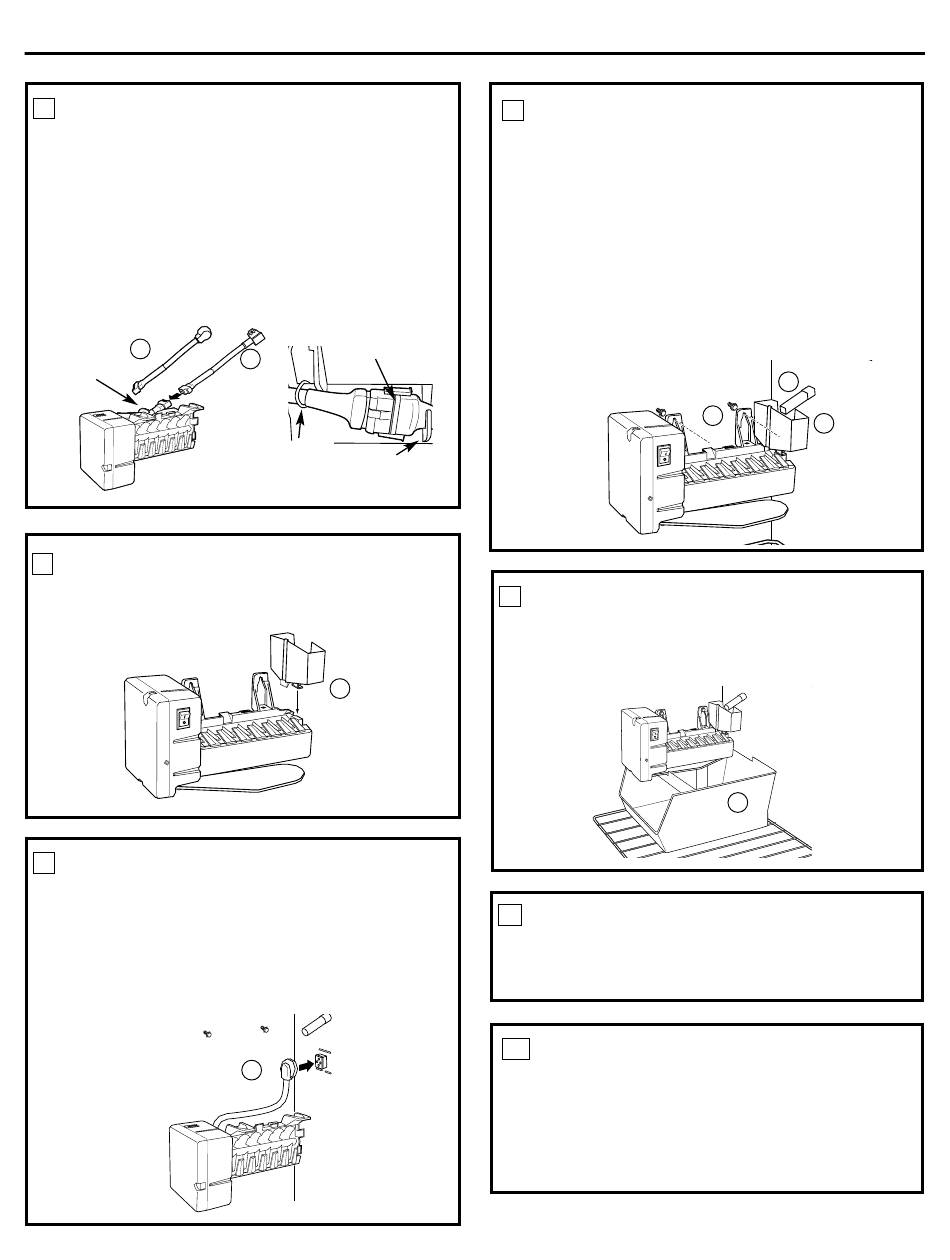

POWER CORD ADAPTER
There are two power cord adapters included with the
kit; be sure to use the one that matches the socket on
the rear wall of the refrigerator. Plug the female end
of the power cord adapter (19 or 20) onto the male
terminals on the icemaker power cord. When
connecting the adapter to the power cord, be sure the
seal is in place between the connectors. Secure the
power cord adapter to the icemaker by putting it into
the hook at the back of the icemaker and attaching it
to the icemaker with a wire tie (22).
19
OR
Hook
5
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cup (side-mounted)(18) into
the icemaker as shown.
6
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the icemaker
power cord plug (D) into the socket on the rear wall,
making sure the prongs and holes are matched.
Press the plug firmly into the socket. On 6-pin cord
adapter (20), lock the plug in place by clipping the
restraints onto each side of the plug. Make sure the
restraints click into place.
Installation Instructions
Seal
20
Wire tie
Hook
6-pin Adapter
18
D
MOUNT THE ICEMAKER
7
• Lift the icemaker so the fill tube (16) fits in the
fill cup opening (E). Hang the icemaker on the
two mounting screws (C).
Make sure:
• The power cord is still firmly in the socket.
• The fill tube (16) extends into the fill cup
opening on the back of the icemaker. (Check
the rear of the refrigerator to make sure the fill
tube has not been pushed out of the back of the
refrigerator).
THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREWS.
8
INSTALL THE ICE BUCKET
Install the freezer shelf in the lowest position. Place
the ice bucket (11) on the shelf under the icemaker.
Make sure the icemaker power switch is set to O (off).
9
ATTACH WARRANTY LABEL
A label (9) is provided with this kit to record the
date of installation for warranty purposes. Apply it
to the back of the refrigerator.
10
KEEP THIS MANUAL
The warranty for the icemaker is printed in this
manual. Keep this manual with your Refrigerator
Owner's Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly
section.
47
16
C
E
11
