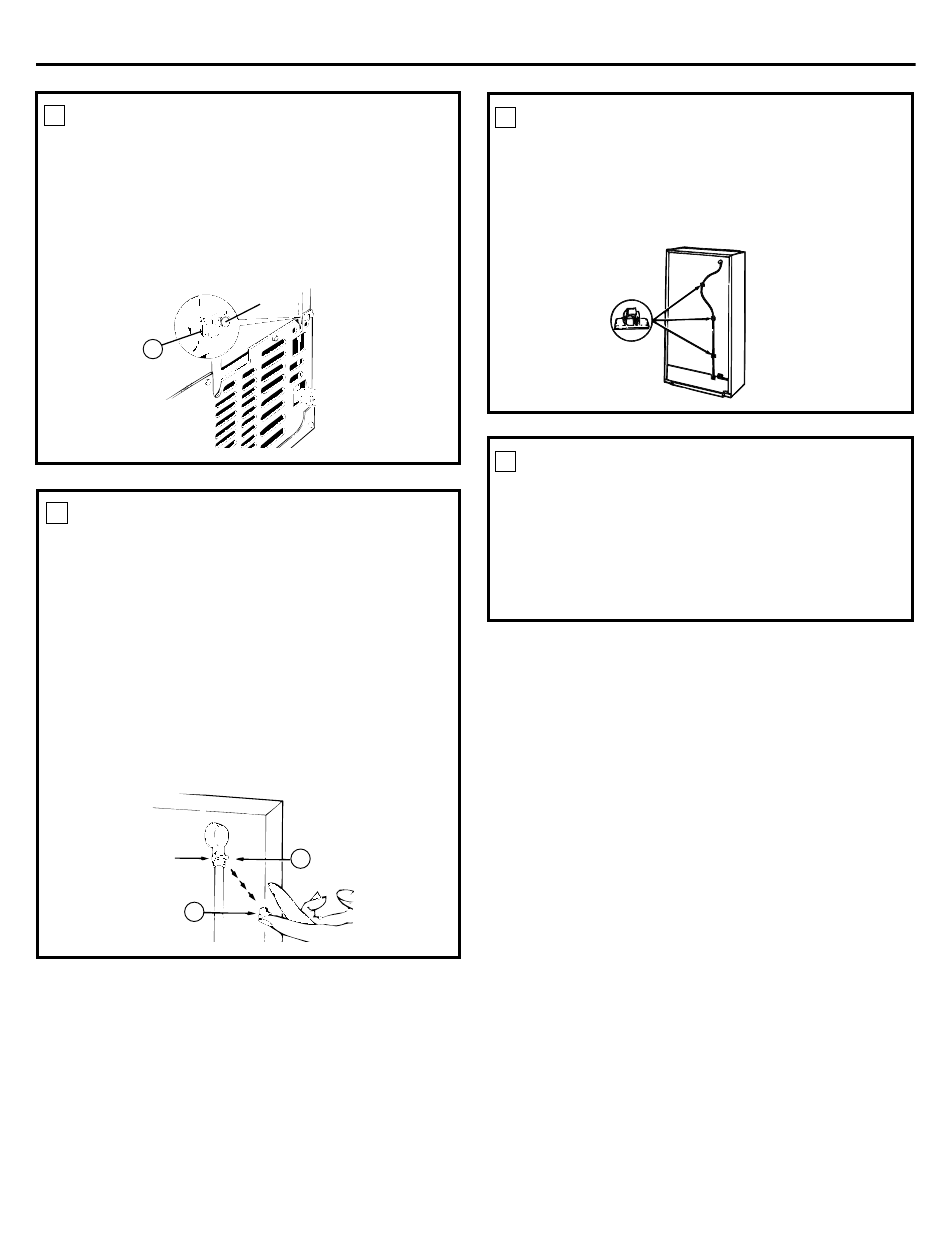

INSTALL WATER LINE CLAMP
3
Attach the metal water line clamp (strain relief)
•
(8) to the refrigerator. Drive one of the screws,
removed in Step 1, into the cabinet edge through
the clamp and hole in compressor cover.
• The metal clamp is for the house water line (see
Water Line Installation Instructions). It is not to
be used for the tubing from the water valve up to
the icemaker.
8
4 CONNECT THE WATER LINE
• Remove the small plastic cap (B) from the bottom
of the water tube inlet located in the upper-right
rear corner of the refrigerator.
• Squeeze the ends of the hose clamp (6) from the
kit with pliers and slide the clamp over the water
tube inlet.
• While still squeezing the clamp, insert the
plastic water line into the inlet as far as it will
go (approximately 1" [25 mm]).
• Then slide the clamp downward to capture the
plastic water line in place.
• Make sure the fill tube is aimed down.
Water tube
inlet
B
Installation Instructions
Screw
6
ROUTE AND ATTACH THE
5
PLASTIC WATER LINE
• Route the plastic water line along the back of the
refrigerator to the water tube inlet.
• Use the three adhesive backed fasteners (5) to
secure the plastic water line to the case back.
Adhesive-backed
fasteners for plastic
water line
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions
for connection to the home water supply. After
water line installation is completed, set the
icemaker power switch to I (on).
The icemaking cycle will not begin until the icemaker
and freezer compartment reach operating temperature,
then icemaking will begin automatically.
