GE IM-6 Manuel D'utilisation Et D'installation page 40

Kit im-6 ce kit convient à la plupart des modèles appelant uk-kit-1, uk-kit-2, uk-kit-4, et à tous les modèles appelant kit im-1, im-2, im-3, im-4 ou im5ss. si vous remplacez une machine à glaçons par un kit im-1 ou im-2, reportez-vous à la page 5.
Table des Matières

Publicité

Les langues disponibles

Les langues disponibles

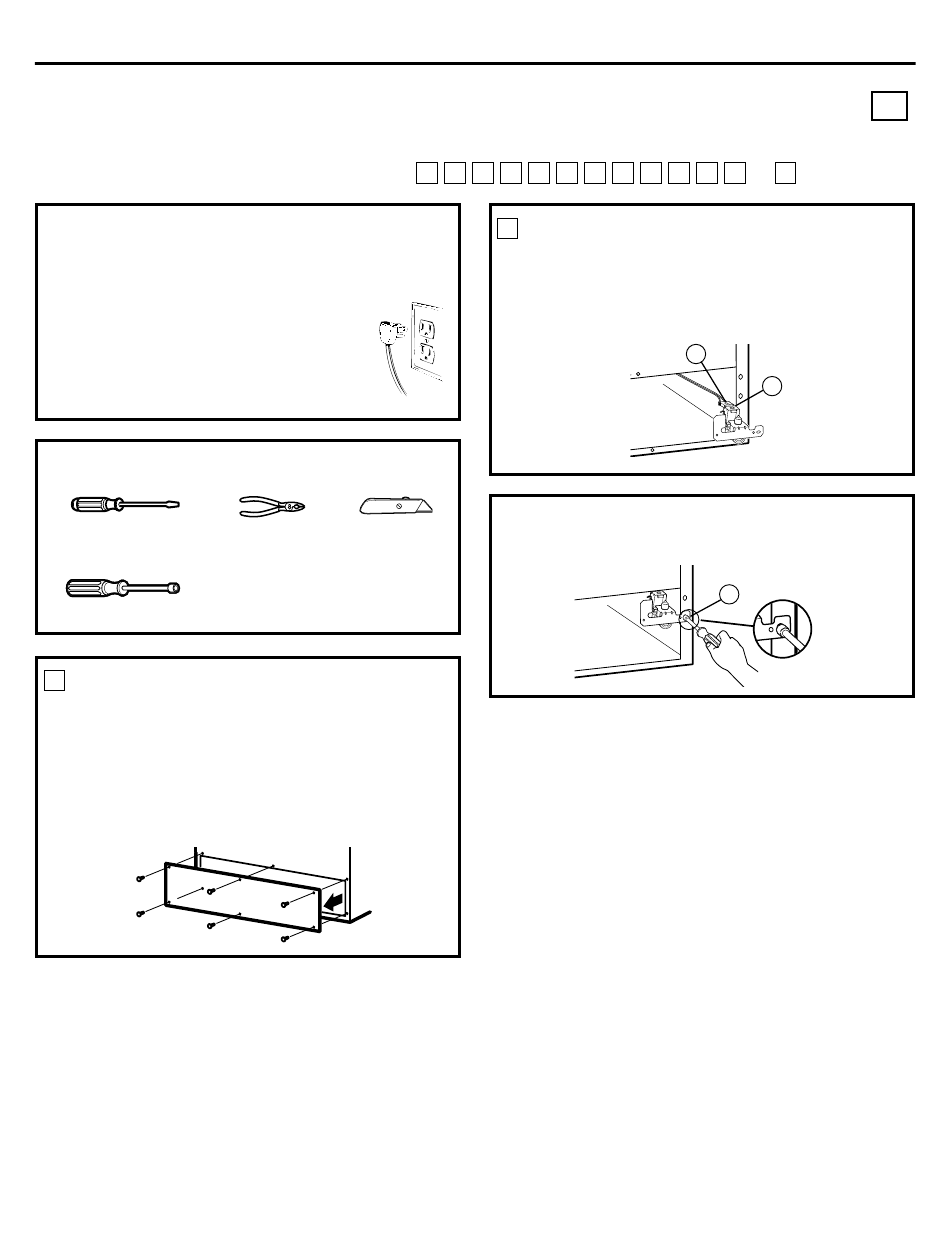

WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS M
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator—
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
CAUTION –
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator from
its electrical outlet.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4" and 5/16" Nutdrivers
REMOVE THE COVER
1
Use a 5/16" nutdriver or an adjustable wrench to
remove the compressor compartment access cover.
This requires removing six screws which attach the
cover to the back of the refrigerator case.
Be sure to save the screws as the access cover must
be reinstalled later to ensure your refrigerator will
function properly.
Installation Instructions
C
Unplug the
Sharp knife
Pliers
F
G
H
J
K
L
M
ATTACH THE WATER VALVE
2
• Locate the female connector plug. Plug the
female connector (C) onto the male terminals
on the water valve (4). Either wire can go on
either terminal.
• Fasten the water valve to the cabinet by driving
the hex-head screw (13) from the kit into the hole
in the cabinet leg.
40
or S
N
P
Q
R
C
4
13
