SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN)
TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
3/16" (≈5 mm) (x2)
2.5

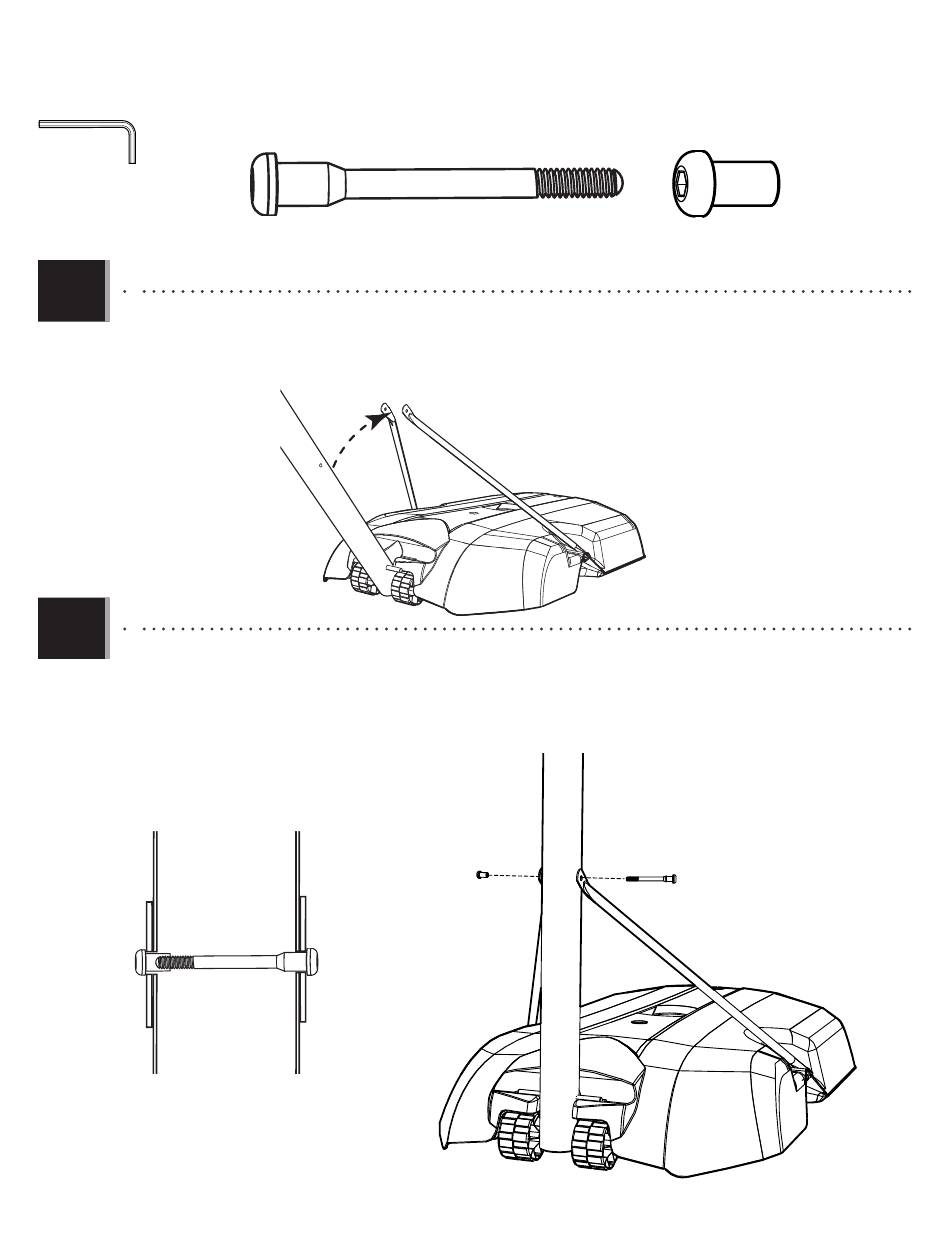

• Rotate the pole assembly upward so that the small axle snaps into the upper slots of the base as indicated.
• Tourner l'assemblage du poteau vers le haut pour que le petit essieu s'enclenche dans les fentes supérieures de la base
comme indiqué.
• Rotar el conjunto del poste para arriba para que el eje pequeño se sienta en las ranuras superiores de la base como se
indica.
2.6
• Attach the fl attened end of the pole brace to the base with the hardware indicated. Note that the bolt (DSA) does not go
through the pole; the barrel nut (BTS) connects to it inside the pole.
• Attacher l'extrémité aplatie du support du poteau à la base à l'aide de la quincaillerie indiquée. Noter que le boulon (DSA)
ne traverse pas le poteau ; l'écrou (BTS) s'y connecte à l'intérieur du poteau.
• Sujetar el extremo aplanado del soporte del poste a la base usando el herraje indicado. Tener en cuenta que el perno (DSA)
no atraviesa por completo el poste; la tuerca (BTS) se conecta a él dentro del poste.
DSA (x1)
AJE
BTS
13
BTS (x1)
DSA
