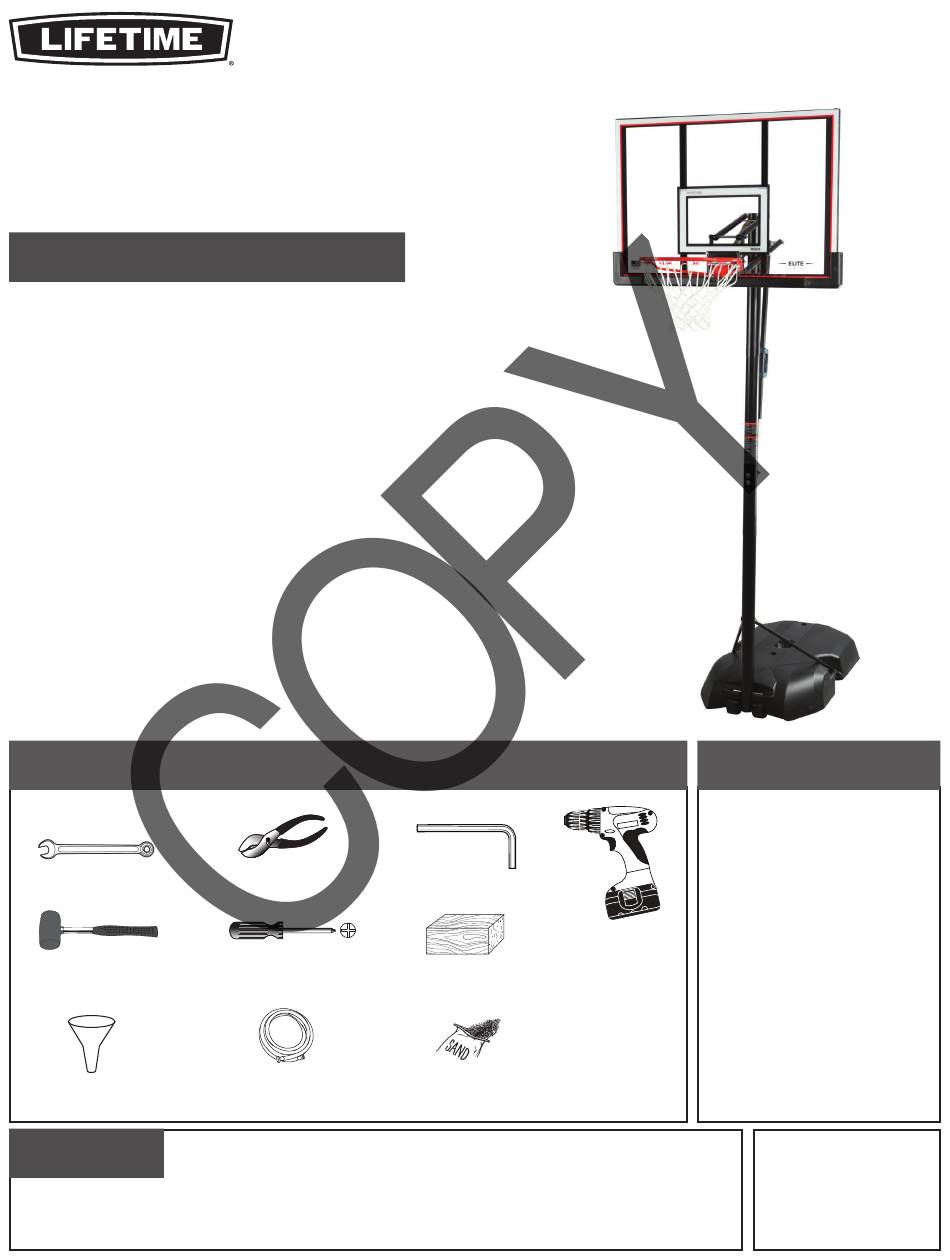

Lifetime SPEED SHIFT 90227 Instructions D'assemblage

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel
SPEED SHIFT
BASKETBALL SYSTEM
MODEL #60091
MODEL 90227
BEFORE ASSEMBLY:
• Decide how you would like to fi ll your base
(sand is recommended).
• 2+ people recommended for setup.
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (13 mm), 7/16" (11 mm),
9/16" (14 mm), 3/4" (19 mm)
(2)
(1)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
PORTABLE
®
(2, included)
(1)
(1)
(1)
310 lb (141 kg)
Live Chat:
www.lifetime.com
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/16"
(1)
(1)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu
TABLE OF CONTENTS
Icon Legend................................4
Notices....................................5
Pole Assembly............................6
Pole to Base Assembly...............10
Backboard to Rim Assembly.......15
Backboard to Pole Assembly.......19
Parts Identifi er..........................i-iv
Handle Assembly.......................23
Final Assembly..........................29
Maintenance Instructions..........35
Warning Sticker........................36
Registration........................40
Warranty................................41
MODEL# AND PRODUCT ID
Model Number: 90227
Product ID:
