Mounting Cutting Tools

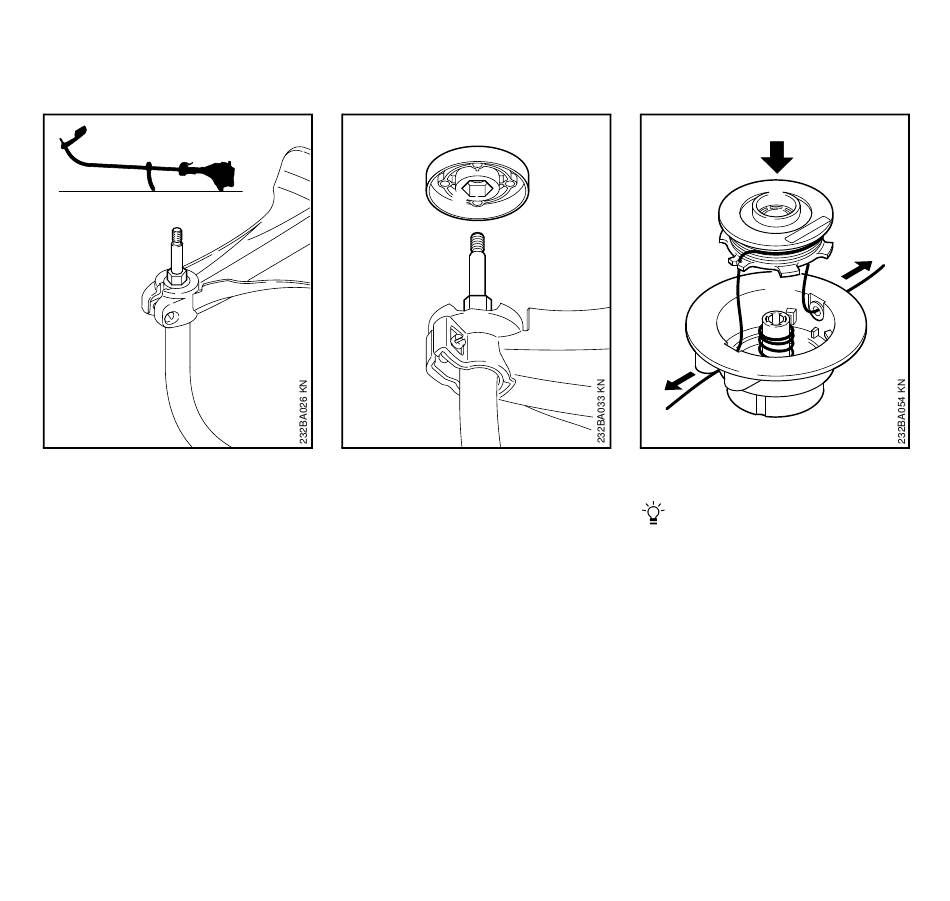

Preparations
: Lay your trimmer on its back with
the loop handle and shroud pointing
down and the output shaft facing up.
FS 38
1
3
2
4
Thrust Plate
The thrust plate is shipped with the
Polycut 6-3 and FixCut 5-2. It is only
required for these mowing heads.
AutoCut 5-2 mowing head
AutoCut C 5-2 mowing head
: Pull the thrust plate (1) (if fitted) off
the shaft (2).
STIHL PolyCut 6-3 mowing head,
STIHL FixCut 5-2 mowing head
: Slip the thrust plate (1) over the
shaft (2) and engage hexagon
recess (3) on external hexagon (4).
4
2
1
3
Mounting the Mowing Head
Keep instruction sheet for mowing
head in a safe place.
Assembling STIHL AutoCut 5-2
: Fit the spring (1) in the head (2).
All other steps are described in the
instruction sheet provided.
: Wind the nylon lines (3) onto the
spool (4).
: Thread the ends of the nylon lines
through the sleeves and place the
spool in the head.
