4 Safety Precautions

4 Set Wheel
Used to select the power level.
5 Retaining Latch
Operated together with the trigger lockout to
unlock the trigger.
6 Trigger Lockout
Locks trigger in position.
7 Trigger
The trigger switches the motor on and off.
8 Loop Handle
For holding and controlling the trimmer.
9 Barrier Bar
Maintains distance between operator's leg
and a metal cutting attachment.
10 Drive Tube
Connects all components.
11 Stop Pin
Blocks shaft while cutting attachment is being
mounted.
12 LEDs
Indicate battery's state of charge and mal‐
functions.
13 Button
Activates the LEDs on the battery.
14 Battery
Supplies power to the trimmer.
# Rating label with serial number
3.3 Deflectors and Cutting Attach‐
ments

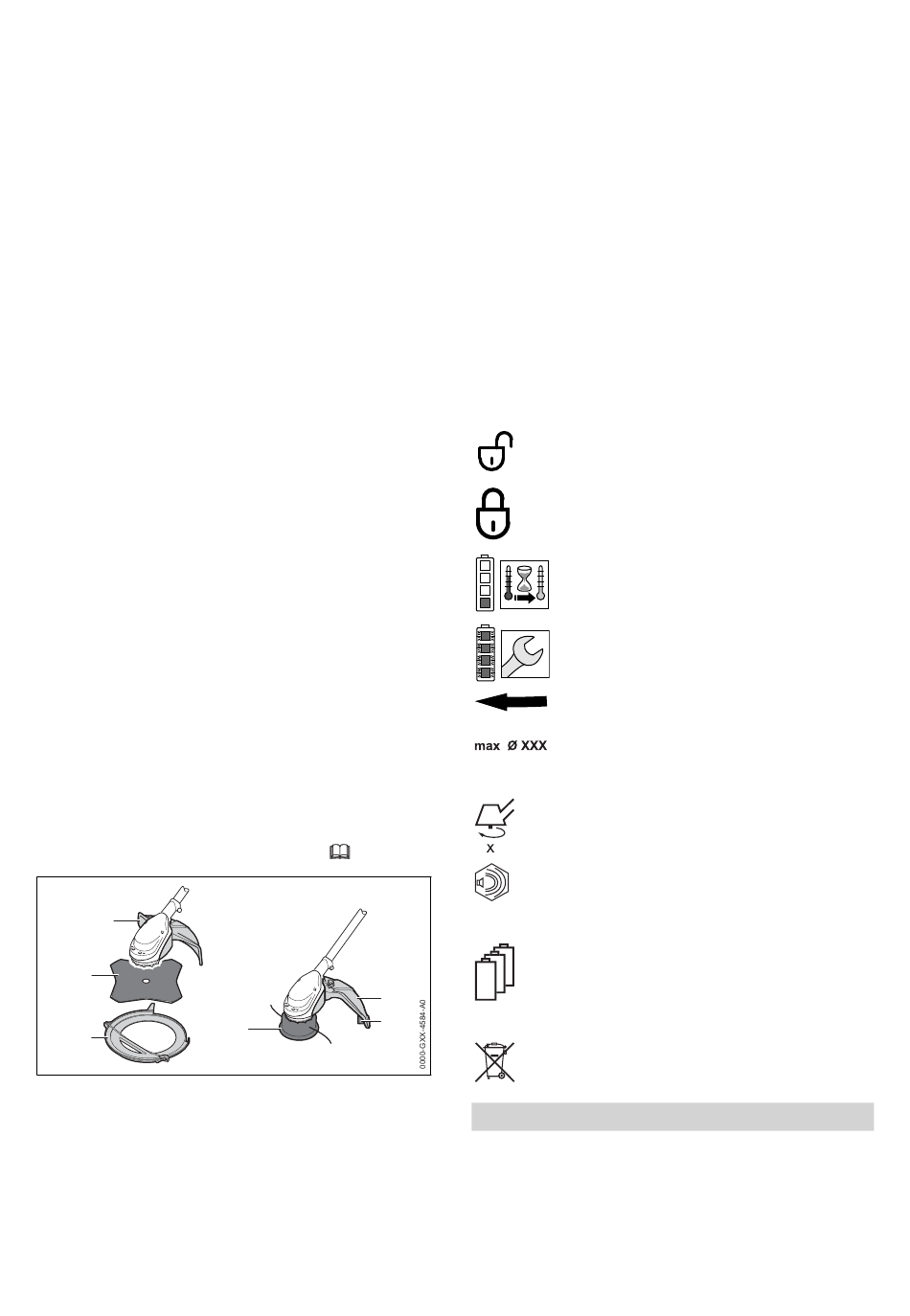

The illustrations show examples of deflectors
and cutting attachments. Approved combinations
are listed in this instruction manual,
1
2
3
1 Deflector for metal cutting attachments
The metal cutting tool guard protects the user
from thrown objects and contact with the
grass cutting blade or brush knife.
2 Grass Cutting Blade
Cuts grass and weeds.
0458-709-9921-C
21.
5
4
6
3 Transport guard
Helps protect user from contact with metal
cutting attachments.
4 Line limiting blade
Line limiting blade trims nylon lines to correct
length.
5 Deflector for mowing heads
Protects user from flying debris and contact
with the mowing head.
6 Mowing head
Moving head accommodates the mowing
lines.
3.4 Symbols
Meanings of symbols that may be on the trim‐
mer, deflector and battery:
Retaining latch unlocks the trigger in this
position.
Retaining latch locks the trigger in this
position.
1 LED glows red. Battery too hot or too
cold.
4 LEDs flash red. There is a malfunc‐
tion in the battery.
This symbol shows the direction of
rotation of the cutting attachment.
This symbol shows the maximum
diameter of the cutting attachment in
millimeters.
This symbol shows the rated speed of the
cutting attachment.
Guaranteed sound power level accord‐
L
ing to directive 2000/14/EC in dB(A) in
WA
order to make sound emissions of
products comparable.
The data next to this symbol indicates the
energy content of the battery according to
the cell manufacturer's specification. The
energy content available during operation
is lower.
Do not dispose of the product with your
household waste.
4 Safety Precautions
4.1

Warning Symbols

Meanings of warning signs on the trimmer and
battery:
