Step 3: Horizontal surface preparation
•

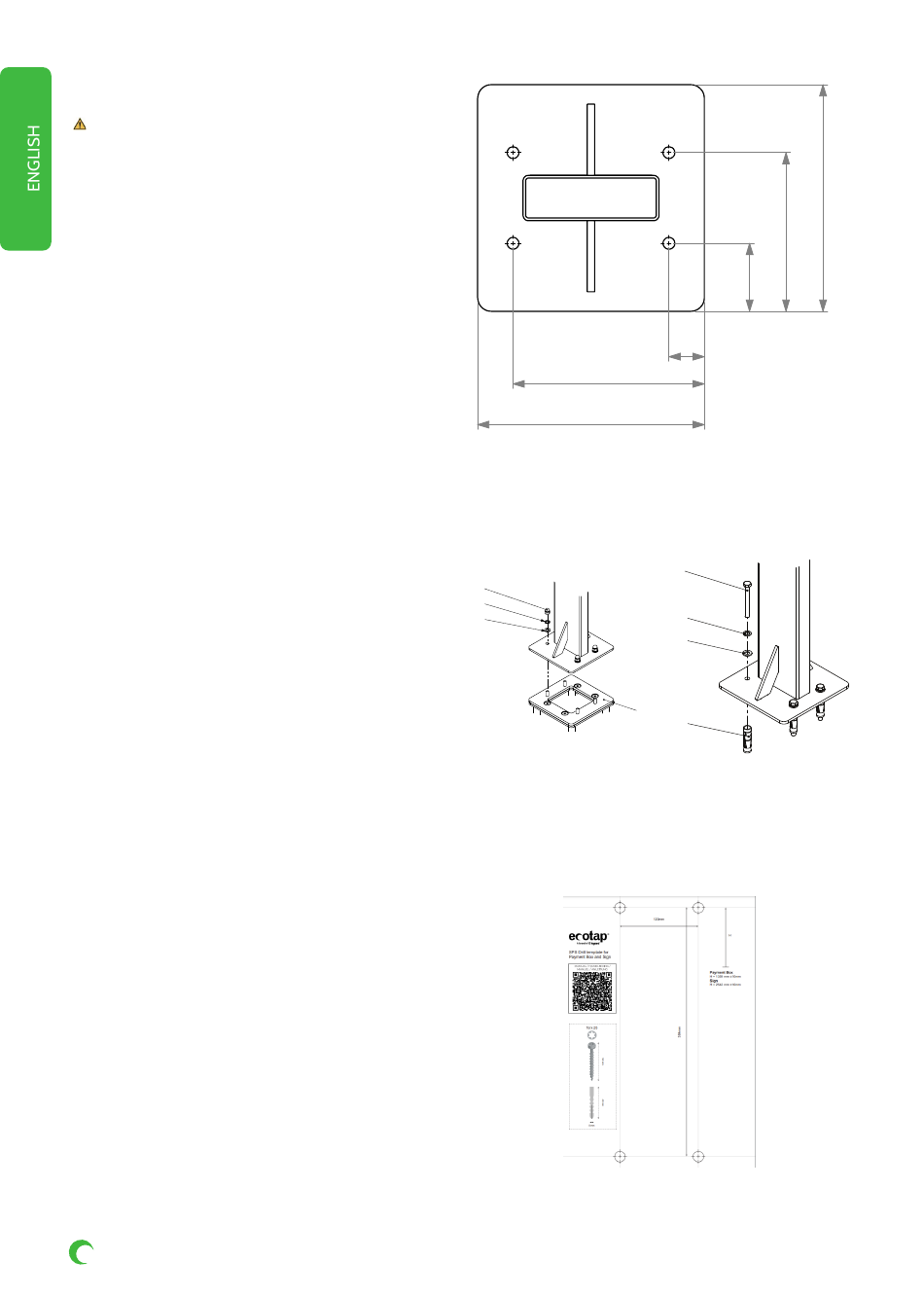

Use the pencil (T4) to mark the drilling pattern according
to the figure. The stand (P9) can be used for marking
WARNING: This installation procedure is intended for
concrete floors. If other surfaces are used, the appropriate
mounting materials must be used.
•
Drill the hole using a power dill (T1) with 20 mm drill bit
(T3). Drill at least 90 mm deep.
•
Insert the expansion shield anchors (P13) into the holes.
Step 4: Stand mounting
•
This requires the Stand accessory.
•
Place the stand on the allocated position and mount
using the ring (P14), lock ring (P15) and domed cap
nut (P19) when mounting on the foundation. Use the
provided hex bolts (P12), rings (P14) and lock rings (P15)
otherwise.
•
If no stand extension (785016) is installed, place the
stand cap (P10) on top of the stand and the push screws
(P11) in the holes on the side.
Proceed to step 6.
Step 5: Vertical surface preparation
•
Use the drill template (P8) and a spirit level (T12) to
mark the drilling holes.
•
Drill holes using the power drill (T1) and 6 mm drill bit
(T2) at the marked locations.
•
Insert plugs (P6) into the drilled holes.
•
The upper mounting holes must be located 1.36m from
the ground
30. www.ecotap.nl
211
250
P19
P15
P14
P18
250
175
75
39
P12
P15
P14
P13
