Step 1: Choose location
•
Choose a suitable mounting surface. The Payment Box can be installed on a solid vertical surface. In combination with
the Stand accessory, it can be installed on a solid horizontal surface. In combination with the Stand and Foundation
accessory, it can be installed on soft horizontal surfaces such as sandy soil.
WARNING: Always ensure the mounting surface is able to hold the weight of the product. This installation procedure is
intended for concrete or brick walls. If other surfaces are used, the appropriate screws and/or plugs must be used.
•
Always consult local accessibility regulations.
When installing on the foundation accessory, proceed to step 2.
When installing on a solid horizontal surface, proceed to step 3.
When installing on a vertical surface, proceed to step 5.
Step 2: Creating a solid horizontal surface
•
This requires the Foundation accessory.
•

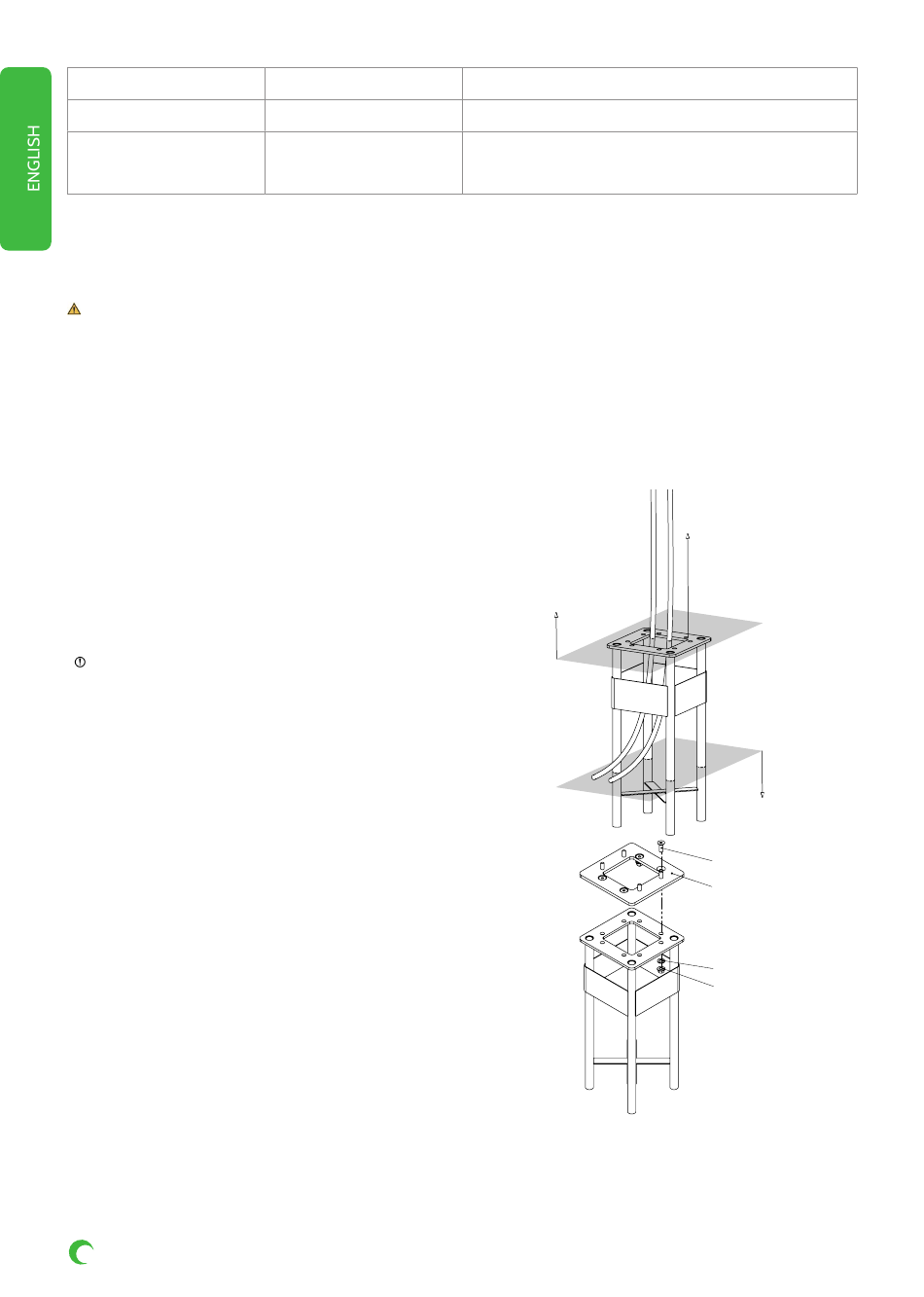

Dig a hole that fits the foundation, i.e. 250 x 250 x 650
mm (W x D x H), using a spade (T14)..
•
Place the foundation (P17) and ensure that the
foundation can be placed level using a spirit level (T12).
•
Fill the space surrounding the foundation with concrete
(M1) using the concrete product guideline. Fill the space
up to the level as indicated in the figure. Ensure that the
foundation stays level.
Attention: Always ensure the foundation is set in concrete
up to the level as indicated in the figure, otherwise the
product' s resistance against mechanical impact will not be as
expected.
•
Run the incoming cabling (230V power and ethernet)
through the foundation. Ensure that at least 1800mm
wire length is available above ground level.
•
Place the bolt brackets (P18) via the bottom through
the holes in the top plate of the foundation. It is held in
place by the magnet in the centre.
•
Fill the remaining space with soil up to ground level.
29. www.ecotap.nl
Spade
Concrete
Thread lock
-
Only required for fixating foundation accessory.
To seal threaded fasteners. Recommended product: Loctite
2701. Only required when mounting on the stand
accessories
Maaiveld
Vereiste kabellengte
boven de grond
1800mm
Betonniveau
P27
P18
P14
P17
25-02-25
