11.4 minimum combustible mantel clearances
WARNING
!
• Risk of fire. Maintain all specified air space clearances to combustibles. Failure to comply with these
instructions may cause a fire or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top,
vent, mantel, front, etc.) are clearly maintained.
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent
discolouration.
• Installing a television or other electronics above the appliance may cause discolouration, melting, or damage
to the electronics. Use clearances as guidelines and refer to your TV manufacturer's instructions for further
information.

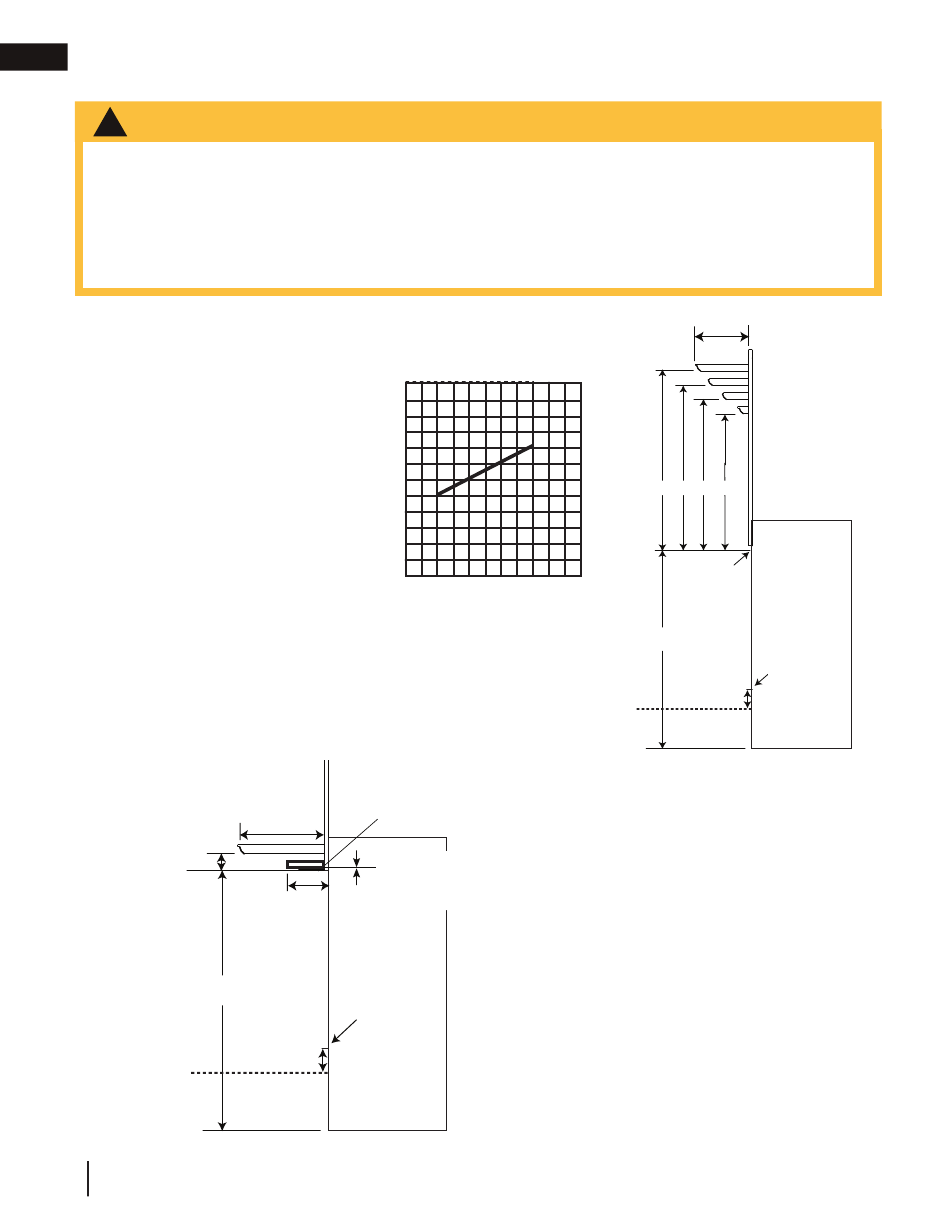

Combustible mantel clearance can
vary according to the mantel depth.
Use the graph to determine the
clearance needed.
Installing a mantel between this
appliance and electronics or other
materials that may be sensitive to
heat, will reduce the effect of direct
heat on them. Ensure mantel is
properly sized (width & depth) to suit
the object being mounted above.
Follow mantel height restrictions for
proper clearance according to the
depth of the mantel.
A non-combustible mantel is
considered a non-combustible
protrusion, see "finishing" for
protrusion restrictions.
MANTEL DEPTH
MANTEL
HEIGHT
17.7/8" (454mm)
33 7/8" (860mm)
A
Optional hearth
extension
56
W415-4127 / B-0 / 03.25.24
24
22
20
18
M H
16
E
A E
14
D
N I
12
T G
10
E H
8
L T
6
4
2
0
A
12" (305mm)
Top of
finishing flange
0" clearance
(projection to
finishing flange)
4" (38mm)
max.
projection
Bottom of
finishing flange
2" (51mm)
Bottom of the
appliance
C B
1 2 3 4 5 6 7 8 9 10 11
MANTEL DEPTH
Optional
hearth
extension
Installing a mantel between this appliance and
electronics or other materials that may be sensitive
to heat, will reduce the effect of direct heat on them.
Follow mantel height and depth instructions for proper
clearance information. A non-combustible mantel is
considered a non-combustible protrusion.
MANTEL DEPTH
MANTEL HEIGHT
Top of
finishing
flange
Bottom of
33 7/8" (860mm)
finishing
A
flange
2" (51mm)
Bottom of the
appliance
