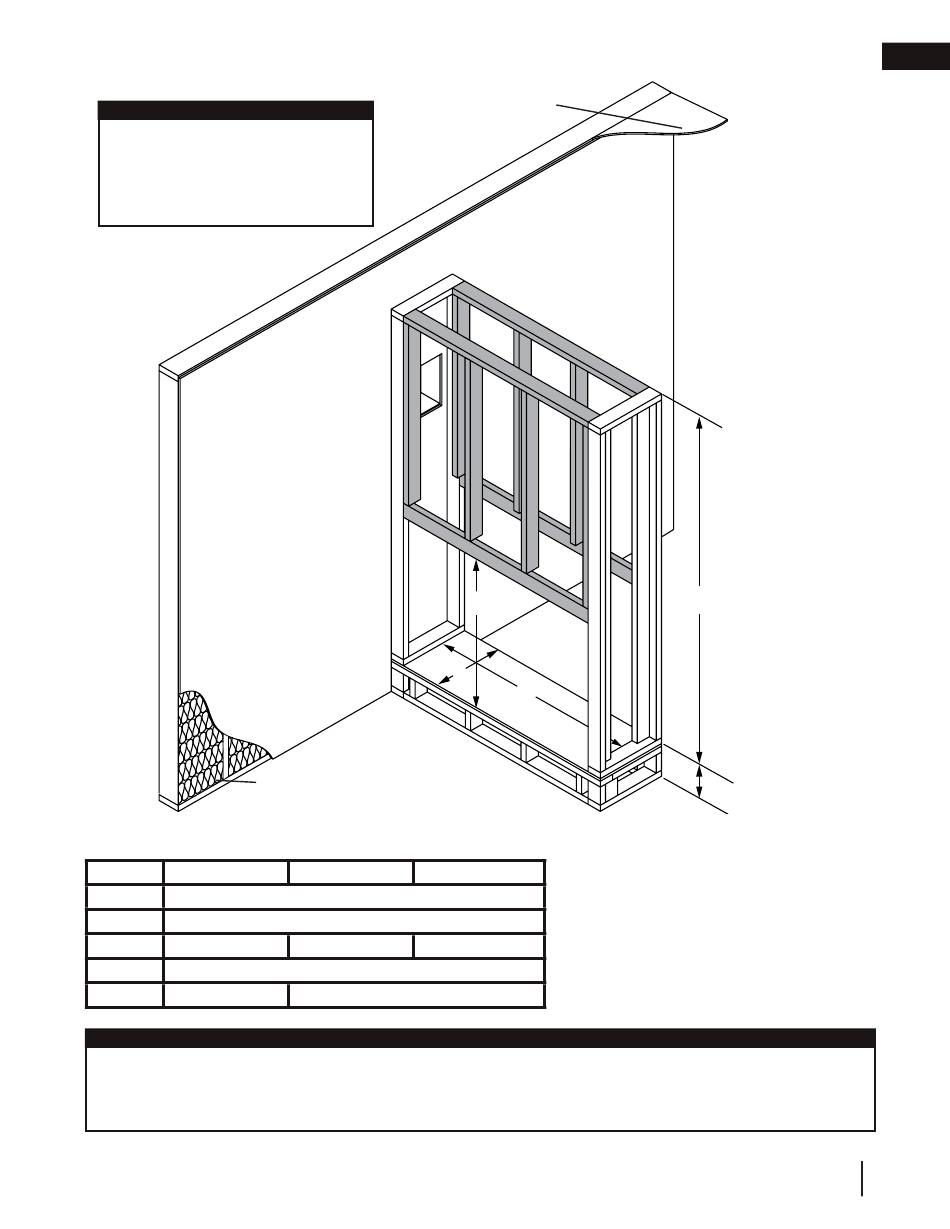

see-through flush
note:
Shaded components (finish framing)
must be non-combustible materials.
Finish framing must be built after the
appliance has been placed in its final
position and venting connected.
Drywall
Insulation
minimum framing
Ref TLV50L2
K
E
F 65 13/16" (1672mm)
J Optional - Appliance does not need to be elevated above floor
L 73" (1854mm)
note:
The LV series requires a minimum enclosure/ceiling height, as illustrated (dimension L), measured from the bottom of
the appliance. For temperature requirements, this area must be left unobstructed. Some venting configurations that
require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent pipes and
combustibles.
finish framing - after appliance installation
K
E
TLV62L2 TLV74L2
48 3/16" (1224mm)
16 3/16" (411mm)
77 13/16" (1976mm) 89 13/16" (2281mm)
91" (2311mm)
Ceiling
F
L
J
W415-4127 / B-0 / 03.25.24
EN
51
