Before framing your appliance, determine vent requirements before deciding the final location of the appliance. After
rough framing, place the appliance in its final position.
single-sided
minimum framing
Ref
TLV50L
E
F
65 13/16" (1672mm)
J
Optional - Appliance does not need to be elevated above floor
L*
73" (1854mm)
see-through
minimum framing
Ref
TLV50L2
E
F
65 13/16" (1672mm)
J
Optional - Appliance does not need to be elevated above floor
*L
73" (1854mm)

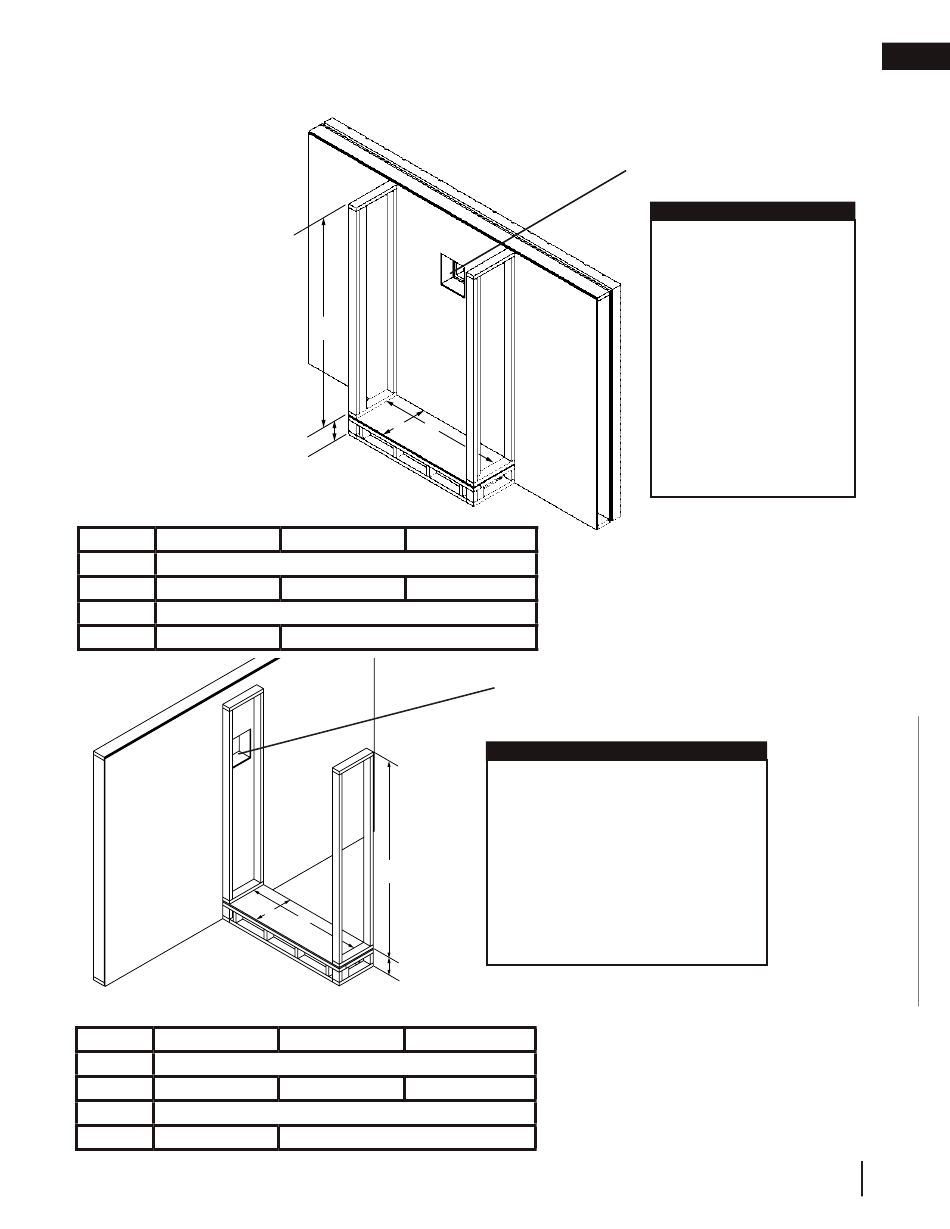

rough framing - before appliance installation
L
E
F
J
TLV62L
20 1/8" (511mm)
77 13/16" (1976mm)
89 13/16" (2281mm)
91" (2311mm)
L
E
F
J
TLV62L2
16 3/16" (411mm)
77 13/16" (1976mm)
89 13/16" (2281mm)
91" (2311mm)
TLV74L
Before framing a see-through appliance,
ensure to install the firestop first as it will not fit
between the studs if installed after framing.
note:
The TLVL series requires a minimum
enclosure/ceiling height, as illustrated
(dimension L), measured from the
bottom of the appliance. For tempera-
ture requirements, this area must be left
unobstructed. Some venting configura-
tions that require more vertical rise will
require a larger enclosure to provide
minimum vertical clearance between
vent pipes and combustibles.
TLV74L2
*Minimum enclosure/ceiling height may be
higher depending on venting configuration
(See minimum clearance to combustibles).
Before framing an appliance, ensure
to install the firestop first.
note:
The TLV series requires a
minimum enclosure/ceiling
height, as illustrated
(dimension L), measured
from the bottom of the
appliance. For temperature
requirements, this area must
be left unobstructed. Some
venting configurations that
require more vertical rise will
require a larger enclosure
to provide minimum verti-
cal clearance between vent
pipes and combustibles.
W415-4127 / B-0 / 03.25.24
EN
31
