Unibox T-RTL R-Tronic
6 5

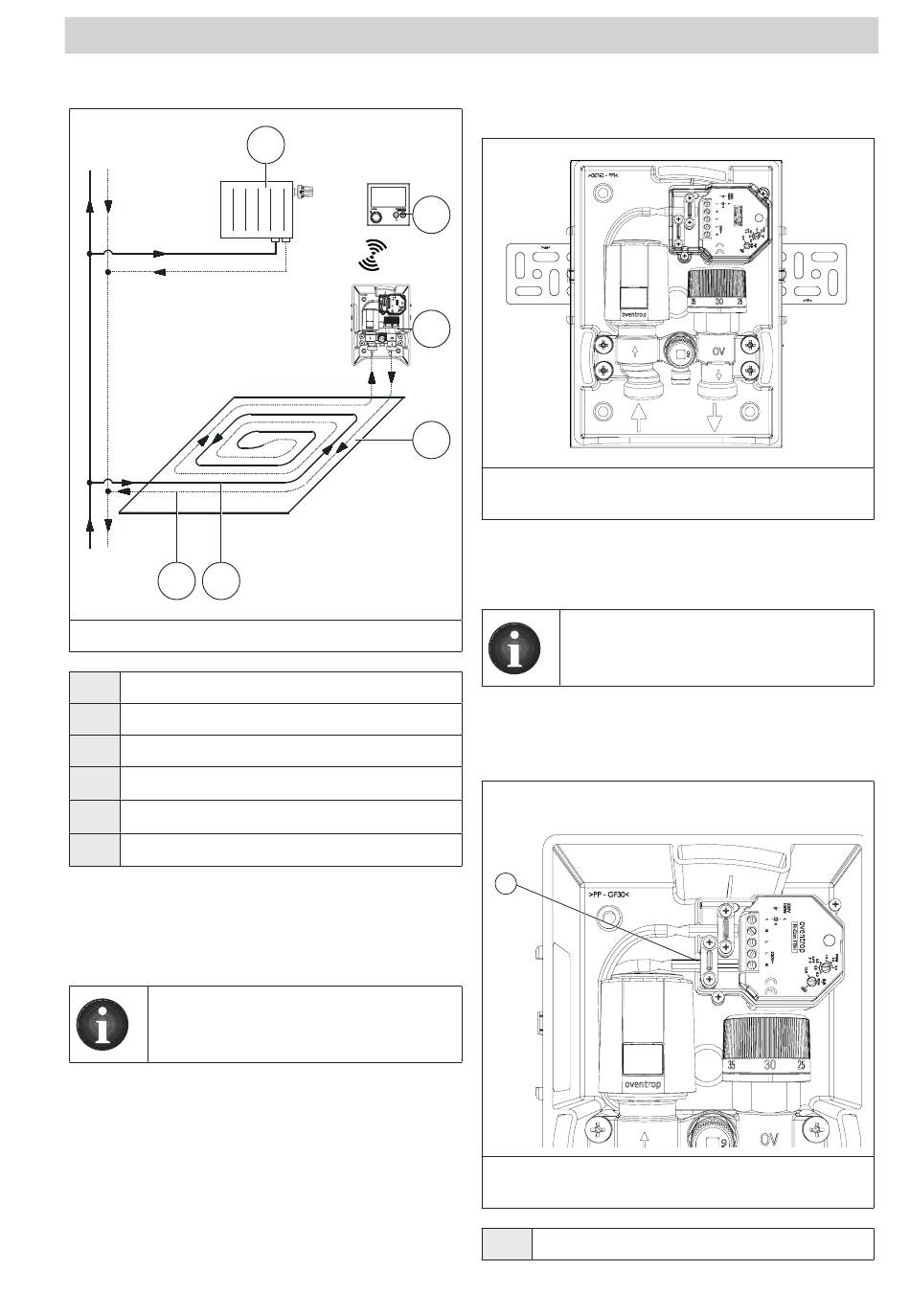

Illust. 8: Connection
(1) Radiator
(2) Wireless thermostat "R-Tronic"
(3) "Unibox T-RTL R-Tronic"
(4) Surface temperature balance circuit
(5) Supply
(6) Return
1. Provide a branch from the supply pipe of
the two pipe heating system.
2. Lay the surface temperature balance
circuit.
Lay the heating circuit in a spiral
pattern to achieve an even heat
distribution.
3. Remove the protection cover of the "Uni-
box T-RTL R-Tronic" and the front cover
of the pipe conduit unit (you must refit the
protection cover and the front cover after
commissioning) and insert the "Unibox
T-RTL R-Tronic" into the pipe conduit unit.
4. Use the enclosed brackets (see 1.2 on
page 25) to align and fix the "Unibox
102273780-V01.09.2019
1
4
3
2
2
3
4
T-RTL R-Tronic" in the pipe conduit unit.
Illust. 9: "Unibox T-RTL R-Tronic" with
brackets
5. Connect the pipework of the surface
temperature balance circuit to the "Unibox
T-RTL R-Tronic".
Observe the marked flow direction.
6. Provide a connecting pipe between the
"Unibox T-RTL R-Tronic" and the return
pipe of the two pipe heating system.
1
Illust. 10: Electrical connection of the wireless
receiver "R-CON FBH"
(1) Electrical connection "R-CON FBH"
Installation
