Installation

6. Installation

6.1 General installation advice

Note the following prior to installation:
• The lower edge of the "Unibox T-RTL
R-Tronic" must be at least 20 cm above the
finished floor.
• The front face of the "Unibox T-RTL R-Tron-
ic" must be level with the finished wall.
Should the wall not have been
finished, take the plaster and tile
thickness into account.
• The opening of the wall box unit must face
downwards.
• The thermostat must not be influenced by
other heat sources.
• Use the enclosed brackets to align and fix
the "Unibox T-RTL R-Tronic".
• There is a blue dot on the wall box unit. A
hole can be drilled at this location in order
to feed through a cable.
• If necessary, use an empty pipe for cable
routing.
NOTICE
Risk of damage due to lubri-
cants
Seals may be destroyed by greasing
agents or oil.
f Do not use any greasing agents or
oil for the installation.
f Flush any dirt particles or grease or
oil residues out of the pipework.
f Consider the latest technical status
(e.g. VDI 2035), when choosing the
operating fluid.
30
Unibox T-RTL R-Tronic
1
2
3
4
5
6
7

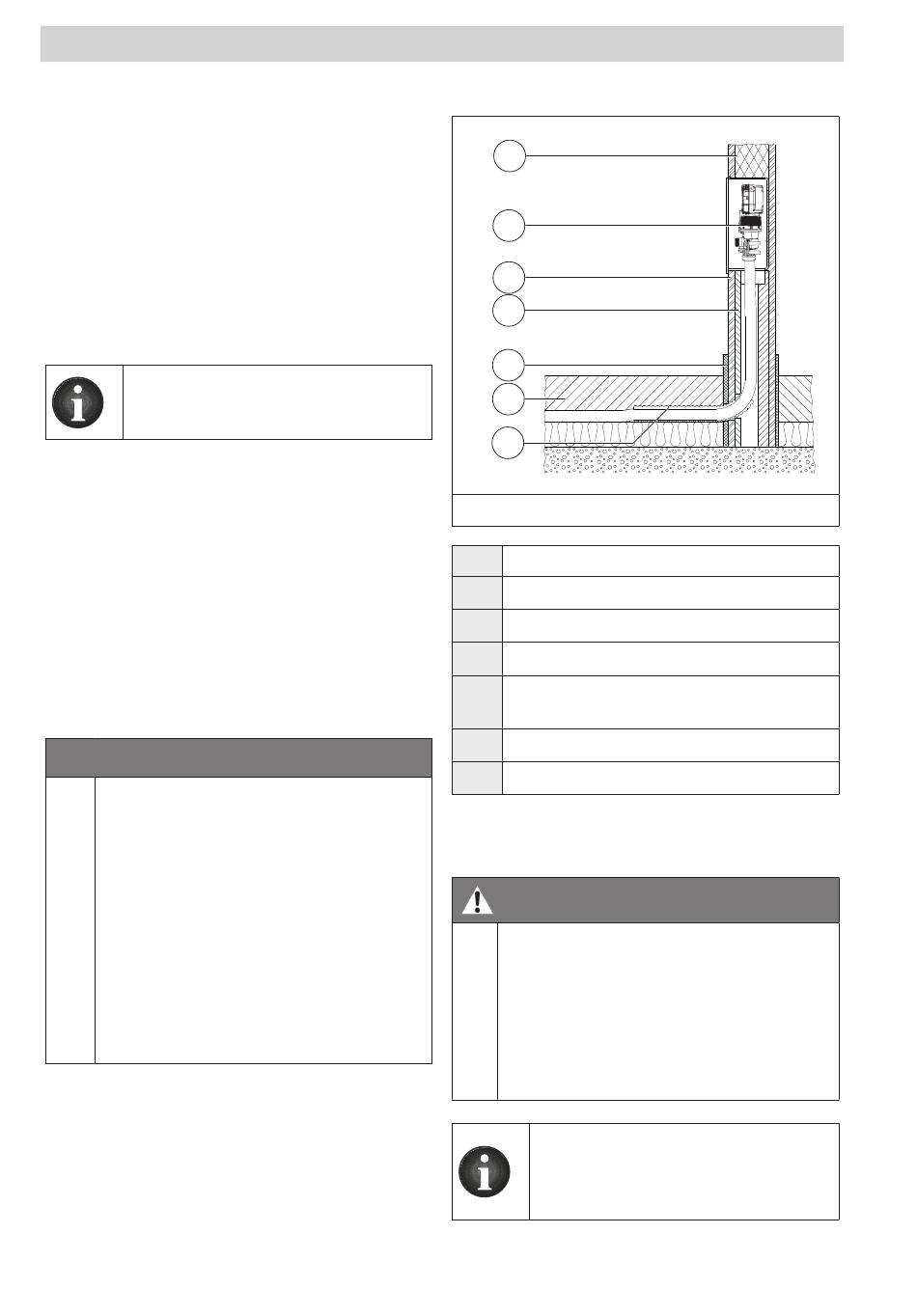

Illust. 7: Installation cross section
(1) Block or stud wall
(2)
"Unibox T-RTL R-Tronic"
(3)
Plaster
(4)
Pipe conduit unit (separate accessory)
(5) Edge insulating strip (separate acces-
sory)
(6) Screed
(7) Protective tube (separate accessory)
6.2 Installation of the "Unibox
T-RTL R-Tronic"
DANGER
Danger to life due to electric
current
Danger to life due to contact with live
components.
f The electrical connection must
only be carried out by a qualified
electrician.
The "Unibox T-RTL R-Tronic" must
always be located at the end of the
surface temperature balance circuit
(see 3.3 on page 27).
102273780-V01.09.2019
