Technical description
of the fluid being transported and opens and
closes the valve accordingly.
The recommended control range is
between approx. 25°C and approx.
40°C.

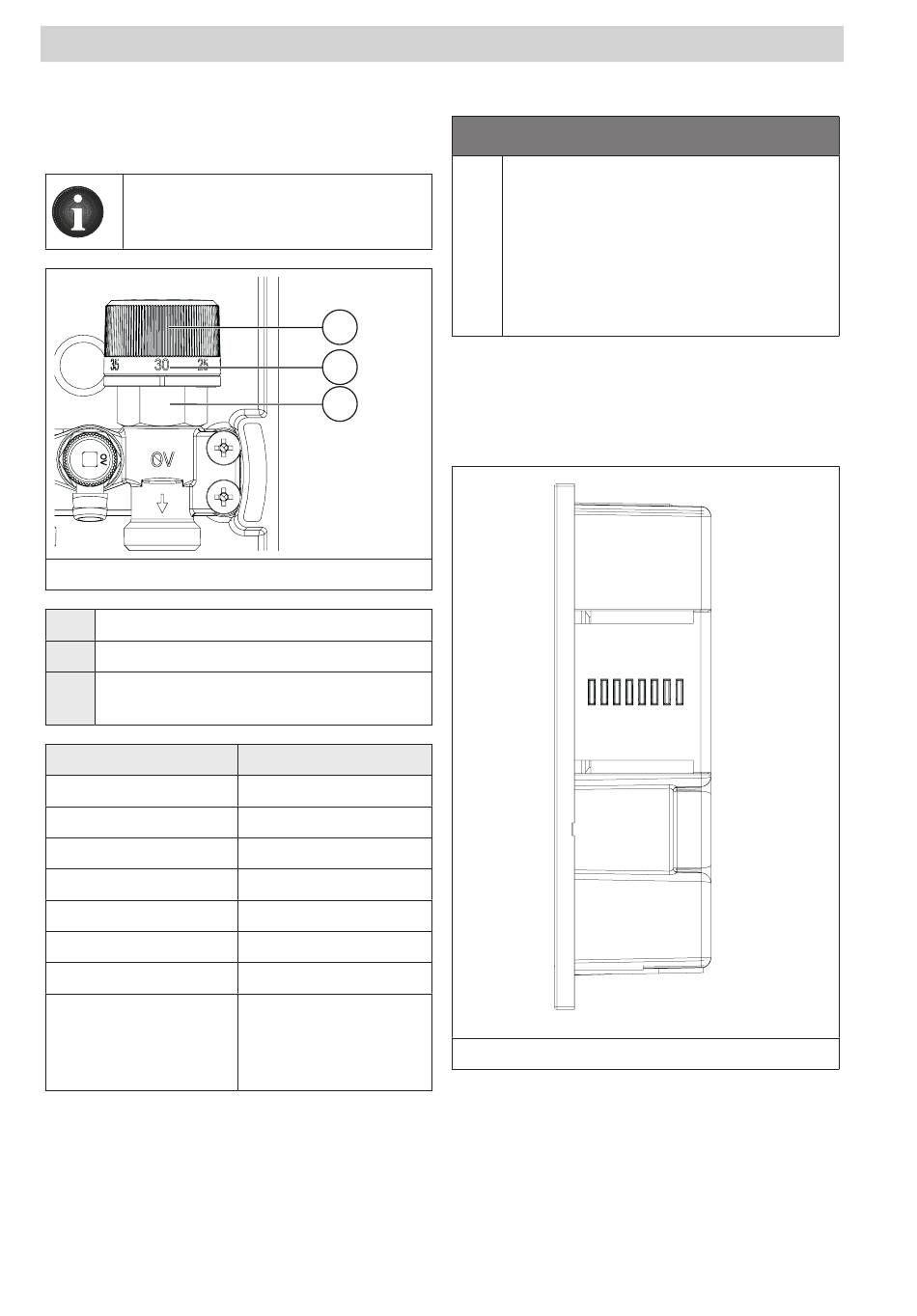

Illust. 4: Handwheel
(1)
Handwheel
(2) Graduation figure
(3) Valve with presettable insert and inte-
grated return temperature limiter
Graduation figure
0
10
20
25
30
35
40
-
28
1
2
3
Temperature
(Valve fully closed)
10°C
20°C
25°C
30°C
35°C
40°C
(Valve fully open
until a temperature of
approximately 43°C
has been reached)
Unibox T-RTL R-Tronic
NOTICE
Damage to the screed as a re-
sult of incorrect temperatures
f Observe the instructions of the
screed manufacturer.
f Do not exceed the screed temper-
ature specified as per DIN 1264-4
near the heating pipes.
3.5 Cover
The cover can be infinitely pulled out up to 20
mm.
Illust. 5: Cover in retracted position
