Roger Technology H70/200AC Instructions Et Consignes Pour L'installateur page 74

14

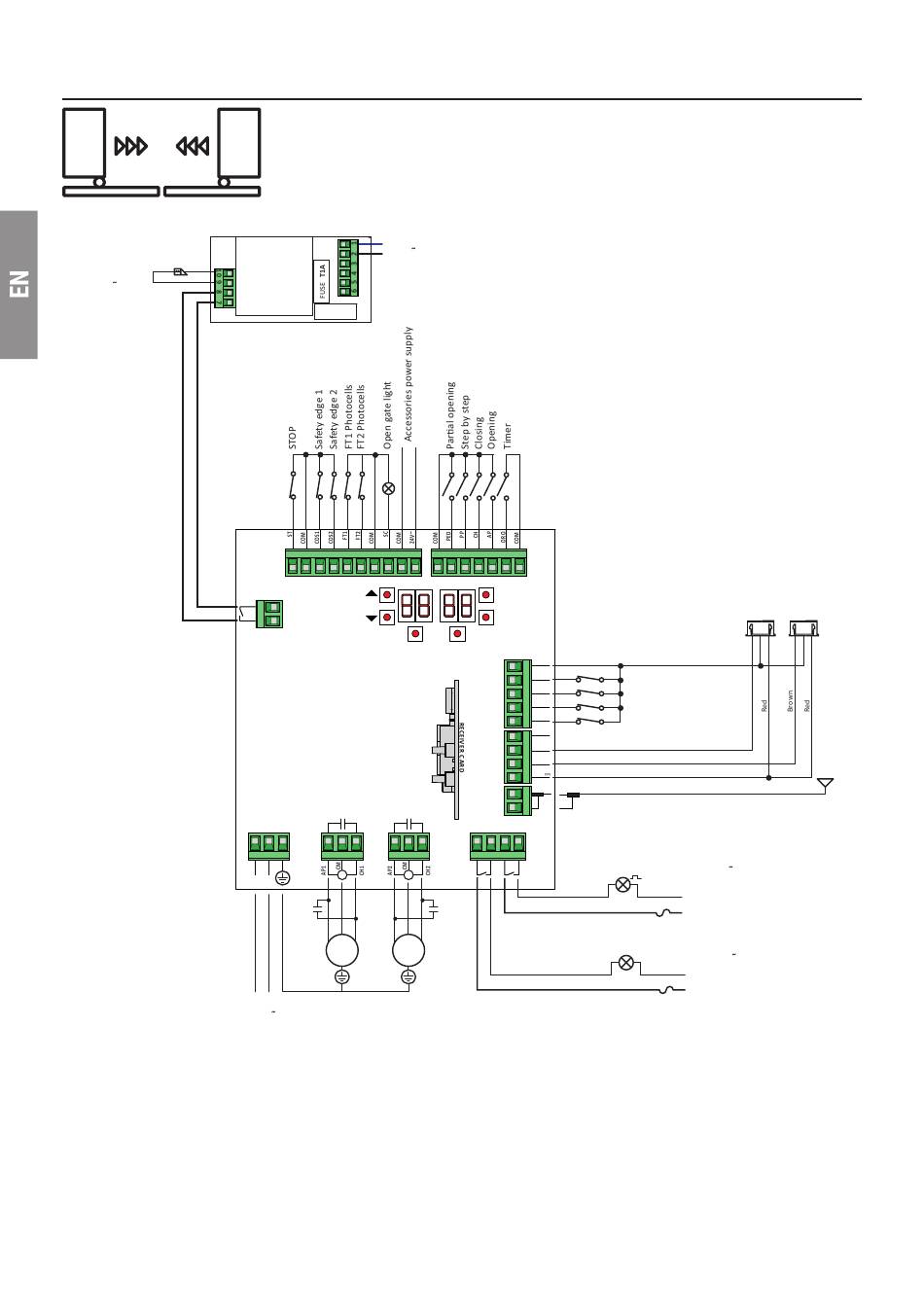

Example installation with two opposing automation systems
A B
Electric Lock
12 V
16 VA
74
Two opposing sliding gate automation system may be connected to a single
H70/200AC control unit.
Connect automation system A to terminals AP1-CM-CH1 and connect
automation system B to terminals AP2-CM-CH2.
N
H70/EL
230 V
L
F1
F2
FUSE T2A
ES
PROG
H70/200AC
M M
L N
M1 M2
L N
230V
+
-
TEST
COM
FCC2
FCA2
FCC1
FCA1
COM
ENC2
ENC1
+5V
ANT
COM
COR LAM
ENC2 ENC1
Blue Blue
Closing limit switch 2
Opening limit switch 2
Closing limit switch 1
Opening limit switch 1
Brown
RG58 max 10 m
230 V 40 W
Flashing light
N
L
FUSE F200mA
230 V 100 W
Courtesy light
N
L
FUSE max 1A
Antenna
