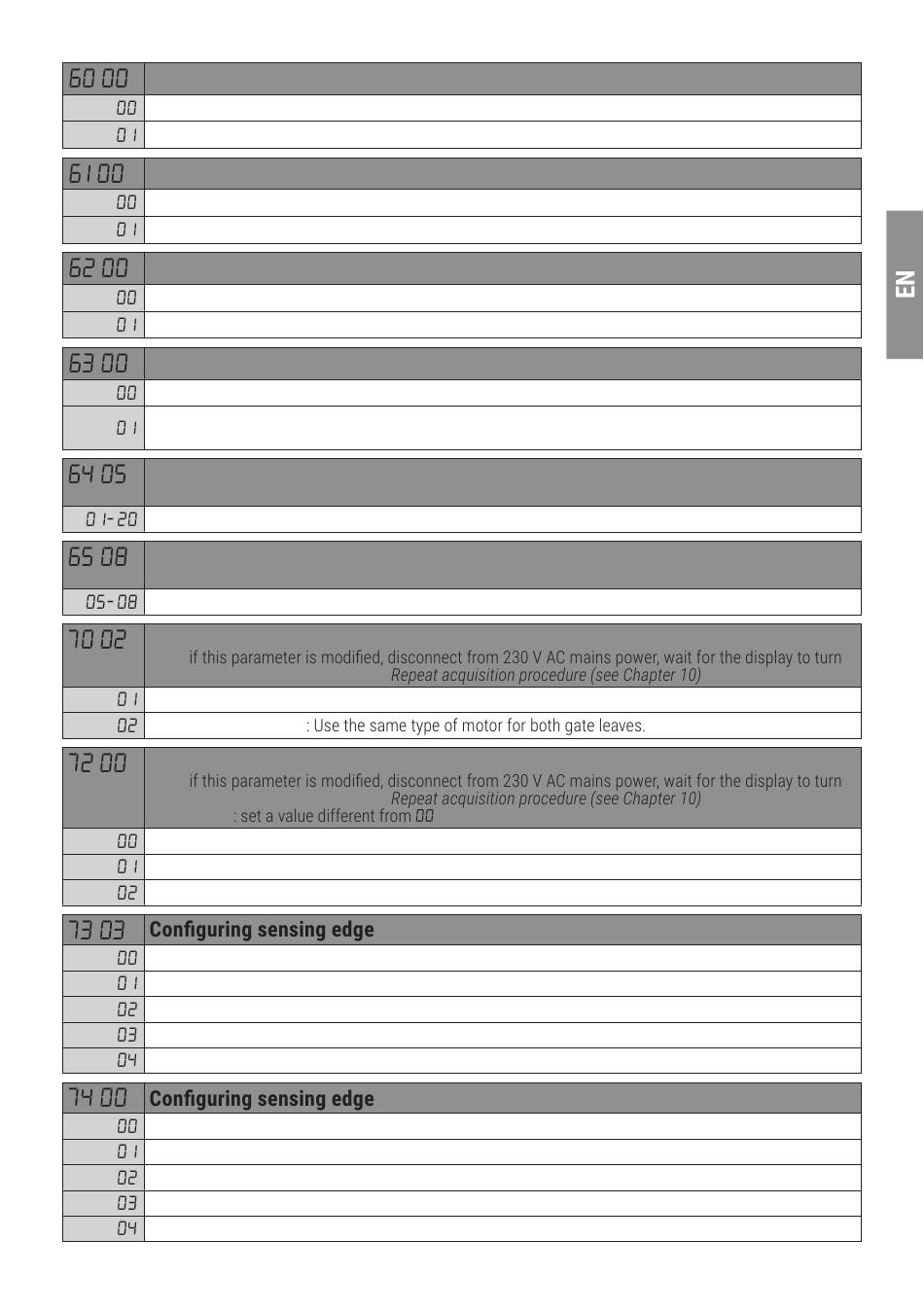

Roger Technology H70/200AC Instructions Et Consignes Pour L'installateur page 71

Enable braking at open and closed mechanical stop/limit switch
Disabled.
Enabled. The gate brakes at the end of the manoeuvre against the mechanical open and/or closed stop.
Enable braking after activation of photocells
Disabled.
Enabled. The gate brakes when the photocells are activated.
Enable braking after STOP command
Disabled.
Enabled. The gate brakes when the control unit receives a STOP command.
Enable braking after open > close / close > open inversion
Disabled.
Enabled. The gate brakes before inverting direction when the control unit receives a close command
while the gate is opening, or an open command while the gate is closing.
Set braking time
WARNING: preferably set low values to ensure that the gate stops correctly.
Settable from 1 to 20 tenths of a second.
Set braking force
CAUTION: it is advisable to check that the value set guarantees the best braking.
5 = minimum force ... 8 = maximum force.
Select number of motors installed
N.B.:
off then reconnect to mains power.
1 motor.
2 motors. IMPORTANT
Enable limit switches
N.B.:
off then reconnect to mains power.
ATTENTION
No limit switch installed.
Gate open and close limit switches installed.
Gate open limit switches installed.
Sensing edge NOT INSTALLED.
NC contact (normally closed). The gate reverses only when opening.
Contact with 8k2 resistor. The gate reverses only when opening.
NC contact (normally closed). The gate always reverses.
Contact with 8k2 resistor. The gate always reverses.
Sensing edge NOT INSTALLED.
NC contact (normally closed). The gate reverses only when closing.
Contact with 8k2 resistor. The gate reverses only when closing.
NC contact (normally closed). The gate always reverses.
Contact with 8k2 resistor. The gate always reverses.
only if the limit switch is connected to the control unit.
COS1
COS2
.
.
