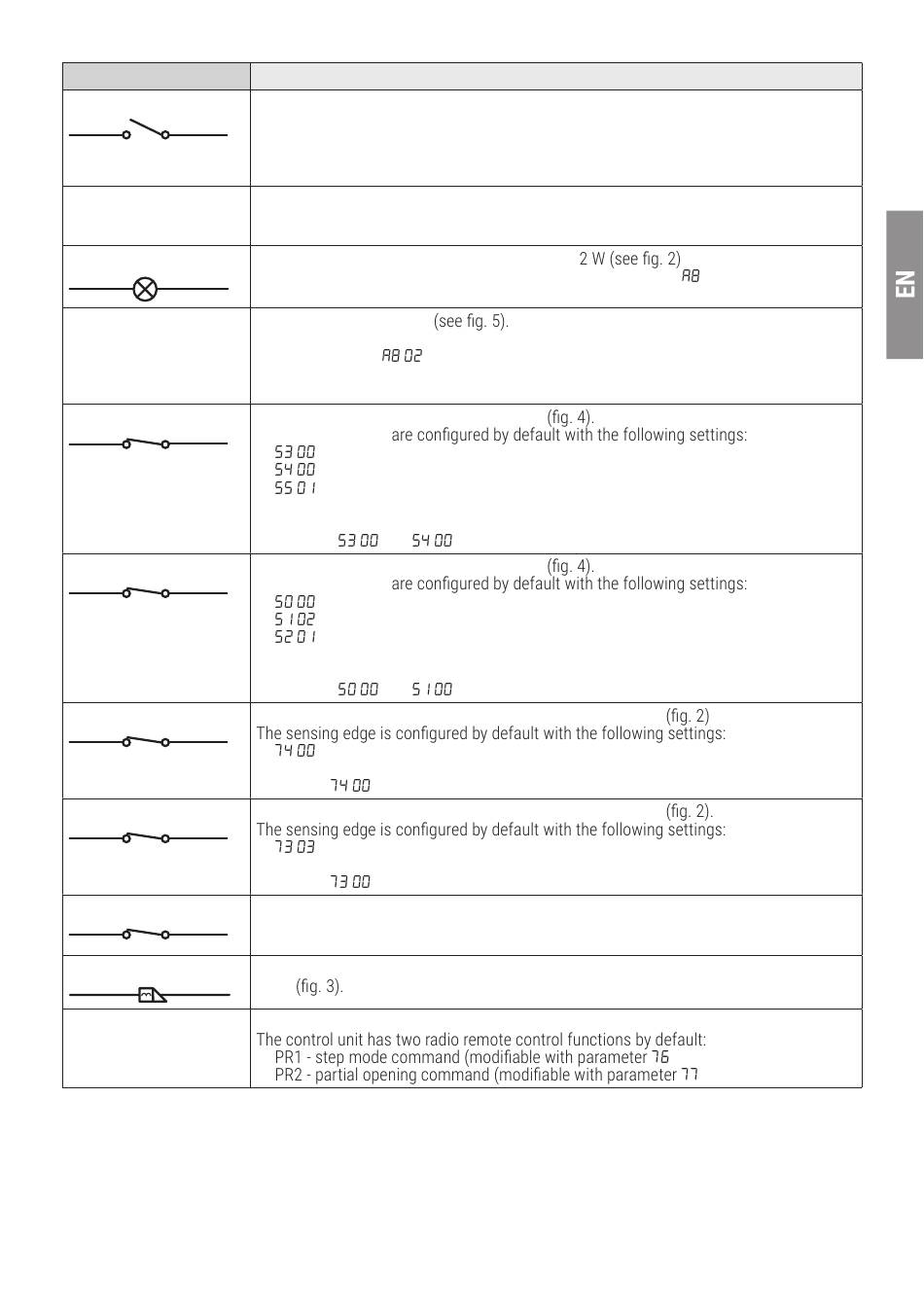

CONTACT
30(PED) 31(COM)
32(24V~) 33(COM)
34(SC) 35(COM)
34(SC) 35(COM)
36(FT2) 33(COM)
37(FT1) 33(COM)
38(COS2) 40(COM)
39(COS1) 40(COM)
41(ST) 40(COM)
46(ES) 47(COM)
RECEIVER CARD
DESCRIPTION
Partial open control signal input (N.O.).
On double leaf gate automation systems, by default, the partial opening command opens
LEAF 1 completely.
With single leaf swing gate installations, by default, partial opening is 50% of total ope-
ning.
Power feed for external devices 24V~ 9 W.
Connection for gate open indicator lamp 24 V~
The function of the indicator lamp is determined by parameter
Photocell test connection
The power feed for the photocell transmitters (TX) may be connected to terminal 34(SC).
Set the parameter to enable the test function.
Each time a command is received, the control unit switches the photocells off and on to
check that the contact changes state correctly.
Input (N.C.) for connecting photocells FT2
The photocells FT2
– . Photocell FT2 is disabled when gate is opening.
– . Photocell FT2 is disabled when gate is closing
– . The gate opens when an open command is received if photocell FT2 is
obstructed.
If the photocells are not installed, jumper the terminals 36(FT2) - 33(COM) or set the
parameters and
Input (N.C.) for connecting photocells FT1
The photocells FT1
– . Photocell FT1 is disabled when gate is opening.
– . Movement is reversed if the photocell is triggered during gate closure.
– . The gate opens when an open command is received if photocell FT1 is
obstructed.
If the photocells are not installed, jumper the terminals 37(FT1) - 33(COM) or set the
parameters and
Input (N.C. or 8.2 kOhm) for connecting sensing edge COS2
– . The sensing edge COS2 is disabled.
If the sensing edge is not installed, jumper the terminals 38(COS2) - 40(COM) or set the
parameter .
Input (N.C. or 8.2 kOhm) for connecting sensing edge COS1
– . If the sensing edge COS1 is enabled, the gate always reverses.
If the sensing edge is not installed, jumper the terminals 39(COS1) - 40(COM) or set the
parameter .
STOP command input (NC).
The current manoeuvre is arrested if the safety contact opens.
N.B.: the controller is supplied with this contact already jumpered by ROGER TECHNOLOGY.
Connection for external power supply for electric lock (potential free contact) 12 V~ max
15VA
Connector for plug-in radio receiver board.
–
–
.
.
.
.
).
).
