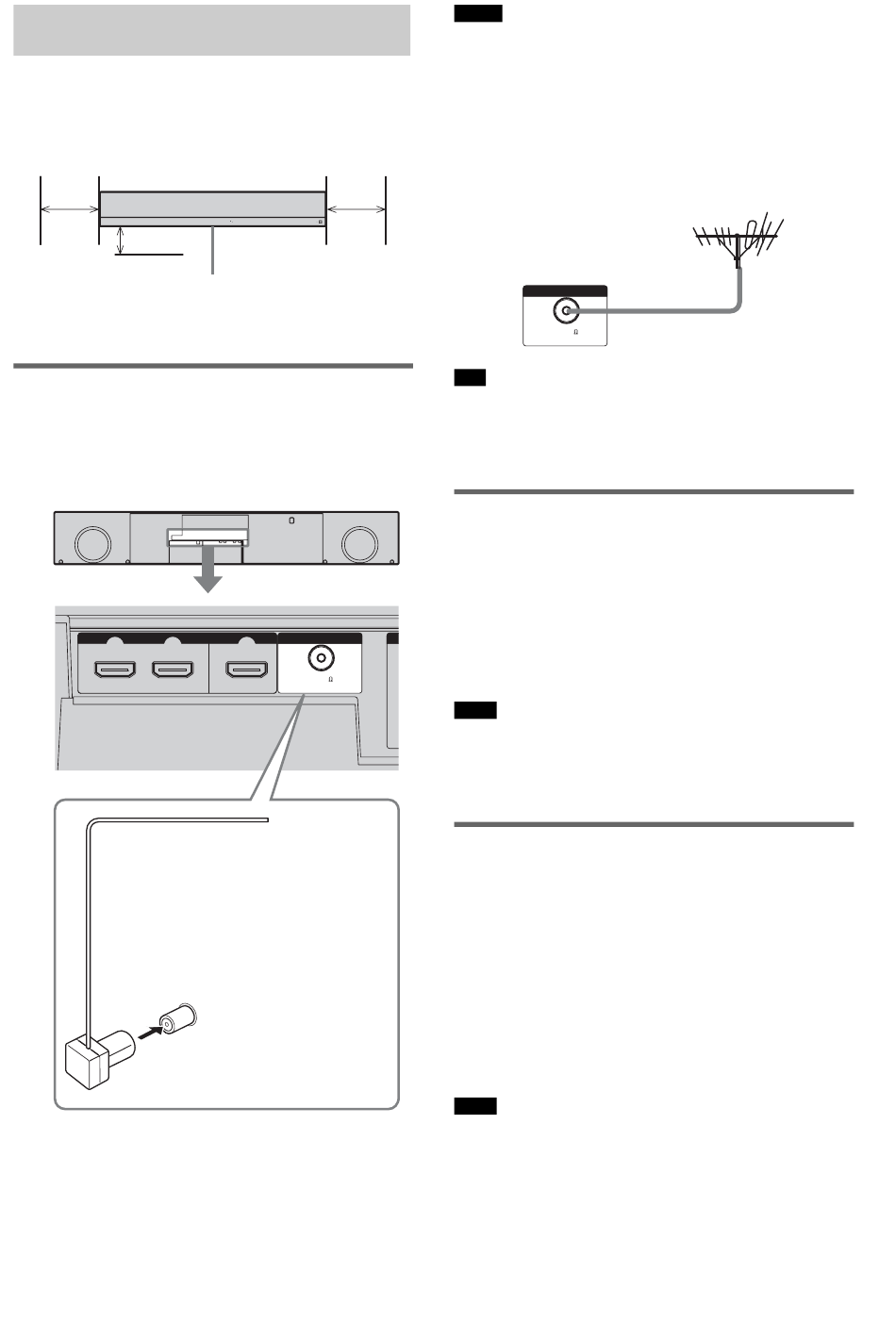

Installing the unit

Install the unit after allowing for a space of 300
7
mm (11 / inches) or more on the right and left
8
from the wall.
A
B
Subwoofer
A 300 mm (11 7 / inches)
8
B 50 mm (2 inches)
Connecting the FM wire
antenna (aerial)
Connect the FM wire antenna (aerial) to the FM
75Ω COAXIAL ANTENNA jack.
SAT IN BD/DVD IN
FM wire antenna (aerial) (supplied)
FM 75Ω COAXIAL ANTENNA
jack
8
US
A
MULTI CH MULTI CH
INPUT INPUT - - + + - - + + POWER / HDMI POWER POWER / HDMI POWER
SELECTOR SELECTOR PRESET PRESET VOLUME VOLUME
HDMI ANTENNA
FM 75
TV OUT COAXIAL
Notes
• Adjust the direction of the FM wire antenna (aerial)
for best FM broadcast sound.
• If you attach the FM wire antenna (aerial) to a wall,
select a wall for best reception.
• Do not use the FM wire antenna (aerial) rolled up.
• Be sure to insert the FM wire antenna (aerial) fully
into the jack.
ANTENNA
FM 75
COAXIAL
Tip
• If you have poor FM reception, use a 75-ohm coaxial
cable (not supplied) to connect the unit to an outdoor
FM antenna (aerial).
Connecting the power cord
1
Connect the components to this unit.
For details of connecting the components,
see page 9 to page 13.
2
Connect the power cord of this unit to
the wall outlet.
Note
• Install this system near the wall outlet so that the AC
power cord (mains lead) can be unplugged from the
wall socket immediately in the event of trouble.
Installing this unit
Install the unit after connecting all the
components to the unit.
When installing the unit, allow for a space of at
least 50 mm (2 inches) from the wall and 300
mm (11 7 / inches) or more on the right and left
8
when you install the unit. This is to allow for heat
dissipation, a sufficient surround effect, and to
prevent the TV from falling.
Note
• Do not put a magnetic card (such as a cash card or
commuter pass) close to the speaker. The card may
become unusable because of the magnetism of the
speaker's magnet.
