Switching On The Speed Controller; Important - Reely Raptor 6S Notice D'emploi

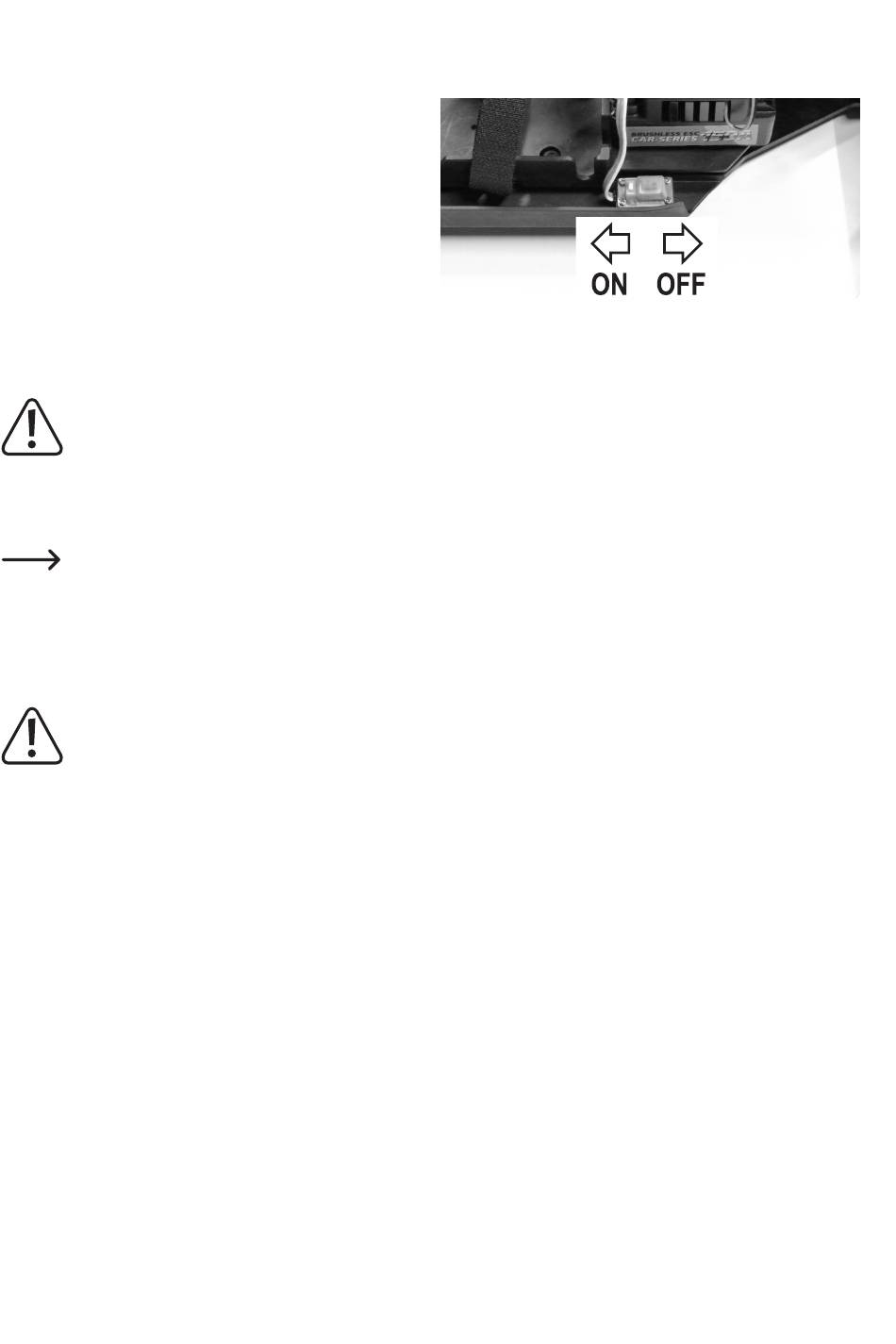

g) Switching on the speed controller
If you have not already done so, switch on the transmitter.
Then turn on the speed controller by moving the slide
switch to the left in the direction of the setup button ("ON"
switch position).
Then wait a few seconds (leave the throttle/brake lever
on the transmitter in the neutral position, do not move it).
During this time, the speed controller will indicate the
number of LiPo cells detected by sound signals and
flashing of the green LED:
• For two 3-cell LiPo rechargeable batteries: 6 sound/flashing signals
• For two 2-cell LiPo rechargeable batteries: 4 sound/flashing signals

Important!

If the number of sound/flashing signals does not match the actual number of cells, the LiPo rechargeable
batteries might be empty. In this case, do not operate the vehicle; otherwise, deep discharge protection (for
example, 3.0 V per cell) may not function properly.
Now, the vehicle is ready for operation.
If the vehicle drive starts, even though the throttle/brake lever on the transmitter is in the neutral position,
adjust the trimming on the transmitter until the motor stops.
If necessary, adjust the trim setting accordingly (see section 10a).
Check that the throttle and steering functions are working correctly. Refer to section 10b) for instructions on how to
program the speed controller.
Important!
Check the programming of the speed controller if low voltage protection is enabled (normally 3.0 V per cell).
When low voltage detection is disabled, LiPo rechargeable batteries are subject to a deep discharge that
destroys them.
In the neutral position, both LEDs are off. When driving forwards or in reverse, a red LED goes on; when driving
forwards and at full throttle, a green LED goes on as well.
49
