2
Instructions and safety regulations (personal protection)
The instructions and safety regulations must be read carefully and followed to avoid endangering personal health and safety. If
there is any doubt over the meaning of the instructions, please contact your nearest agent.

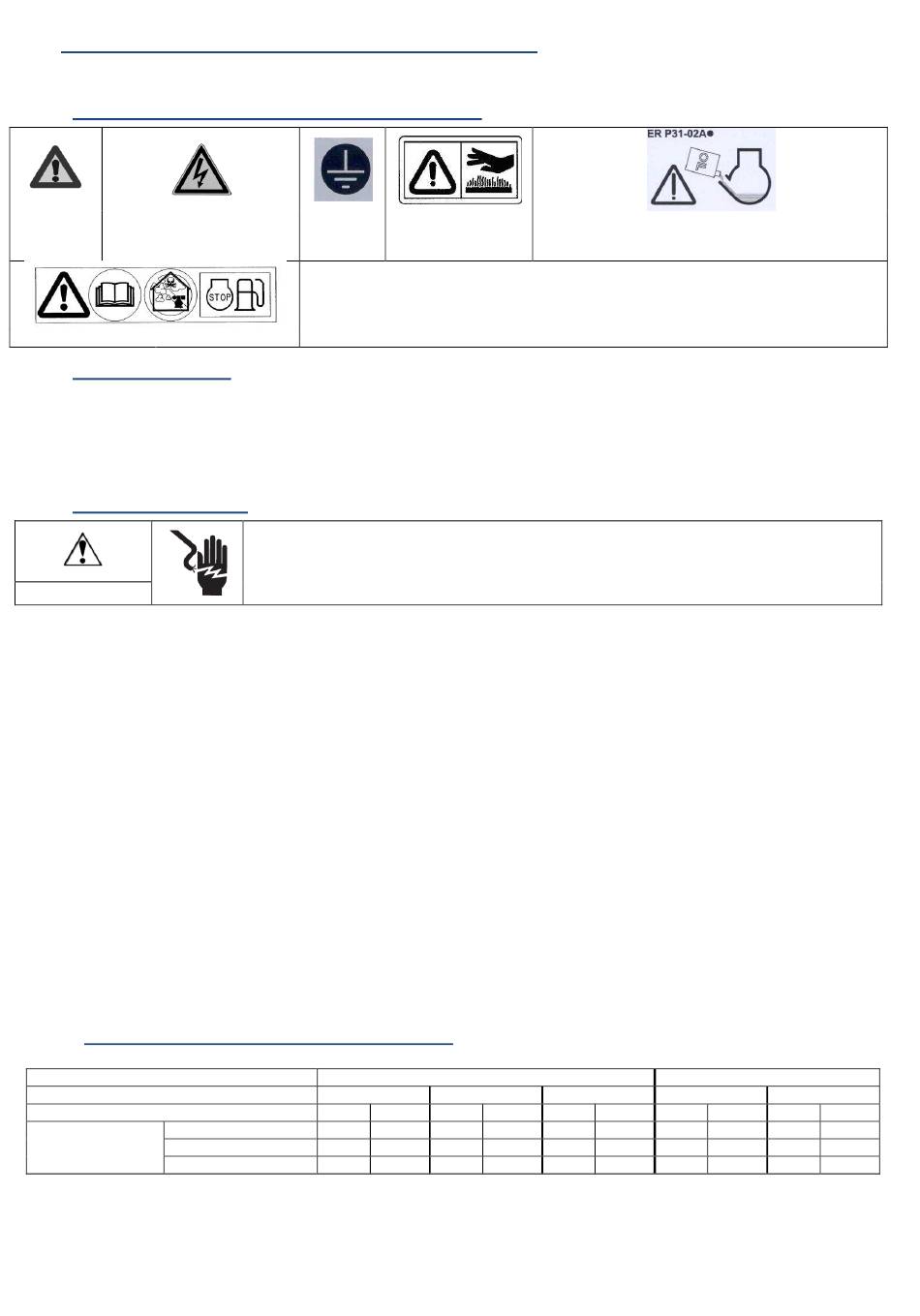

2.1
Meaning of the pictograms on the generating set
Danger:
Danger
risk of electric shock
1
2
2.2
General guidelines
Generating sets in the general public (non-professional) range are reserved solely for domestic use; they should not be used for
professional work.
Never let other people use the generating set without having given them all the necessary instructions beforehand. Never allow a
child to touch the generating set, even when switched off, and do not operate the generating set when animals are in the vicinity
(fear, disturbance, etc.).
In all cases, respect the local regulations currently in place concerning the use of generating sets.
2.3
Risk of electrocution
DANGER
For all connections, use flexible, strong rubber-sheathed cable which complies with standard IEC 60245-4 or equivalent cables, and
ensure that they are kept in perfect condition. Adhere to the cable lengths indicated in the table in the paragraph entitled "Cable
sizes". Connect class I equipment to the generating set using a cable equipped with a PE protective conductor (green/yellow); this
protective conductor is not required for class II equipment. Only use one class I electrical device per socket. Depending on the
conditions of use (A, B or C), also apply the following protective measures:
A - If the generating set is not equipped with an integrated differential protection device at delivery (standard version with insulated
neutral on the generating set's earth terminal):
- Use a differential device calibrated to 30mA at the output of each of the generating set's socket (place each device at least 1m
from the generating set, protecting it from weather conditions).
- If one or more mobile or portable devices are used occasionally, the generating set does not need to be earthed.
B - If the generating set is equipped with an integrated differential protection device at delivery (standard version with alternating
neutral connected to the generating set's earth terminal - for use with TT or TN systems):
- When supplying a temporary or semi-permanent installation (work site, show, fairground, etc.), earth the generating set*.
- When supplying a fixed installation (e.g. as backup for mains outages), the generating set must be connected by a qualified
electrician in accordance with the regulations applicable at the installation site.
C- Mobile applications (e.g. generating set installed on a moving vehicle)
The generating sets are intended to operate while stationary. They may not be installed on a vehicle or other mobile equipment
unless a study has been carried out analysing the various installation and usage specifications. It is prohibited to use the
generating set whilst it is in motion. If earthing is not possible, connect the generating set's earth terminal to the vehicle earth.
Never touch stripped cables or disconnected connectors. Never handle a generating set with wet hands or feet. Never expose the
equipment to liquid splashes or rainfall, and do not place it on wet ground.
If you are in any doubt regarding installation, please contact your nearest agent.
* To earth the generating set: fit a 10 mm
set 1 metre into the ground
2.3.1
Selecting the connection cables (cable cross section)
dhere to the cross sections and lengths recommended in this table during installation or when using electrical extensions.
Generating set type:
Generating set socket type:
Recommended cable cross section
Length of
cable used
101 to 150 m*
*This cable length is the maximum permitted length, and must not be exceeded.
Installation method = cables on raceway or non-drilled tablet/Permitted drop in voltage = 5%/Multi-core conductors/Cable type PVC
70°C (e.g. H07RNF)/Ambient temperature =30°C.
Earth
DANGER:
1 - Refer to the documentation accompanying the generating set.
2 - Emission of toxic exhaust gases. Do not use in a confined or badly ventilated area.
3 - Stop the engine before filling with fuel.
3
RISK OF ELECTROCUTION
Generating sets supply electrical current while operating; comply with the applicable
legislation as well as the installation and usage recommendations given in this manual.
Do not connect the generating set directly to other power source (e.g. mains); install a
source inverter.
2
copper wire to the generating set's earth terminal and to a galvanised steel earthing rod
10 A
mm²
0 to 50 m
4
51 to 100 m
10
10
Warning: oil is not supplied with the generating set.
Danger:
risk of burns
Single phase
16 A
AWG
mm²
AWG
mm²
10
6
9
7
10
7
7
16
5
Before starting,
check the oil level.
Three-phase
32 A
10 A
AWG
mm²
AWG
10
7
1.5
14
25
3
2.5
12
35
2
4
10
16 A
mm²
AWG
2.5
12
4
10
6
9
