If the thermal transmitter is going to be put in the bathroom or toilet, please respect the safety
-
measurements described in the Fig. 6 to avoid electric risks (See Fig. 6).
Place the template on the floor(follow the instructions in the template) and mark the 4 points
-
existing in the template in such a way that the 4 positions get marked on the wall (Fig.7). (Keep
the template for future reference or change of place of the transmitter)
- Take out the 4 cleats (diameter 8 mm) from the bag of accessories, the 4 5,5 x 38 mm screws
and the 2 6 x 40 mm screws.
- Make the 4 bores in the 4 points made on the wall to introduce the 4 cleats of 8 mm.
- Screw the 2 supports with the four 5,5 x 38 mm screws in such a way that the supports are in
the way as indicated in Fig. 8.

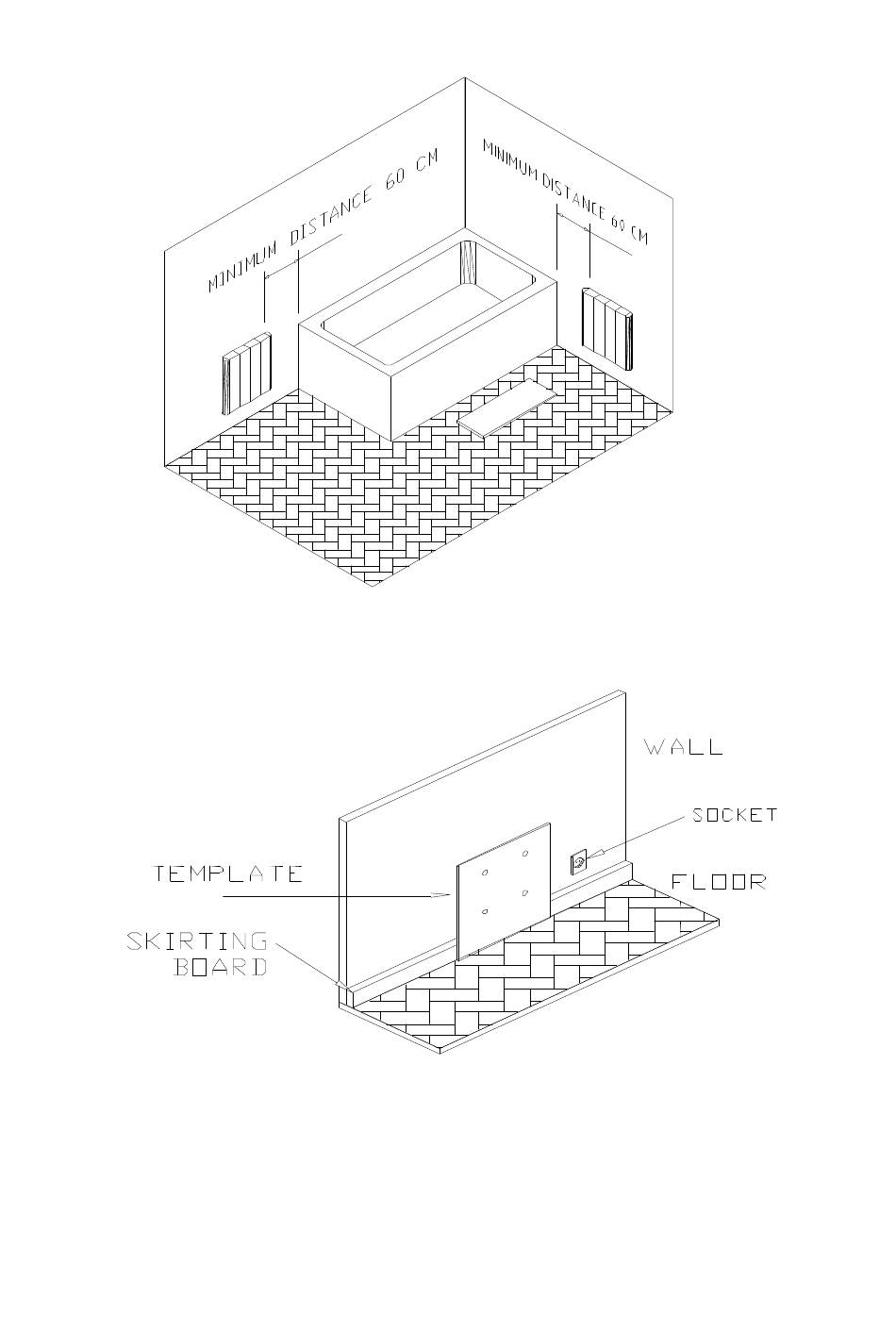

FIG. Nº. 7
41
FIG. Nº. 6
.
